FRONT CALIPERS
TS250X 1989 (K) (E02 E16 E21 E22 E24)

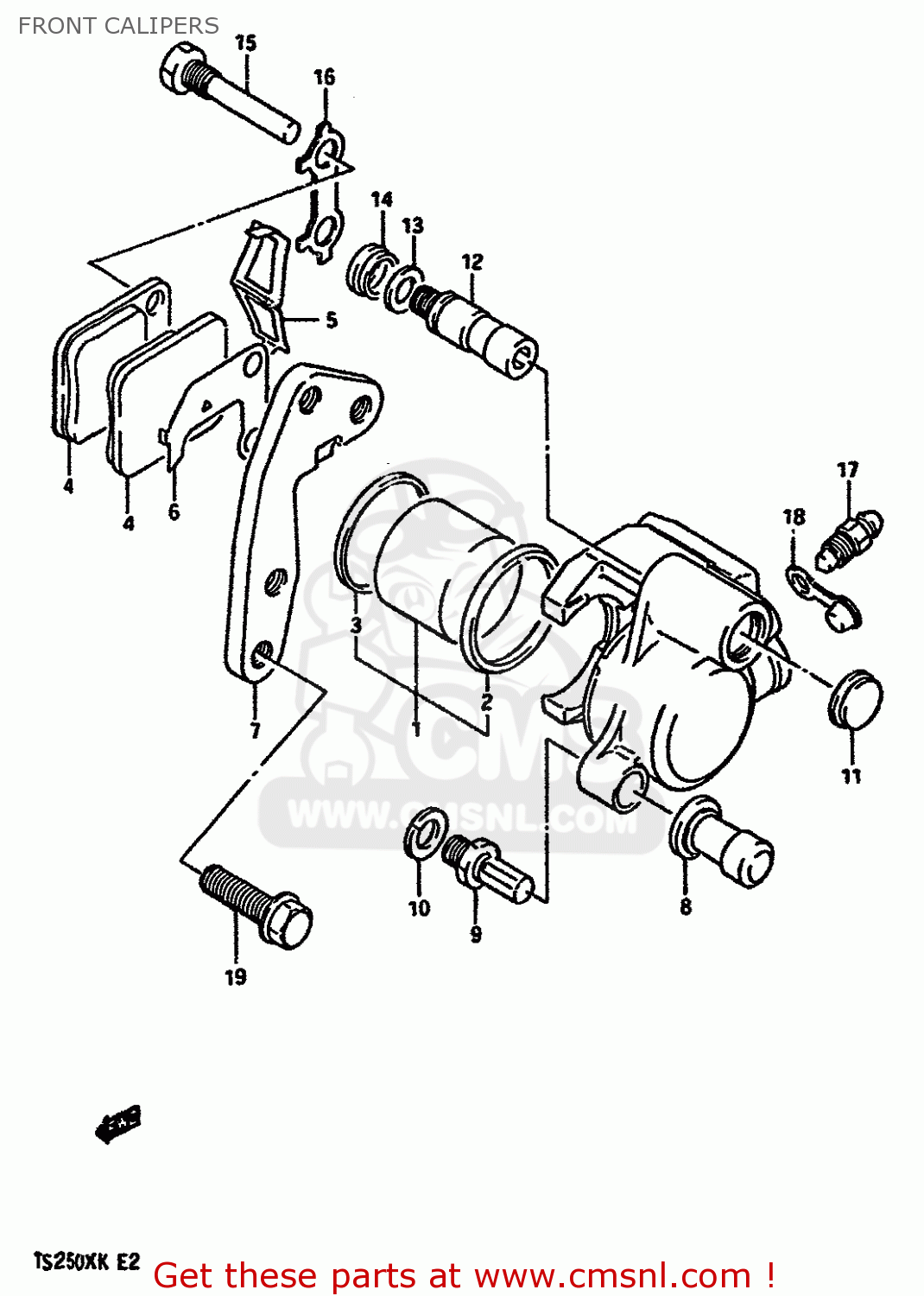

Front calipers diagram TS250X 1989 (K) (E02 E16 E21 E22 E24)
FRONT CALIPERS TS250X 1989 (K) (E02 E16 E21 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
0
5930013A11
ref: 0
MODEL E/G/H,MODEL J/
CALIPER ASSEMBLY,LEFT
€ 275.00
0
5930013A20
ref: 0
MODEL J/K
CALIPER ASSEMBLY,LEFT
€ 275.00
1
5930013810
ref: 1
PISTON SET,CALIPERS
€ 40.00
2
5910713A00
ref: 2
SEAL,PISTON
€ 11.00
3
5910813A00
ref: 3
BOOT,PISTON
€ 11.00
4-1
5934013A00
ref: 4-1
MODEL E/G/H,MODEL J/
PAD
€ 43.00
4-2
5934044A00
ref: 4-2
MODEL J/K
PAD
€ 43.00
5
5931513A00
ref: 5
SPRING,PAD
€ 4.50
6
5937113A00
ref: 6
SHIM
€ 5.00
7
5935113A01
ref: 7
BRACKET
€ 29.50
8
5938613A00
ref: 8
BOOT
€ 6.50
9
5938213A00
ref: 9
BOLT,PIN
€ 6.50
10
5931413A00
ref: 10
WASHER,WAVE
€ 2.00
11
5938413A00
ref: 11
DUST SEAL
€ 5.00
12
5930513A01
ref: 12
PIN,SLIDE
€ 10.50
13
5930613A00
ref: 13
SPRING,FRICTION
€ 2.50
14
5930313A00
ref: 14
BOOT,PIN
€ 5.00
15
5934513A00
ref: 15
PIN,HANGER
€ 6.00
16
5934613A00
ref: 16
WASHER
€ 2.50
17
5912101A00
ref: 17
BLEEDER
€ 8.50
18
5912201A00
ref: 18
CAP,BLEEDER
€ 4.50
19
0151708258
ref: 19
BOLT
€ 2.50
