LEFT HANDLE SWITCH (MODEL K E21,E24)

TS250X 1989 (K) (E02 E16 E21 E22 E24)

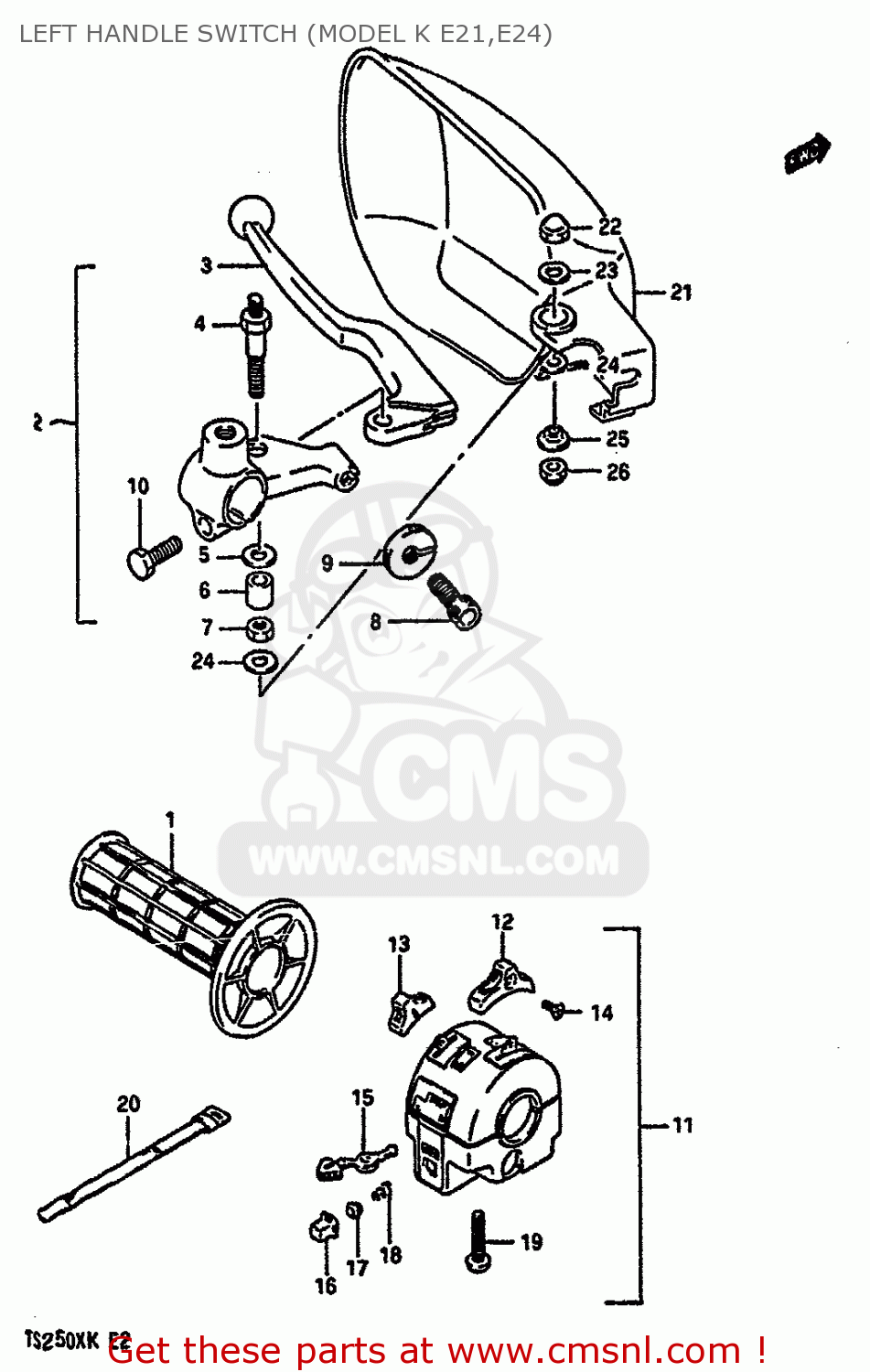

Left handle switch (model k e21,e24) diagram TS250X 1989 (K) (E02 E16 E21 E22 E24)

LEFT HANDLE SWITCH (MODEL K E21,E24) TS250X 1989 (K) (E02 E16 E21 E22 E24)
LEFT HANDLE SWITCH (MODEL K E21,E24) TS250X 1989 (K) (E02 E16 E21 E22 E24)
LEFT HANDLE SWITCH (MODEL K E21,E24) TS250X 1989 (K) (E02 E16 E21 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
5721140201
ref: 1
GRIP,LEFT
5721140201
€ 11.00
2
5750013A40
ref: 2
LEVER ASSY,CLUTCH
€ 0.00
3
5762026500
ref: 3
LEVER,CLUTCH
5762026500
€ 28.50
4
5753144B00
ref: 4
BOLT,LEVER SET
5753144B00
€ 6.50
5
5753344B00
ref: 5
WASHER,LEVER SET
5753344B00
€ 2.50
6
5753244B00
ref: 6
SPACER,LEVER SET
5753244B00
€ 3.50
7
0831921065
ref: 7
NUT
0831921065
€ 2.50
8
5744113A00
ref: 8
ADJUSTER,CABLE
5744113A00
€ 4.00
9
5744244400
ref: 9
NUT,CABLE ADJUSTER LOCK
5744244400
€ 4.00
10
0110706205
ref: 10
BOLT
0110706205
€ 2.00
11-1
3740001A00
ref: 11-1
E21
SWITCH ASSY,HANDLE LH
3740001A00
€ 108.00
11-2
3740001A10
ref: 11-2
E24
SWITCH ASSY,HANDLE LH
3740001A10
€ 130.00
12
3741145012
ref: 12
KNOB,LIGHTING SWITCH
3741145012
€ 4.50
13
3742145012
ref: 13
KNOB,DIMMER SWITCH
3742145012
€ 5.50
14
0212203068
ref: 14
SCREW
0212203068
€ 1.00
15
3751345011
ref: 15
KNOB,TURNSIGNAL
3751345011
€ 6.50
16
5737145000
ref: 16
BUTTON,HORN
5737145000
€ 3.00
17
5737245000
ref: 17
CONTACT
5737245000
€ 3.00
18
5738245000
ref: 18
SPRING
5738245000
€ 2.50
19
0211205257
ref: 19
SCREW
0211205257
€ 2.00
20
0940712402
ref: 20
CLAMP(L:120)
0940712402
€ 3.00
21-1
5754115A0130H
ref: 21-1
COVER,KNUCKLE,LH (WHITE)
5754115A0130H
€ 25.50
21-2
5754115A0125Y
ref: 21-2
COVER,KNUCKLE LH (YELLOW)
€ 25.50
21-3
5754115A0121C
ref: 21-3
COVER,KNUCKLE LH (BLACK)
€ 25.50
22
0831311065
ref: 22
NUT 6MM
0831311065
€ 2.00
23
0916006102
ref: 23
WASHER (6.5X20X1.6)
€ 2.00
24
0916006069
ref: 24
WASHER
0916006069
€ 2.00
25
0916906055
ref: 25
WASHER
0916906055
€ 2.00
26
0831921065
ref: 26
NUT
0831921065
€ 2.50
