RIGHT HANDLE SWITCH (MODEL K E21,E24)

TS250X 1989 (K) (E02 E16 E21 E22 E24)

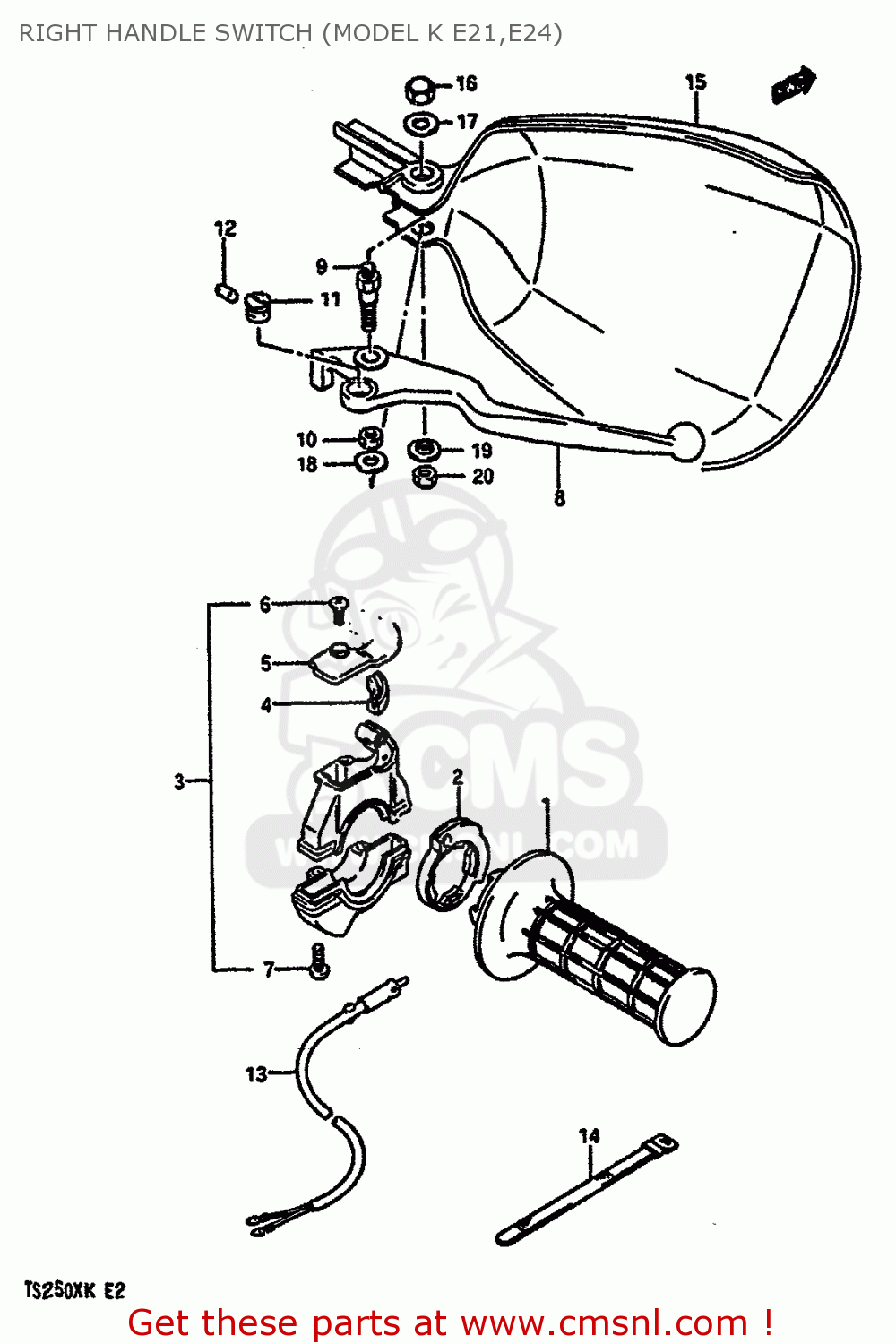

Right handle switch (model k e21,e24) diagram TS250X 1989 (K) (E02 E16 E21 E22 E24)

RIGHT HANDLE SWITCH (MODEL K E21,E24) TS250X 1989 (K) (E02 E16 E21 E22 E24)

RIGHT HANDLE SWITCH (MODEL K E21,E24) TS250X 1989 (K) (E02 E16 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

5711014300
ref: 1

GRIP,THROTTLE

€ 25.00

2

5711420410
ref: 2

ROTOR,THROTTLE GRIP

€ 6.00

3

5710020411
ref: 3

CASE ASSY,THROTTLE

€ 53.50

4

5712220410
ref: 4

GUIDE PIECE,THROTTLE

€ 4.50

5

5712920411
ref: 5

COVER,THROTTLE CASE

€ 8.50

6

0213204065
ref: 6

SCREW

€ 2.50

7

0211205168
ref: 7

SCREW

€ 2.50

8

5742113A00
ref: 8

LEVER,BRAKE

€ 19.00

9

5743115A00
ref: 9

BOLT,BRAKE LEVER PIVOT

€ 10.00

10

0831921065
ref: 10

NUT

€ 2.50

11

5744313A00
ref: 11

ADJUSTER

€ 8.00

12

5744413A00
ref: 12

ROD,PUSH

€ 6.50

13

5746013001
ref: 13

SWITCH ASSY,STOP

€ 18.00

14

0940712402
ref: 14

CLAMP(L:120)

€ 3.00

15-1

5734115A0130H
ref: 15-1

COVER,KNUCKLE RH (WHITE)

€ 34.00

15-2

5734115A0125Y
ref: 15-2

COVER,KNUCKLE RH (YELLOW)

€ 34.00

15-3

5734115A0121C
ref: 15-3

COVER,KNUCKLE RH (BLACK)

€ 34.00

16

0831311065
ref: 16

NUT 6MM

€ 2.00

17

0916006102
ref: 17

WASHER (6.5X20X1.6)

€ 2.00

18

0916006069
ref: 18

WASHER

€ 2.00

19

0916906055
ref: 19

WASHER

€ 2.00

20

0831921065
ref: 20

NUT

€ 2.50
