CARBURETOR
TS250X 1989 (K) (E02 E16 E21 E22 E24)

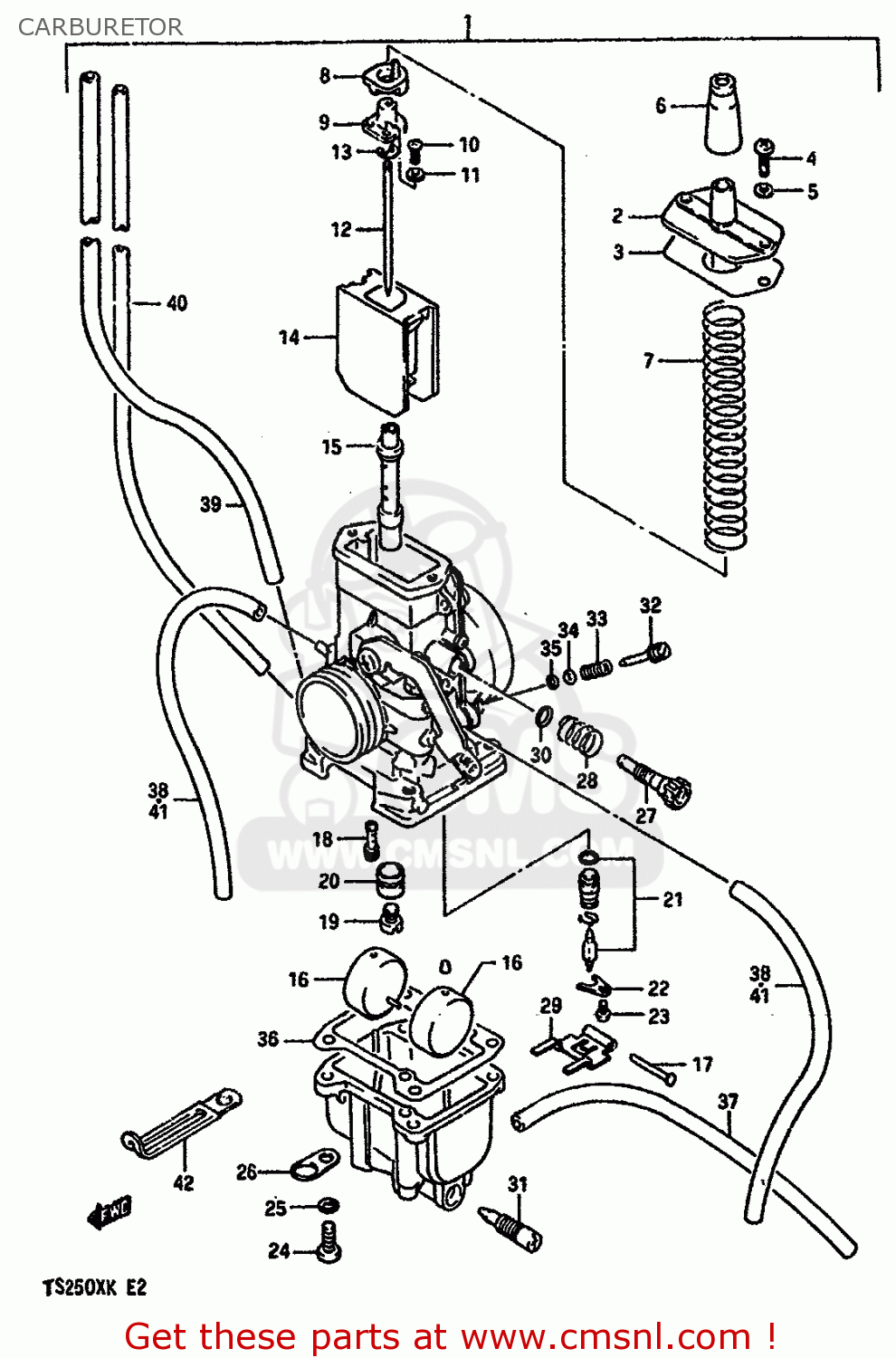

Carburetor diagram TS250X 1989 (K) (E02 E16 E21 E22 E24)
CARBURETOR TS250X 1989 (K) (E02 E16 E21 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
1320013A01
ref: 1-1
MODEL E
CARBURETOR ASSY
€ 335.00
1-2
1320013A20
ref: 1-2
MODEL G,TO 13200-13A
CARBURETOR ASSY
€ 270.00
1-3
1320013A30
ref: 1-3
MODEL H/J/K
CARBURETOR ASSY
€ 270.00
2
1326113A00
ref: 2
CAP,TOP
€ 16.00
3
1326614500
ref: 3
GASKET,TOP (NAS)
€ 4.00
4
0211204126
ref: 4
SCREW
€ 1.50
5
0832121046
ref: 5
LOCK WASHER
€ 2.00
6
1368133010
ref: 6
CAP,CABLE ADJUSTER
€ 8.00
7
1357316700
ref: 7
SPRING
€ 6.00
8
1362916700
ref: 8
RING
€ 11.50
9
1339816700
ref: 9
JOINT
€ 7.00
10
0211203106
ref: 10
SCREW
€ 1.50
11
0832121036
ref: 11
LOCK WASHER
€ 1.50
12-1
1338313A00
ref: 12-1
MODEL E
NEELDE,JET (6FJV54-4)
€ 9.50
12-2
1338313A20
ref: 12-2
MODEL G
NEEDLE,JET (KHP24-3)
€ 13.00
12-3
1338313A20
ref: 12-3
MODEL H/J/K
NEEDLE,JET (KHP24-3)
€ 13.00
13
1339410010
ref: 13
CLIP
€ 4.50
14
1355113A00
ref: 14
VALVE,PISTON
€ 66.00
15-1
0949400482
ref: 15-1
MODEL E
JET,NEEDLE (P-4)
€ 19.00
15-2
0949400518
ref: 15-2
MODEL G/H/J/K
JET,NEEDLE (O-8)
€ 26.50
16
1325218620
ref: 16
FLOAT
€ 27.50
17
1325492311
ref: 17
PIN,FLOAT
€ 2.00
18-1
0949265003
ref: 18-1
MODEL E
JET,PILOT (65)
€ 7.50
18-2
0949227003
ref: 18-2
MODEL G/H/J/K
JET,PILOT(27.5)
€ 12.00
19-1
0949125010
ref: 19-1
MODEL E
JET,MAIN(125)
€ 8.50
19-2
0949122016
ref: 19-2
MODEL G/H/J/K
JET,MAIN(110)
€ 7.00
20-1
1333113A00
ref: 20-1
MODEL E
RING,MAIN JET FIXING
€ 5.50
20-2
1333123A00
ref: 20-2
MODEL G/H/J/K
RING
€ 4.50
21
1337014300
ref: 21
VALVE ASSEMBLY,NEEDLE
€ 52.50
22
1337339110
ref: 22
PLATE
€ 6.50
23
0211204066
ref: 23
SCREW
€ 2.00
24
0211205166
ref: 24
SCREW
€ 2.00
25
0832121056
ref: 25
LOCK WASHER
€ 3.00
26
1369313A00
ref: 26
PLATE
€ 3.50
27
1326748700
ref: 27
SCREW,THROTTLE STOP
€ 11.50
28
1326848110
ref: 28
SPRING,PILOT
€ 11.50
29
1325340010
ref: 29
ARM,FLOAT
€ 8.00
30
1327802340
ref: 30
O RING
€ 1.50
31
1324702340
ref: 31
FROM 13247-13A00
PLUG,DRAIN
€ 5.50
32-1
1326948030
ref: 32-1
MODEL E
SCREW,PILOT AIR
€ 10.00
32-2
1326948030
ref: 32-2
MODEL G
SCREW,PILOT AIR
€ 10.00
32-3
1326948030
ref: 32-3
MODEL H/J/K
SCREW,PILOT AIR
€ 10.00
33
1326848700
ref: 33
SPRING,THROTTLE SCREW
€ 3.50
34
1329129900
ref: 34
FROM 13277-44080
WASHER
€ 2.00
35
1329529900
ref: 35
O RING,PILOT AIR SCREW
€ 4.00
36
1325114300
ref: 36
GASKET,FLOAT CAHMBER (NAS)
€ 10.50
37
1368413A10
ref: 37
MODEL E
HOSE (3.5X6.5X150-80)
€ 5.50
38
1368413A10
ref: 38
MODEL E
HOSE (3.5X6.5X150-80)
€ 5.50
39
1368313A00
ref: 39
MODEL E
HOSE
€ 12.50
40
1368418900
ref: 40
MODEL E
HOSE
€ 13.50
41
1368337420
ref: 41
MODEL G/H/J/K
HOSE
€ 5.50
42
0940406402
ref: 42
MODEL E/G/H
CLAMP
€ 2.50
