CLUTCH
TS250X 1989 (K) (E02 E16 E21 E22 E24)

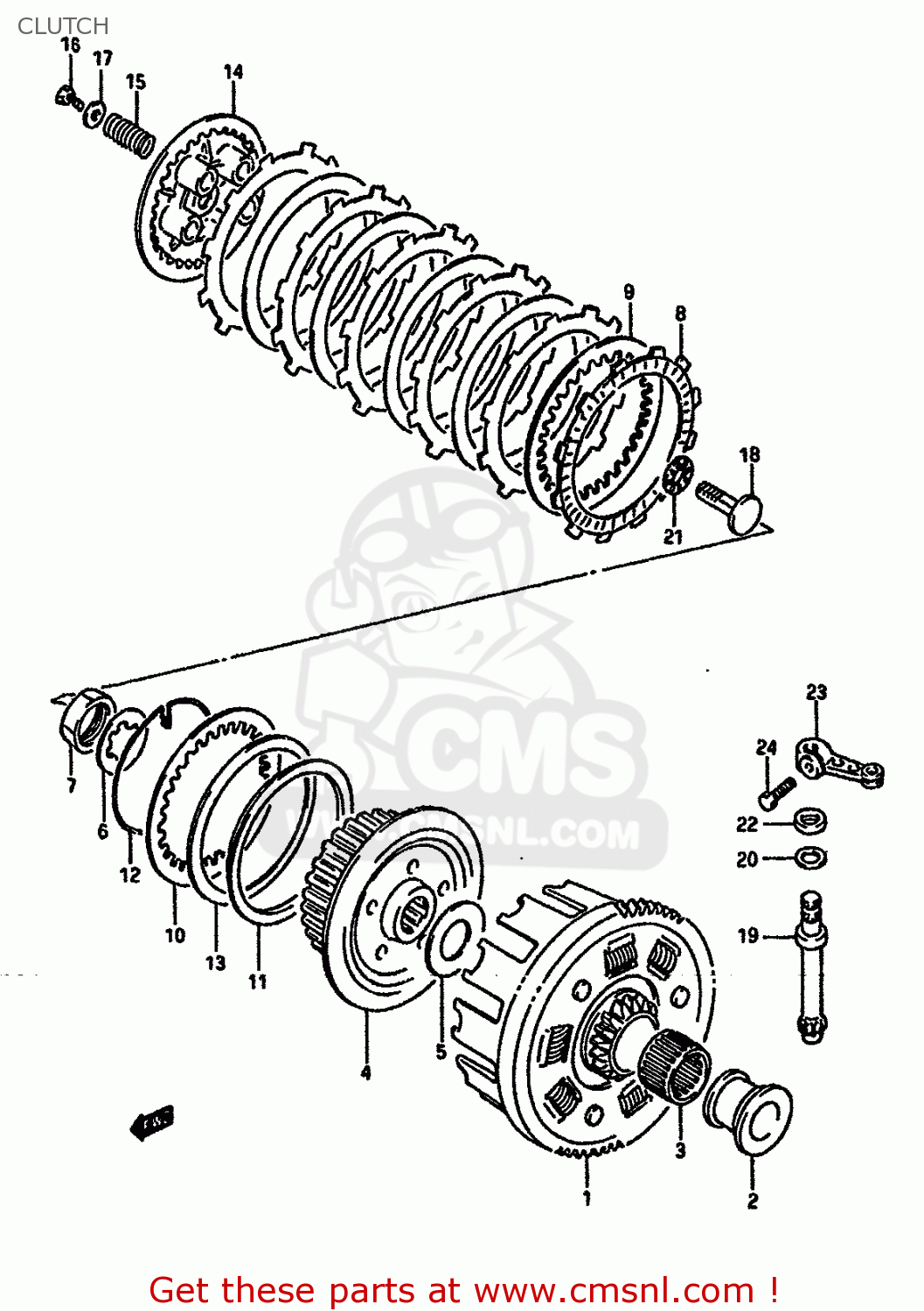

Clutch diagram TS250X 1989 (K) (E02 E16 E21 E22 E24)
CLUTCH TS250X 1989 (K) (E02 E16 E21 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
1
2120013A04
ref: 1
NT:65/18
GEAR,PRIMARY DRIVEN
€ 248.00
2
2125114601
ref: 2
SPACER
€ 34.50
3
0926325044
ref: 3
BEARING(25X30X21.8)
€ 26.50
4
2141113A01
ref: 4
HUB,CLUTCH SLEEVE
€ 64.50
5
0916020054
ref: 5
WASHER(20X35X2)
€ 0.00
6
0916720006
ref: 6
WASHER,LOCK
€ 3.00
7
0914020002
ref: 7
NUT (20MM)
€ 3.50
8
2144113A00
ref: 8
PLATE,CLUTCH DRIVE (NAS)
€ 8.50
9
2145128000
ref: 9
PLATE,CLUTCH DRIVEN (NAS)
€ 4.50
10
2145136200
ref: 10
PLATE,CLUTCH DRIVEN(T:2.0) (NAS)
€ 5.00
11
2147136200
ref: 11
SEAT,WAVE WASHER
€ 43.50
12
2148139301
ref: 12
RING,STOPPER
€ 5.00
13
0916498001
ref: 13
WASHER
€ 8.50
14
2146204A00
ref: 14
DISC,CLUTCH PRESSURE
€ 48.00
15
0944015020
ref: 15
SPRING
€ 4.00
16
0910005002
ref: 16
BOLT(5X16)
€ 2.00
17
0916005017
ref: 17
WASHER (5.5X16X1.2)
€ 2.50
18
2316513A00
ref: 18
RACK,CLUTCH RELEASE
€ 21.00
19
2326113A01
ref: 19
PINION,CLUTCH RELEASE
€ 21.00
20
0916012035
ref: 20
WASHER (12X17X1)
€ 2.00
21
0926310002
ref: 21
BEARING(10X22X2.8)
€ 8.50
22
0928510004
ref: 22
SEAL,OIL(10X17X5)
€ 3.50
23
2327114101
ref: 23
ARM,CLUTCH RELEASE
€ 34.50
24
0110706167
ref: 24
BOLT
€ 3.00
