TRANSMISSION
TS250X 1989 (K) (E02 E16 E21 E22 E24)

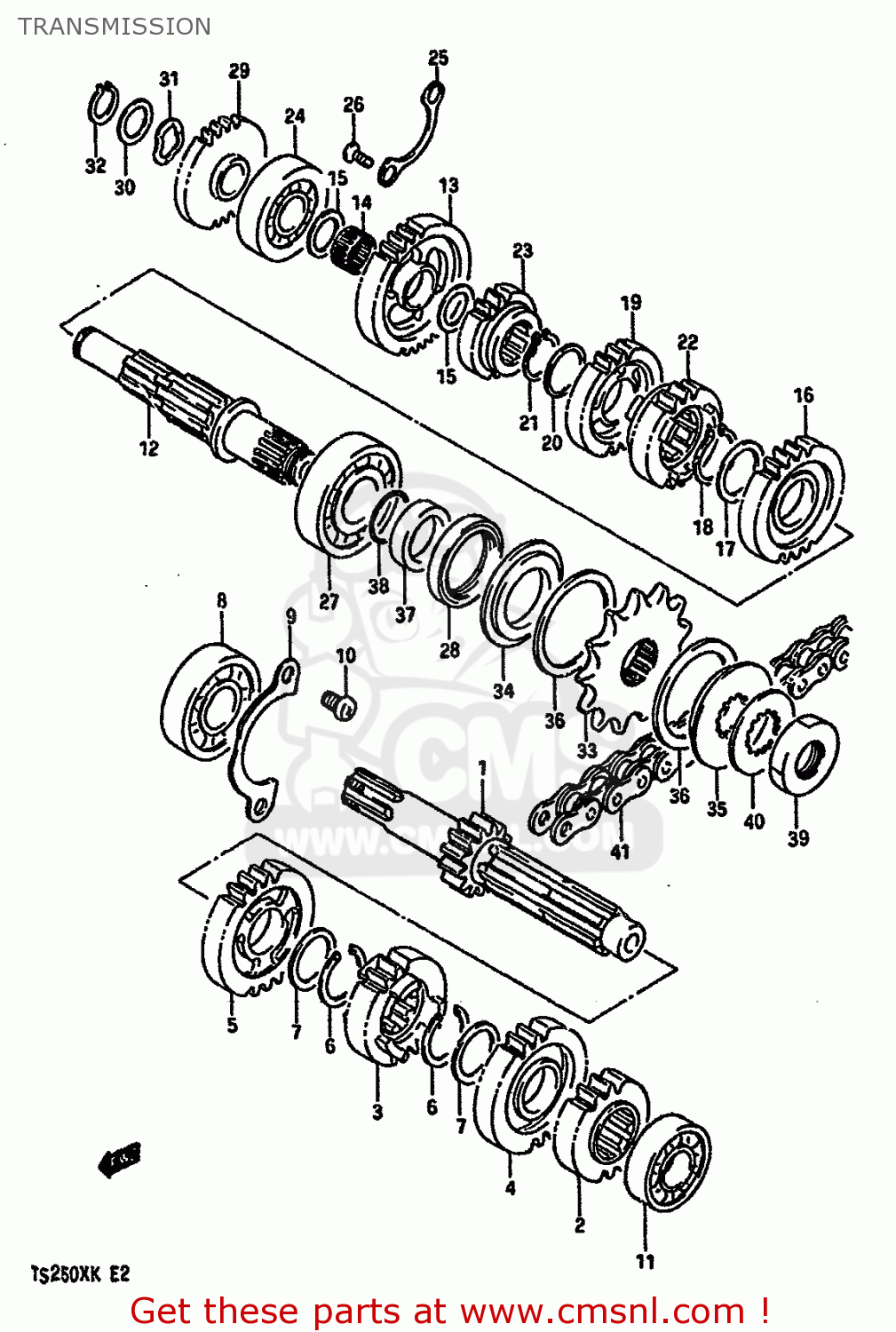

Transmission diagram TS250X 1989 (K) (E02 E16 E21 E22 E24)
TRANSMISSION TS250X 1989 (K) (E02 E16 E21 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
1
2412113A01
ref: 1
COUNTERSHAFT (NT:13)
€ 134.00
2
2422113A00
ref: 2
GEAR,2ND DRIVE
€ 62.50
3
2423113A00
ref: 3
GEAR,3RD DRIVE (NT:19)
€ 66.00
4
2424113A01
ref: 4
GEAR,4TH DRIVE (NT:22)
€ 58.50
5
2425113A00
ref: 5
GEAR,5TH DRIVE (NT:24)
€ 44.00
6
0938022006
ref: 6
CIRCLIP
€ 3.00
7
0822122285
ref: 7
SHIM
€ 3.00
8
0926220073
ref: 8
BEARING(20X52X15)
€ 19.00
9
2474113A00
ref: 9
RETAINER,CENTER SHAFT BEARING
€ 5.50
10
0211206128
ref: 10
SCREW 6X12
€ 2.00
11
0926217023
ref: 11
BEARING(17X40X12)
€ 14.00
12
2413113A10
ref: 12
DRIVESHAFT
€ 68.00
13
2431113A00
ref: 13
GEAR,1ST DRIVEN (NT:31)
€ 46.50
14
0926317004
ref: 14
BEARING(17X21X9.8)
€ 7.00
15
0916017031
ref: 15
WASHER (17X26X1)
€ 2.50
16
2432013A00
ref: 16
GEAR,2ND DRIVEN (NT:24)
€ 61.50
17
0822125325
ref: 17
SHIM
€ 2.00
18
0938025003
ref: 18
RING,SNAP
€ 3.00
19
2433113A00
ref: 19
GEAR,3RD DRIVEN(NT:21)
€ 63.00
20
0821122281
ref: 20
SHIM
€ 4.00
21
0833111229
ref: 21
CIRCLIP
€ 2.00
22
2434113A00
ref: 22
GEAR,4TH DRIVEN(NT:19)
€ 81.50
23
2435113A00
ref: 23
GEAR,5TH DRIVEN(NT:17)
€ 64.50
24
0926217023
ref: 24
BEARING(17X40X12)
€ 14.00
25
2475140300
ref: 25
PLATE,DRIVESHAFT BEARING
€ 5.50
26
0212206128
ref: 26
SCREW
€ 3.00
27
0926222014
ref: 27
BEARING
€ 59.50
28
0928332003
ref: 28
SEAL,OIL(32X42X6)
€ 3.50
29
2626013A10
ref: 29
GEAR,KICK STARTER IDLE
€ 52.00
30
0822117245
ref: 30
SHIM
€ 3.00
31
0916417005
ref: 31
WASHER
€ 1.50
32
0938017001
ref: 32
CIRCLIP
€ 2.00
33
2751113A00
ref: 33
SPROCKET,ENGINE (NT:13)
€ 23.50
34
2751513A00
ref: 34
HOLDER,ENGINE SPROCKET
€ 16.50
35
2751613A00
ref: 35
HOLDER,ENGINE SPROCKET
€ 15.50
36
2751713A00
ref: 36
DAMPER
€ 13.00
37
0918022026
ref: 37
SPACER(22X32X9.5)
€ 10.50
38
0928022003
ref: 38
O RING(D:1.7,ID:22)
€ 2.50
39
0914018009
ref: 39
NUT
€ 6.50
40
0916722012
ref: 40
WASHER,LOCK
€ 1.50
41
2760013A60112
ref: 41
CHAIN ASSEMBLY,DRIVE RK520
€ 125.00
