CUSHION LEVER

TS250X 1989 (K) (E02 E16 E21 E22 E24)

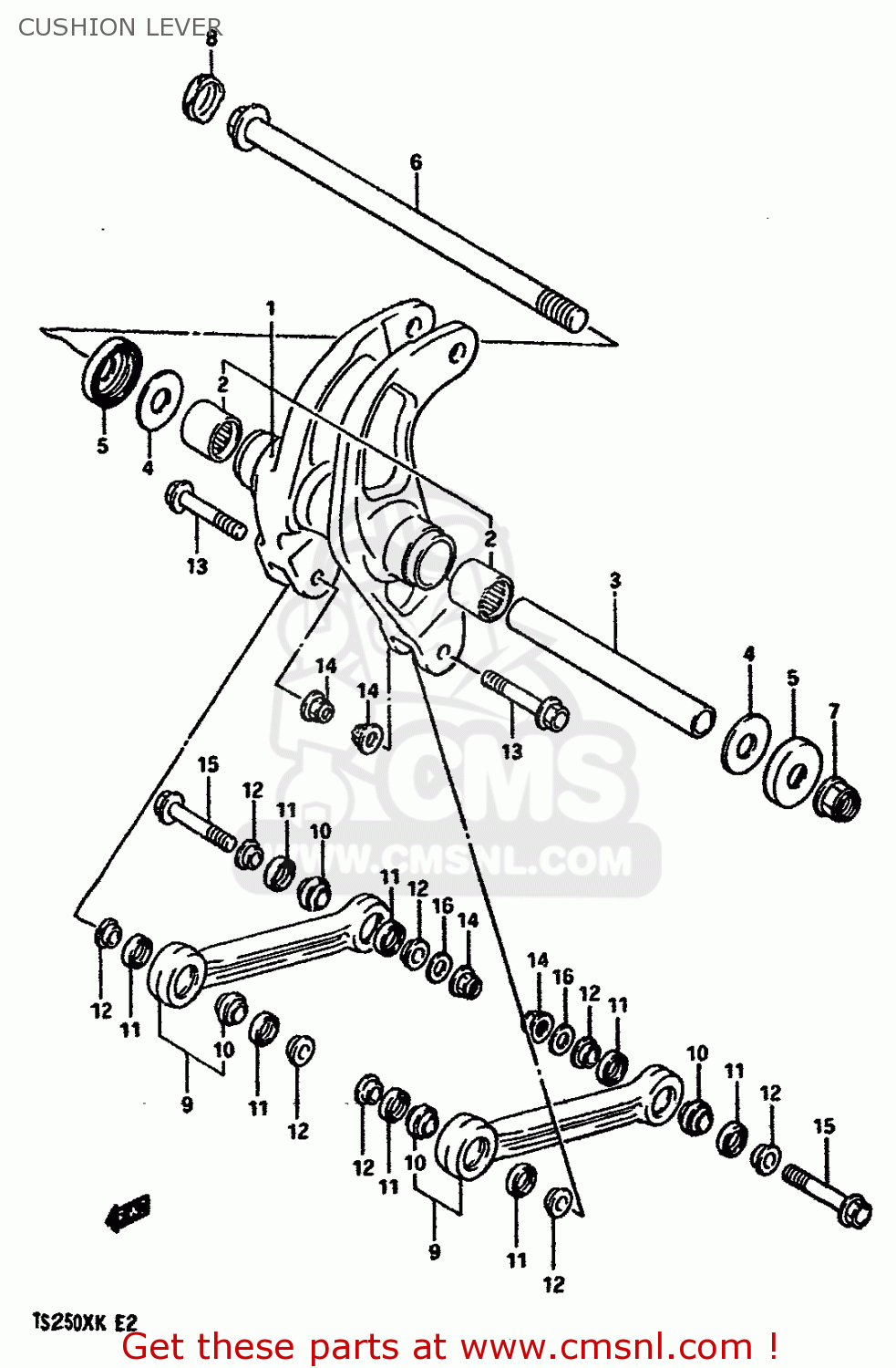

Cushion lever diagram TS250X 1989 (K) (E02 E16 E21 E22 E24)

CUSHION LEVER TS250X 1989 (K) (E02 E16 E21 E22 E24)
CUSHION LEVER TS250X 1989 (K) (E02 E16 E21 E22 E24)
CUSHION LEVER TS250X 1989 (K) (E02 E16 E21 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
6260013871
ref: 1
LEVER SET,REAR CUSHION
€ 0.00
2
0926317018
ref: 2
BEARING(17X25X20)
0926317018
€ 36.00
3
6262313A00
ref: 3
SPACER
€ 0.00
4
0821112283
ref: 4
WASHER
0821112283
€ 3.00
5
6262448700
ref: 5
DUST SEAL,REAR CUSHION,LEFT
€ 5.50
6
6262114105
ref: 6
SHAFT,REAR CUSHION LEVER
6262114105
€ 16.50
7
0831931128
ref: 7
NUT 12MM
0831931128
€ 4.00
8-1
6122213A10019
ref: 8-1
MODEL E/G
CAP,LEVER (BLACK)
€ 0.00
8-2
6122213A1019F
ref: 8-2
MODEL E/G/H/J/K
CAP,LEVER (BLUE)
€ 0.00
9
6260013880
ref: 9
ROD SET,CUSHION LEVER
€ 0.00
10
0926908002
ref: 10
BEARING(8X18X11)
0926908002
€ 39.50
11
6264713A00
ref: 11
DUST SEAL
€ 4.00
12
6268413A00
ref: 12
SPACER
€ 7.50
13
6231313A00
ref: 13
BOLT
€ 2.50
14
0831931087
ref: 14
NUT
0831931087
€ 2.50
15
0910308068
ref: 15
BOLT 8X45
€ 4.50
16
0916008042
ref: 16
MODEL E
WASHER
€ 2.50
