SPEEDOMETER
TS250X 1989 (K) (E02 E16 E21 E22 E24)

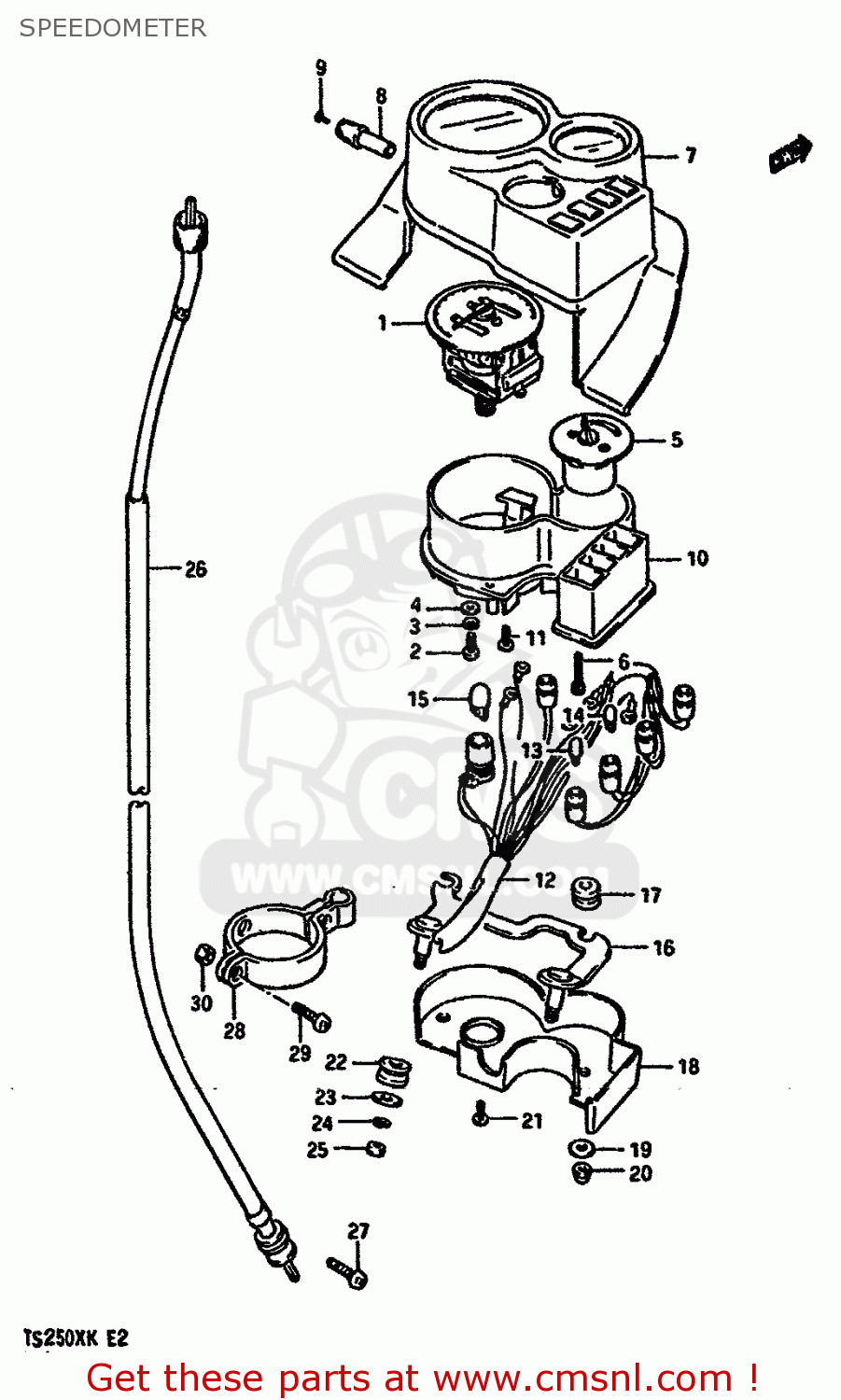

Speedometer diagram TS250X 1989 (K) (E02 E16 E21 E22 E24)
SPEEDOMETER TS250X 1989 (K) (E02 E16 E21 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
3412013A10
ref: 1-1
SPEEDOMETER (KILO)
€ 183.00
1-2
3412013A20
ref: 1-2
SPEEDOMETER (MILE/KILO)
€ 181.50
2
0211204126
ref: 2
SCREW
€ 1.50
3
0832121046
ref: 3
LOCK WASHER
€ 2.00
4
0832221046
ref: 4
WASHER
€ 5.00
5
3442013A00
ref: 5
TEMPERATURE METER
€ 94.00
6
3438309400
ref: 6
SCREW(3X22)
€ 2.50
7-1
3415013A11
ref: 7-1
HOOD,METER
€ 54.00
7-2
3415013A70
ref: 7-2
E17
HOOD,METER
€ 0.00
8
3498013A00
ref: 8
KNOB,TRIP
€ 2.00
9
3498113A00
ref: 9
ROTOR,SPEED
€ 2.00
10
3411113A00
ref: 10
CASE,METER
€ 48.00
11
0354103126
ref: 11
SCREW
€ 0.00
12
3417313A10
ref: 12
SOCKET
€ 0.00
13
0947112103
ref: 13
BULB(12V3W,T6.5)
€ 2.50
14
0947112108
ref: 14
BULB(12V1.7W,T6.5)
€ 2.00
15
0947112028
ref: 15
BULB(12V3.4W,T10)
€ 3.50
16
03495013A00
ref: 16
BRACKET,METER
€ 0.00
17
3418945410
ref: 17
CUSHION,METER
€ 4.00
18
3415213A00
ref: 18
COVER,LOWER
€ 20.50
19
3418145410
ref: 19
WASHER,METER
€ 2.00
20
0831311055
ref: 20
NUT
€ 2.00
21
0354103125
ref: 21
SCREW
€ 0.00
22
3495615100
ref: 22
CUSHION
€ 4.00
23
09160060A6
ref: 23
FROM 09160-06006
WASHER
€ 2.00
24
0832121064
ref: 24
WASHER,LOCK
€ 2.00
25
0831011065
ref: 25
NUT
€ 2.00
26
3491013A01
ref: 26
CABLE ASSY,SPEEDOMETER
€ 87.50
27
0211205165
ref: 27
SCREW
€ 2.00
28
3493813A00
ref: 28
CLAMP,METER CABLE
€ 8.50
29
0211205125
ref: 29
SCREW
€ 1.50
30
0831012055
ref: 30
NUT ,5MM
€ 2.50
