CRANKCASE COVER
TS250X 1989 (K) (E02 E16 E21 E22 E24)

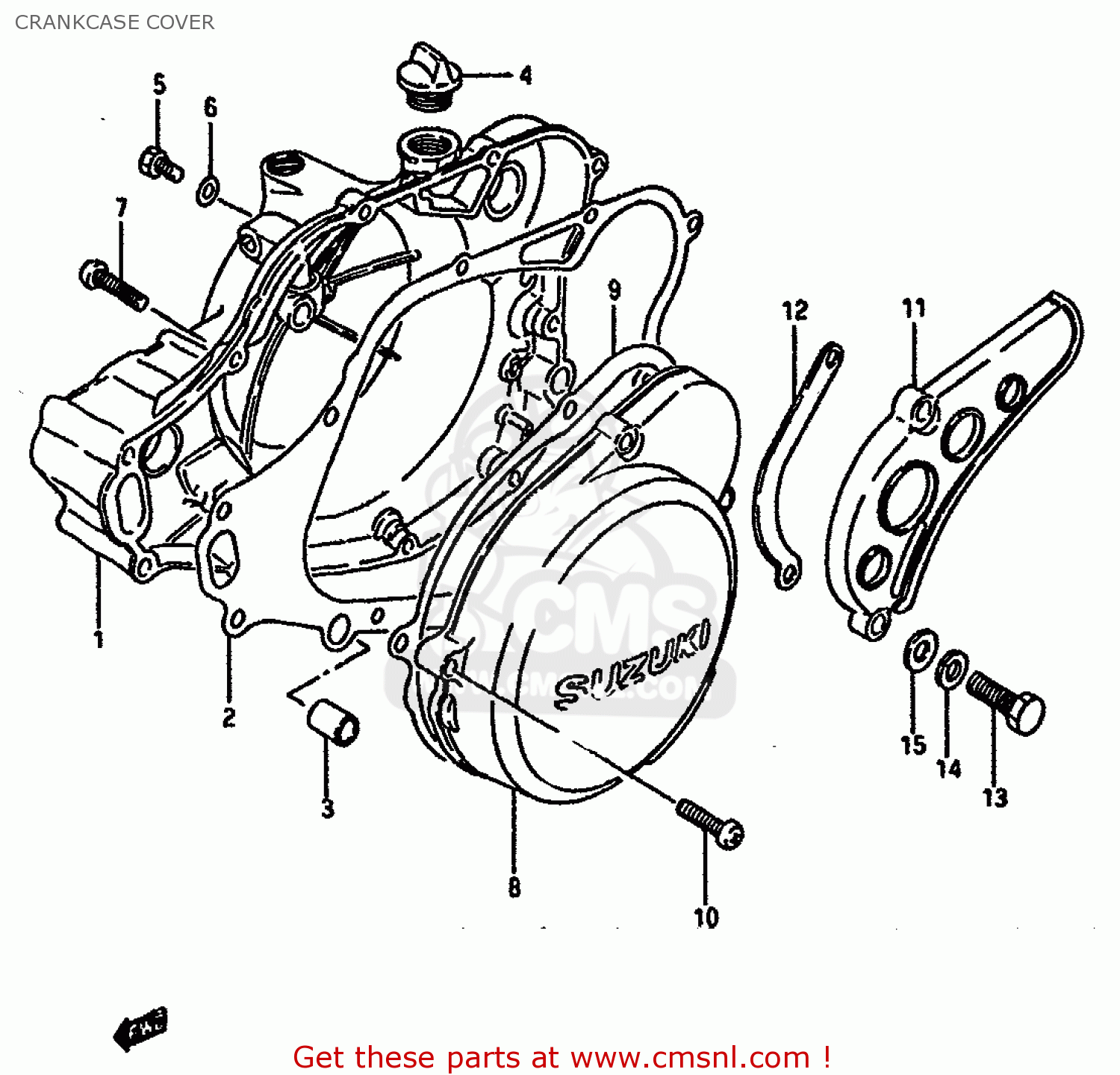

Crankcase cover diagram TS250X 1989 (K) (E02 E16 E21 E22 E24)
CRANKCASE COVER TS250X 1989 (K) (E02 E16 E21 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
1134113A02
ref: 1-1
MODEL E
COVER,CLUTCH
€ 379.00
1-2
1134113A10
ref: 1-2
MODEL G/H/J/K
COVER,CLUTCH
€ 379.00
2-1
1148213A00
ref: 2-1
GASKET,CLUTCH COVER (MCA)
€ 15.00
2-2
1148213A00H17
ref: 2-2
E17
GASKET,CLUTCH COVER (NAS)
€ 15.00
3
0920613001
ref: 3
PIN
€ 2.50
4
0920020810
ref: 4
PLUG SET
€ 8.00
5
0912806004
ref: 5
SCREW(6X10)
€ 1.50
6
0916806001
ref: 6
GASKET(6.2X11X1) (NAS)
€ 1.50
7
0211206255
ref: 7
SCREW
€ 1.50
8-1
1135113A00
ref: 8-1
MODEL E
COVER,MAGNETO
€ 145.50
8-2
1135113A10
ref: 8-2
MODEL G/H/J/K
COVER,MAGNETO
€ 105.00
9
1148313A00
ref: 9
MODEL E
GASKET,MAGNETO COVER (NAS)
€ 4.50
10
0211206255
ref: 10
SCREW
€ 1.50
11-1
1136013A00
ref: 11-1
MODEL E
COVER,SPROCKET
€ 20.50
11-2
1136019A00
ref: 11-2
MODEL G/H/J/K
COVER,SPROCKET
€ 20.50
12
2764113A00
ref: 12
PLATE,FR CHAIN GUIDE
€ 6.00
13
0110708355
ref: 13
BOLT
€ 3.50
14
0832121084
ref: 14
WASHER,LOCK,8.
€ 2.50
15
0832211084
ref: 15
WASHER
€ 1.50
