FRONT FORK (MODEL E)

TS250X 1989 (K) (E02 E16 E21 E22 E24)

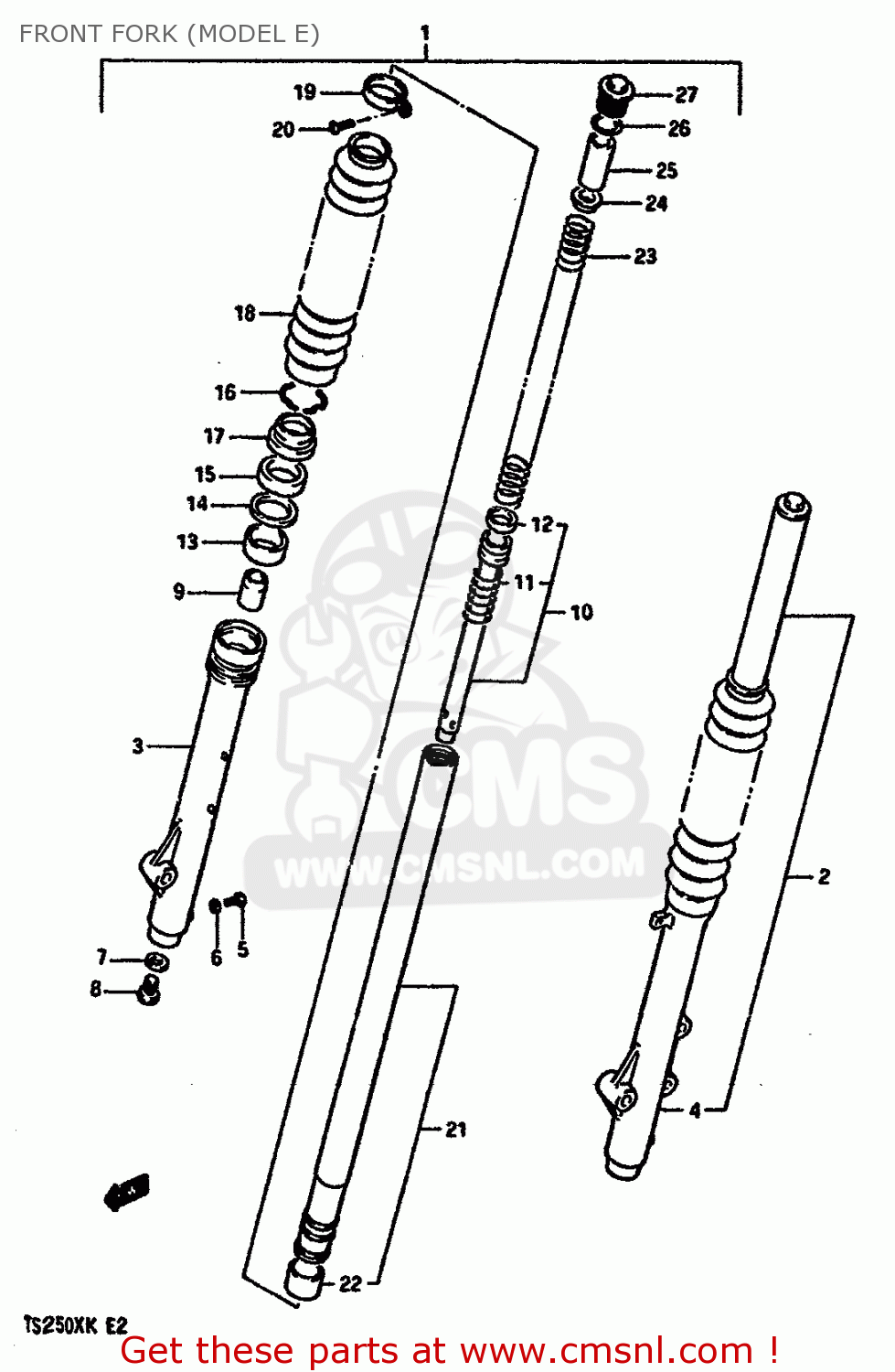

Front fork (model e) diagram TS250X 1989 (K) (E02 E16 E21 E22 E24)

FRONT FORK (MODEL E) TS250X 1989 (K) (E02 E16 E21 E22 E24)
FRONT FORK (MODEL E) TS250X 1989 (K) (E02 E16 E21 E22 E24)
FRONT FORK (MODEL E) TS250X 1989 (K) (E02 E16 E21 E22 E24)
prices are in EUR
ref
part #
description
quantity
1-1
5110313A01019
ref: 1-1
DAMPER ASSY,RH (BLACK)
€ 0.00
1-2
5110313A0119F
ref: 1-2
DAMPER ASSY,RH (BLUE)
€ 500.00
2-1
5110413A00019
ref: 2-1
DAMPER ASSY,LH (BLACK)
€ 0.00
2-2
5110413A0019F
ref: 2-2
DAMPER ASSY,LH (BLUE)
€ 500.00
3
5113113A01
ref: 3
OUTER TUBE,RH
€ 229.00
4
5114113A00
ref: 4
OUTER TUBE,LH
€ 0.00
5
0211204087
ref: 5
SCREW
0211204087
€ 1.50
6
5118303010
ref: 6
GASKET,DRAIN,PLUG (NAS)
5118303010
€ 3.00
7
5114840300
ref: 7
GASKET,CYLINDER (NAS)
5114840300
€ 2.50
8
5114740300
ref: 8
BOLT,CYLINDER
5114740300
€ 5.50
9
5119513A00
ref: 9
PIECE,FRONT FORK OIL LOCK
€ 0.00
10
5114613A00
ref: 10
CYLINDER
€ 0.00
11
5117713A00
ref: 11
SPRING,FORK REBOUND
€ 0.00
12
5119613A00
ref: 12
RING,PISTON
€ 0.00
13
5116714100
ref: 13
METAL,SLIDE
5116714100
€ 7.00
14
5115814100
ref: 14
WASHER(40X50X2.3)
5115814100
€ 2.50
15
5115314140
ref: 15
SEAL,OIL
5115314140
€ 12.50
16
5115640301
ref: 16
RING,STOPPER
5115640301
€ 4.50
17
5117314140
ref: 17
SEAL,DUST
5117314140
€ 10.00
18-1
5157113A00019
ref: 18-1
BOOT (BLACK)
€ 51.00
18-2
5157113A0019F
ref: 18-2
BOOT (BLUE)
5157113A0019F
€ 51.00
19
5157540300
ref: 19
BAND,BOOT
€ 9.00
20
0211204108
ref: 20
SCREW 4X10
€ 2.00
21
5111013A00
ref: 21
INNER TUBE
€ 228.50
22
5112114100
ref: 22
PISTON
5112114100
€ 10.50
23
5117113A00
ref: 23
SPRING
€ 0.00
24
5117240300
ref: 24
GUIDE
5117240300
€ 5.00
25
5117613A00
ref: 25
SPACER,FR FORK SPRING
5117613A00
€ 8.00
26
5111740300
ref: 26
O RING
5111740300
€ 2.50
27
5135113A00
ref: 27
CAP
5135113A00
€ 49.50
