LEFT HANDLE SWITCH (MODEL E,MODEL G E17,E18,E22)

TS250X 1989 (K) (E02 E16 E21 E22 E24)

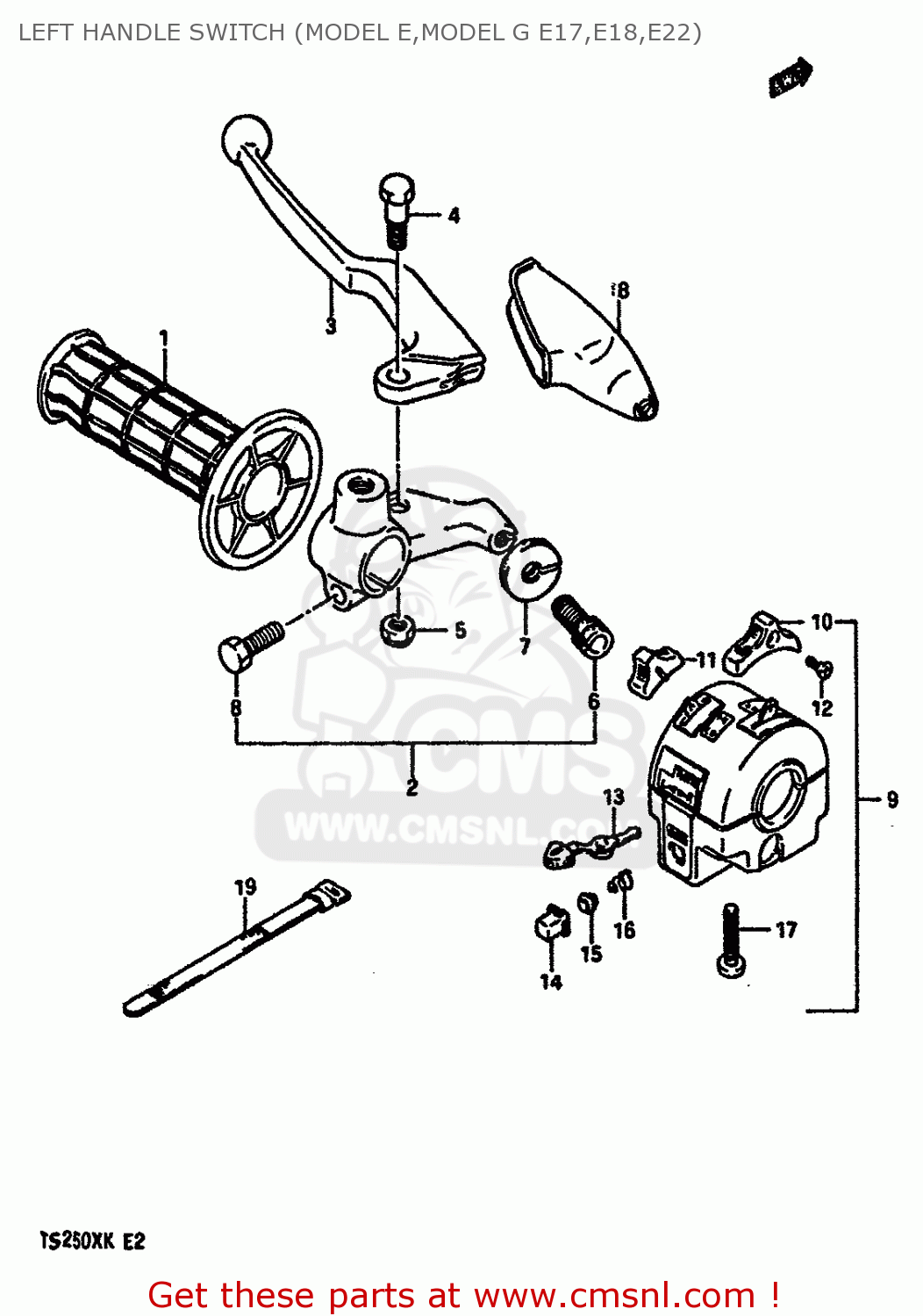

Left handle switch (model e,model g e17,e18,e22) diagram TS250X 1989 (K) (E02 E16 E21 E22 E24)

LEFT HANDLE SWITCH (MODEL E,MODEL G E17,E18,E22) TS250X 1989 (K) (E02 E16 E21 E22 E24)
LEFT HANDLE SWITCH (MODEL E,MODEL G E17,E18,E22) TS250X 1989 (K) (E02 E16 E21 E22 E24)
LEFT HANDLE SWITCH (MODEL E,MODEL G E17,E18,E22) TS250X 1989 (K) (E02 E16 E21 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
5721140201
ref: 1
GRIP,LEFT
5721140201
€ 11.00
2
5750013A00
ref: 2
LEVER ASSY, CLUTCH
5750013A00
€ 52.00
3
5762026500
ref: 3
LEVER,CLUTCH
5762026500
€ 28.50
4
5743133450
ref: 4
BOLT,LEVER
5743133450
€ 8.50
5
0831921065
ref: 5
NUT
0831921065
€ 2.50
6
5744113A00
ref: 6
ADJUSTER,CABLE
5744113A00
€ 4.00
7
5744244400
ref: 7
NUT,CABLE ADJUSTER LOCK
5744244400
€ 4.00
8
0110706205
ref: 8
BOLT
0110706205
€ 2.00
9-1
3740001A10
ref: 9-1
E1,E24
SWITCH ASSY,HANDLE LH
3740001A10
€ 130.00
9-2
3740001A00
ref: 9-2
E2,E4,E17,E18,E21,E2
SWITCH ASSY,HANDLE LH
3740001A00
€ 108.00
10
3741145012
ref: 10
KNOB,LIGHTING SWITCH
3741145012
€ 4.50
11
3742145012
ref: 11
KNOB,DIMMER SWITCH
3742145012
€ 5.50
12
0212203068
ref: 12
SCREW
0212203068
€ 1.00
13
3751345011
ref: 13
KNOB,TURNSIGNAL
3751345011
€ 6.50
14
5737145000
ref: 14
BUTTON,HORN
5737145000
€ 3.00
15
5737245000
ref: 15
CONTACT
5737245000
€ 3.00
16
5738245000
ref: 16
SPRING
5738245000
€ 2.50
17
0211205257
ref: 17
SCREW
0211205257
€ 2.00
18
5734140001
ref: 18
COVER,CLUTCH LEVER
5734140001
€ 7.50
19
0940712402
ref: 19
CLAMP(L:120)
0940712402
€ 3.00
