GEAR SHIFTING
TS250X 1989 (K) (E02 E16 E21 E22 E24)

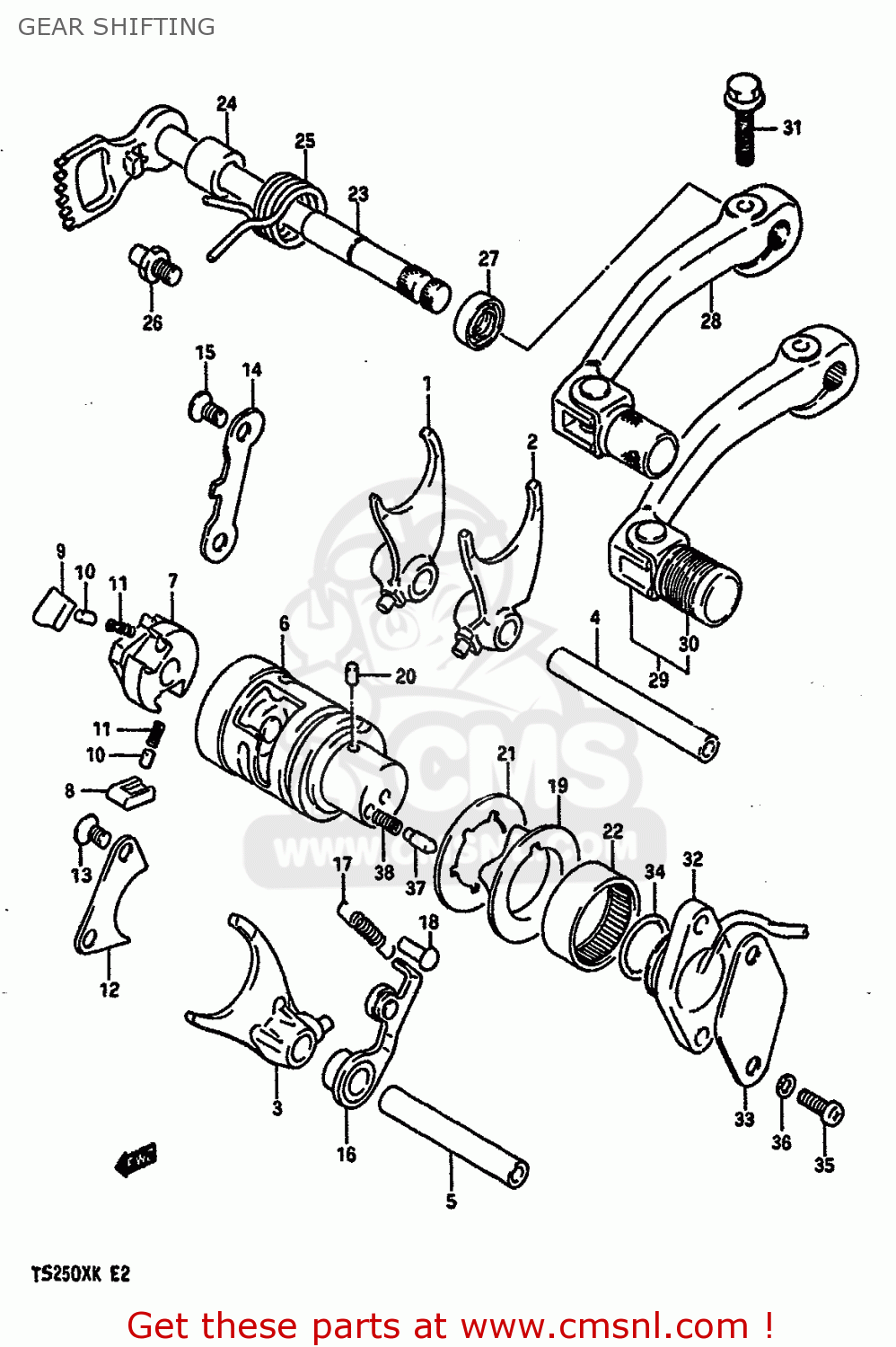

Gear shifting diagram TS250X 1989 (K) (E02 E16 E21 E22 E24)
GEAR SHIFTING TS250X 1989 (K) (E02 E16 E21 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
1
2521113A00
ref: 1
FORK,GEAR SHIFT NO.1
€ 85.00
2
2522113A00
ref: 2
FORK,GEAR SHIFT NO.2
€ 59.00
3
2523113A02
ref: 3
FORK,GEAR SHIFT NO.3
€ 53.50
4
2541114330
ref: 4
SHAFT,GEAR SHIFT FORK
€ 14.00
5-1
2542114330
ref: 5-1
MODEL E
SHAFT,GEAR SHIFT FORK NO.2
€ 10.00
5-2
2541113A00
ref: 5-2
MODEL G/H/J/K
SHAFT,FORK NO.2 (L:70)
€ 11.50
6
2531013A00
ref: 6
CAM,GEAR SHIFT
€ 53.00
7
2532231301
ref: 7
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
€ 1.50
11
0944004003
ref: 11
SPRING
€ 1.50
12
2533116500
ref: 12
LIFTER,GEAR SHIFT PAWL
€ 4.50
13
0212206128
ref: 13
SCREW
€ 3.00
14
2534113A00
ref: 14
GUIDE,GEAR SHIFT CAM
€ 8.00
15
0212206128
ref: 15
SCREW
€ 3.00
16
2535014311
ref: 16
STOPPER,GEAR SHIFTING CAM
€ 8.50
17
0944307036
ref: 17
SPRING
€ 2.50
18
0922004001
ref: 18
RIVET
€ 1.50
19
2538104700
ref: 19
PLATE,GEAR SHIFT CAM STOPPER
€ 13.00
20
0422104089
ref: 20
PIN
€ 1.50
21
0916730007
ref: 21
WASHER,LOCK
€ 2.50
22
0926325018
ref: 22
BEARING(25X32X12)
€ 17.50
23
2551013A03
ref: 23
SHAFT,GEAR SHIFT
€ 69.50
24
0918012083
ref: 24
SPACER(12X20X15.3)
€ 2.50
25-1
0944426013
ref: 25-1
MODEL E
SPRING
€ 3.50
25-2
0944426017
ref: 25-2
MODEL G/H/J/K
SPRING
€ 5.00
26
2567101000
ref: 26
STOPPER,GEAR SHIFT CAM
€ 3.00
27
0928512002
ref: 27
OIL SEAL
€ 7.00
28
2560013A01
ref: 28
MODEL E
LEVER ASSY,GEAR SHIFTING
€ 58.00
29
2560013A10
ref: 29
MODEL G/H/J/K
LEVER ASSY,GEAR SHIFTING
€ 58.00
30
2565214A00
ref: 30
MODEL G/H/J/K
RUBBER,GEAR SHIFT PEDAL
€ 9.50
31
0151706307
ref: 31
BOLT
€ 2.00
32
3772013A00
ref: 32
BODY,SWITCH
€ 17.50
33
3772113A00
ref: 33
PROTECTOR,SWITCH
€ 2.50
34
0928021008
ref: 34
O RING(D:2.5,ID:21)
€ 2.00
35
0211205165
ref: 35
SCREW
€ 2.00
36
0832121055
ref: 36
WASHER,LOCK
€ 3.00
37
0920905011
ref: 37
PIN(5X15.5)
€ 2.00
38
0944004010
ref: 38
SPRING
€ 1.50
