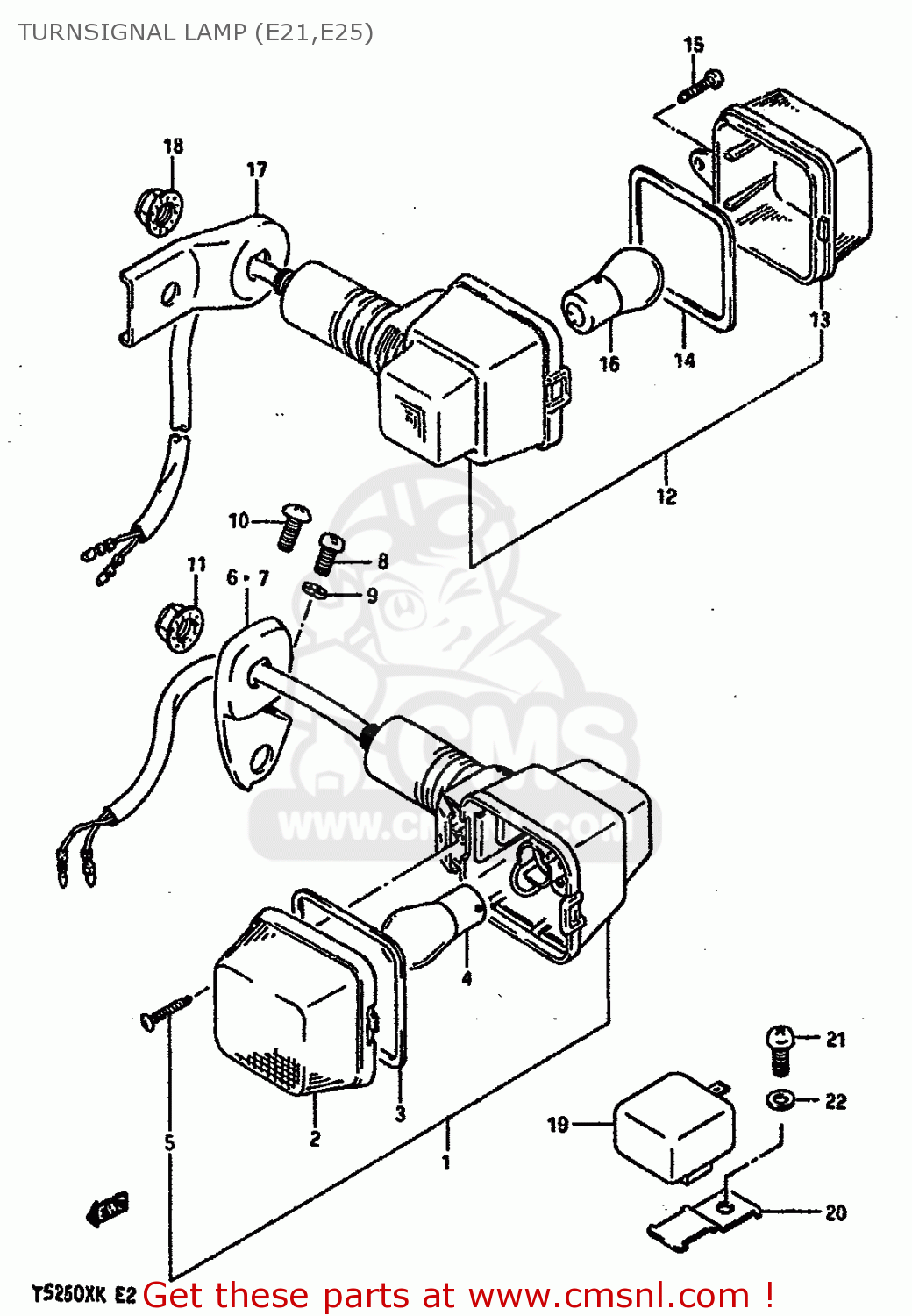

TURNSIGNAL LAMP (E21,E25)

ref

part #

description

quantity

1-1

3560113A53
ref: 1-1
MODEL E/G/H/J

LAMP ASSY,FRONT TURNSIGNAL

€ 77.00

1-2

3560113A54
ref: 1-2
MODEL K

LAMP ASSY,FRONT TURNSIGNAL

€ 77.00

2-1

3561201A01
ref: 2-1
MODEL E/G/H/J

LENS

€ 11.50

2-2

3561201A02
ref: 2-2
MODEL K

LENS,TURNSIGNAL

€ 11.50

3

3561301A00
ref: 3

GASKET (NAS)

€ 3.50

4

0947112056
ref: 4

BULB 12V 21W

€ 5.00

5

3562501A00
ref: 5

SCREW

€ 1.50

6

3567113A10
ref: 6

BRACKET,FRONT RH

€ 5.50

7

3568113A10
ref: 7

BRACKET,FRONT LH

€ 5.50

8

0211205105
ref: 8

SCREW

€ 2.00

9

0832121055
ref: 9

WASHER,LOCK

€ 3.00

10

0214205124
ref: 10

SCREW, FRONT & REAR

€ 1.50

11

0831626105
ref: 11

NUT

€ 3.50

12-1

3560304A13999
ref: 12-1
MODEL E/G/H/J

LAMP ASSY,REAR TURNSIGNAL

€ 77.00

12-2

3560304A14999
ref: 12-2
MODEL K

LAMP ASSY,RR TURNSIGNAL

€ 77.00

13-1

3561201A01
ref: 13-1
MODEL E/G/H/J

LENS

€ 11.50

13-2

3561201A02
ref: 13-2
MODEL K

LENS,TURNSIGNAL

€ 11.50

14

3561301A00
ref: 14

GASKET (NAS)

€ 3.50

15

3562501A00
ref: 15

SCREW

€ 1.50

16

0947112056
ref: 16

BULB 12V 21W

€ 5.00

17

3562113A00
ref: 17

BRACKET,RR TURNSIGNAL LAMP

€ 6.00

18

0831626105
ref: 18

NUT

€ 3.50

19

3861031310
ref: 19

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50

20

3862113A10
ref: 20
MODEL G/H/J/K

BRACKET,RELAY

€ 0.00

21

0211206125
ref: 21

SCREW

€ 1.50

22

0832121064
ref: 22

WASHER,LOCK

€ 2.00

all assemblies
