BATTERY

GS1100GK 1982 (Z) GENERAL EXPORT (E01)

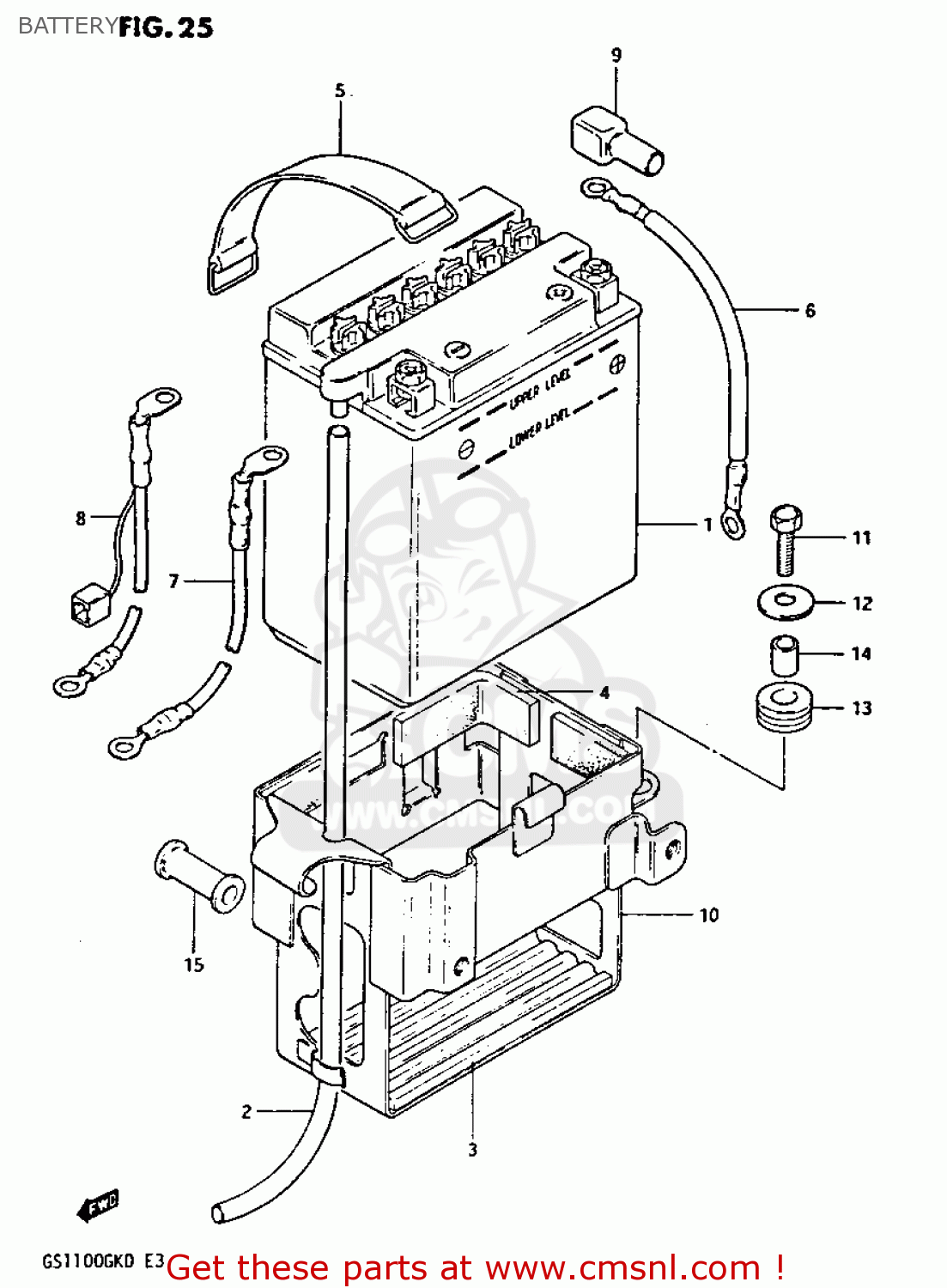

Battery diagram GS1100GK 1982 (Z) GENERAL EXPORT (E01)

BATTERY GS1100GK 1982 (Z) GENERAL EXPORT (E01)
BATTERY GS1100GK 1982 (Z) GENERAL EXPORT (E01)
BATTERY GS1100GK 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
3361049210
ref: 1
BATTERY ASSY (12V)
€ 110.00
2
3368031003
ref: 2
HOSE,BATTERY EXHAUST
€ 4.50
3
3365131000
ref: 3
PROTECTOR,BATTERY
3365131000
€ 29.00
4
3365137000
ref: 4
PROTECTOR(170X95X3.0)
3365137000
€ 5.00
5
0946200007
ref: 5
BAND
0946200007
€ 5.00
6
3382049400
ref: 6
WIRE,BATTERY PLUS
€ 10.50
7
3385049400
ref: 7
GS1100GKZ/GK2
LEAD WIRE,BATTERY(-)
€ 14.50
8
3385038420
ref: 8
GS1100GKD
WIRE,BATTERY MINUS LEAD
3385038420
€ 15.00
9
3362445000
ref: 9
CAP,TERMINAL
3362445000
€ 5.50
10
4154049400
ref: 10
HOLDER,BATTERY
€ 0.00
11
0150006167
ref: 11
BOLT
0150006167
€ 3.00
12
0916006012
ref: 12
WASHER(6,5X22X1.6)
€ 2.00
13
0932008013
ref: 13
CUSHION
0932008013
€ 4.00
14
0918006001
ref: 14
SPACER(6.2X8.3X5.7)
0918006001
€ 2.00
15
0932008022
ref: 15
CUSHION
0932008022
€ 3.50
