REAR FENDER
GS1100GK 1982 (Z) GENERAL EXPORT (E01)

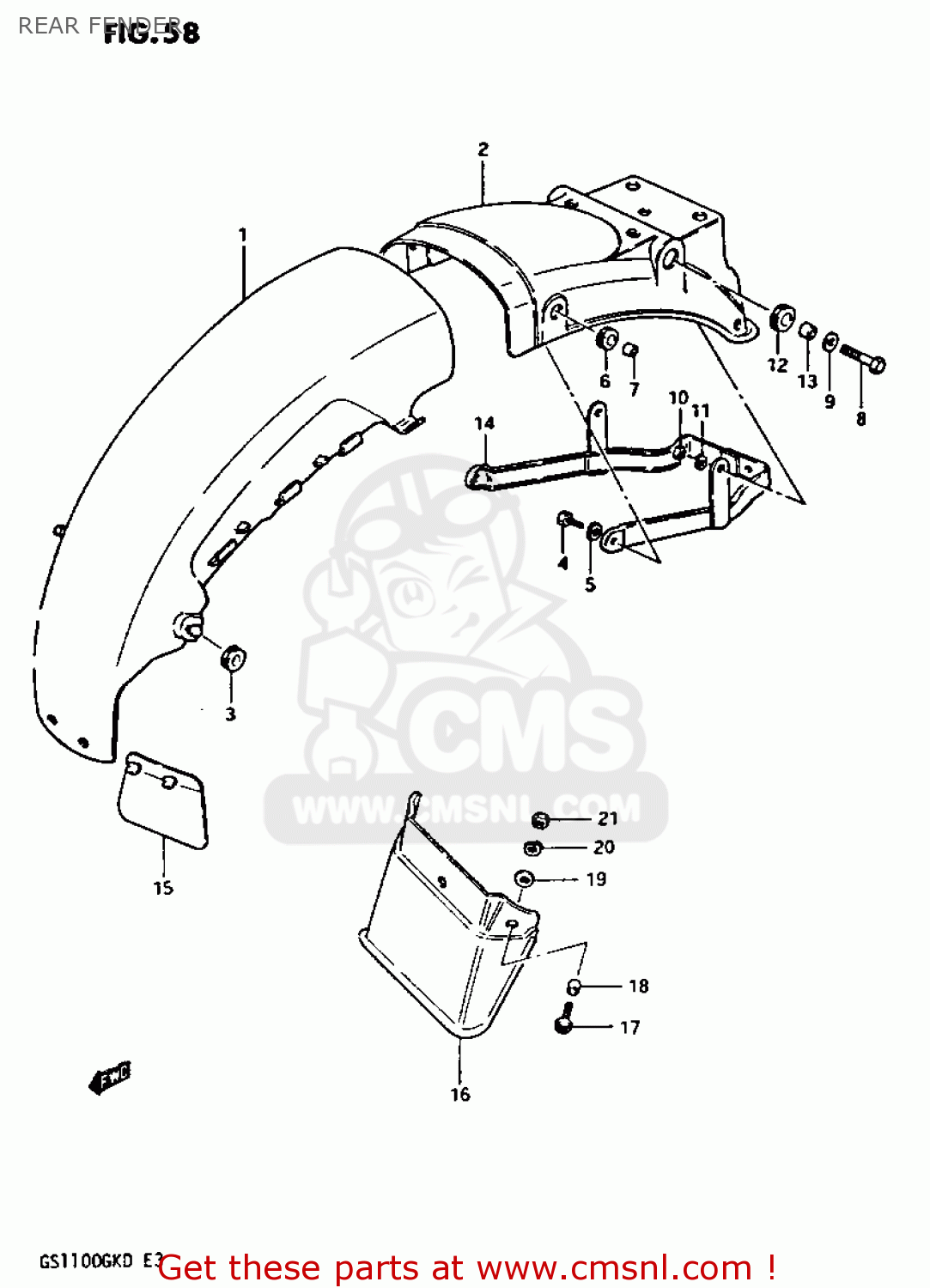

Rear fender diagram GS1100GK 1982 (Z) GENERAL EXPORT (E01)
REAR FENDER GS1100GK 1982 (Z) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
6311249004
ref: 1-1
GS1100GKZ
BODY,RR FENDER FR
€ 82.50
1-2
6311249004
ref: 1-2
GS1100GK2/GKD
BODY,RR FENDER FR
€ 82.50
2-1
6311349420291
ref: 2-1
GS1100GKZ
FENDER,REAR
€ 85.00
2-2
6311349420291
ref: 2-2
GS1100GK2/GKD
FENDER,REAR
€ 85.00
3
0932008013
ref: 3
CUSHION
€ 4.00
4
0150006167
ref: 4
BOLT
€ 3.00
5
0832101067
ref: 5
WASHER,LOCK
€ 2.50
6
0932008021
ref: 6
CUSHION
€ 4.00
7
0918006038
ref: 7
SPACER(6.1X9X7.5)
€ 2.00
8
0110708408
ref: 8
BOLT 8X40
€ 3.00
9
0832211088
ref: 9
WASHER
€ 2.00
10
0831012088
ref: 10
NUT
€ 2.00
11
0832121088
ref: 11
LOCK WASHER
€ 2.00
12
0932012011
ref: 12
CUSHION
€ 3.00
13
0918008021
ref: 13
SPACER (8.2X12X7.5)
€ 3.00
14
6312049400
ref: 14
REINFORCEMENT,REAR FENDER
€ 30.50
15
6341131900
ref: 15
GUIDE,RR FENDER MUD
€ 8.00
16
6331149400
ref: 16
EXTENSION,REAR FENDER
€ 0.00
17
0912506009
ref: 17
SCREW (6X15)
€ 3.00
18
0918006001
ref: 18
SPACER(6.2X8.3X5.7)
€ 2.00
19
0916006028
ref: 19
WASHER(6.5X18X1)
€ 1.50
20
0832101067
ref: 20
WASHER,LOCK
€ 2.50
21
0831000067
ref: 21
NUT
€ 2.50
