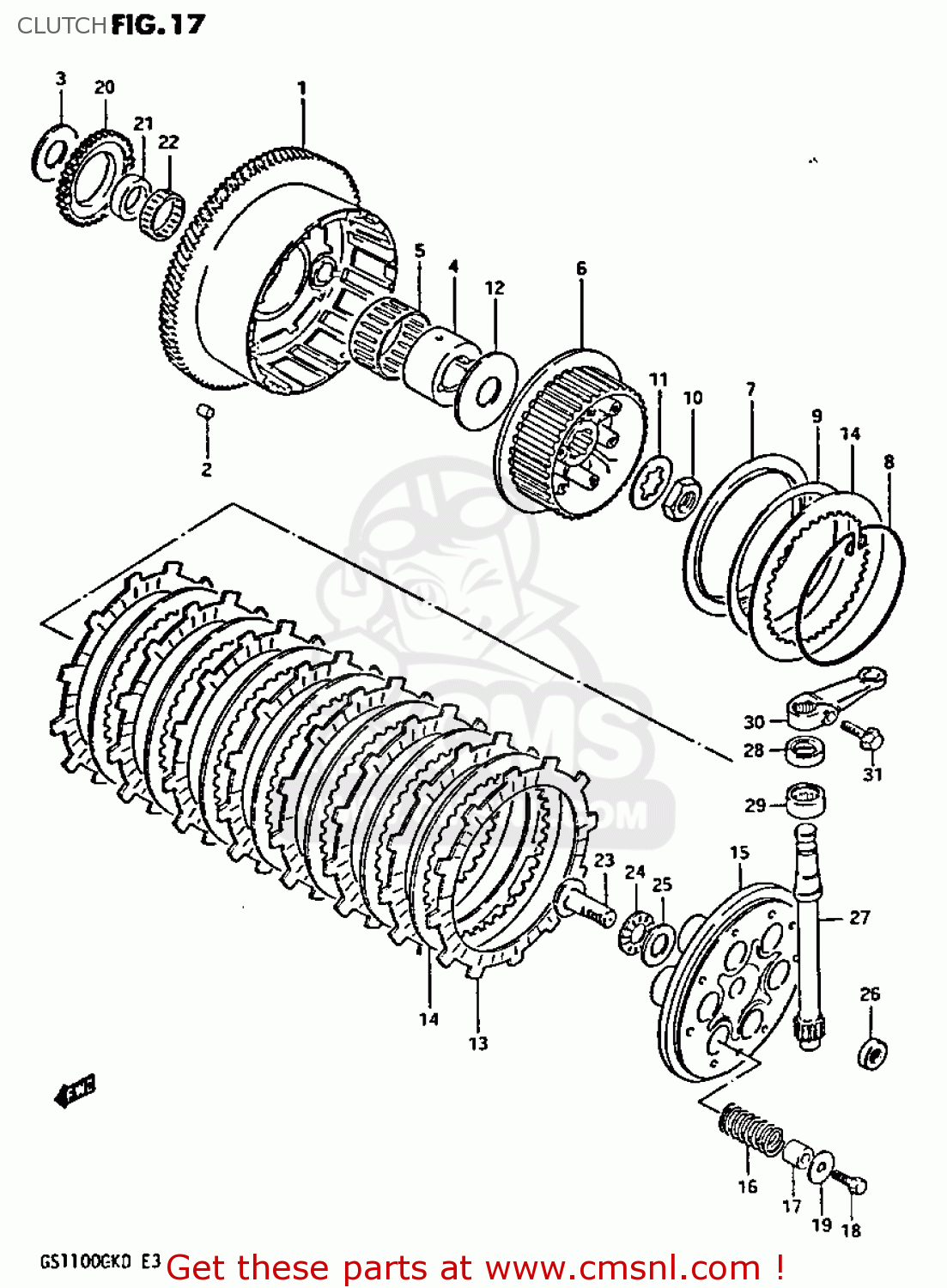

CLUTCH

ref

part #

description

quantity

1

2120049214
ref: 1

GEAR ASSY,PRI DRIVEN

€ 381.50

2

2121549000
ref: 2

CUSHION,PRIMARY DRIVEN GEAR

€ 3.00

3

0916025055
ref: 3

WASHER(25X50X2.5)

€ 9.50

4

2125149200
ref: 4

SPACER

€ 65.50

5

0926351002
ref: 5

BEARING(51X56X28)

€ 37.00

6

2141149203
ref: 6

HUB,CLUTCH SLEEVE

€ 151.50

7

2147149100
ref: 7

SEAT,WAVE WASHER

€ 8.00

8

2148145100
ref: 8

RING,STOPPER

€ 5.00

9

0916400003
ref: 9

WASHER

€ 9.00

10

0914024007
ref: 10

NUT

€ 4.50

11

0916725007
ref: 11

WASHER,LOCK

€ 7.50

12

0916025022
ref: 12

WASHER(25X66X3.5)

€ 13.50

13

2144149200
ref: 13

PLATE,CLUTCH DRIVE (MCA)

€ 16.00

14

2145149200
ref: 14

PLATE,CLUTCH DRIVEN (NAS)

€ 6.00

15

2146249010
ref: 15

PLATE,CLUTCH PRESSURE

€ 36.00

16

0944019027
ref: 16

SPRING

€ 5.50

17

0918006174
ref: 17

SPACER(6.2X12X14)

€ 5.50

18

0150006307
ref: 18

BOLT

€ 2.50

19

0916006066
ref: 19

WASHER(6.5X20X1.6)

€ 2.00

20

1632149000
ref: 20

GEAR,ENG OIL PUMP DRIVE(NT:34)

€ 78.50

21

1632545001
ref: 21

SPACER,OIL PUMP DRIVE GEAR

€ 13.50

22

0926336002
ref: 22

BEARING(36X40X10)

€ 24.50

23

2316549011
ref: 23

RACK,CLUTCH RELEASE

€ 18.50

24

0926315003
ref: 24

BEARING(15X28X2)

€ 7.00

25

0916015045
ref: 25

WASHER(15.5X28X1)

€ 4.00

26

0928510003
ref: 26

SEAL,OIL(10X16X5)

€ 6.00

27

2326149001
ref: 27

PINION,CLUTCH RELEASE

€ 28.00

28

0928512002
ref: 28

OIL SEAL

€ 7.00

29

0926315012
ref: 29

BEARING(15X22X12)

€ 11.50

30

2327149200
ref: 30

ARM,CLUTCH RELEASE

€ 26.00

31

0151706207
ref: 31

BOLT 6X20

€ 2.50
