STARTING MOTOR

GS1100GK 1982 (Z) GENERAL EXPORT (E01)

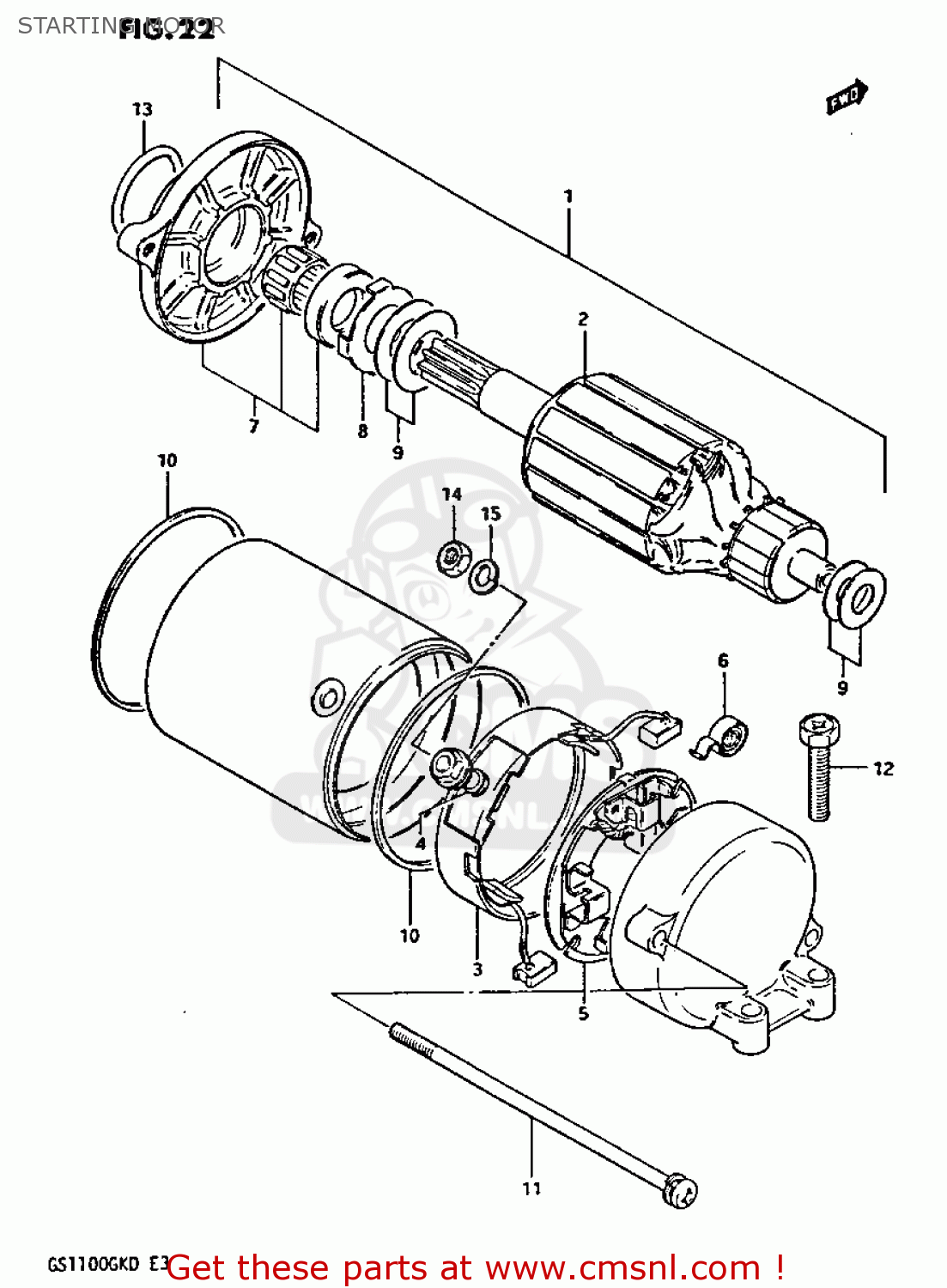

Starting motor diagram GS1100GK 1982 (Z) GENERAL EXPORT (E01)

STARTING MOTOR GS1100GK 1982 (Z) GENERAL EXPORT (E01)
STARTING MOTOR GS1100GK 1982 (Z) GENERAL EXPORT (E01)
STARTING MOTOR GS1100GK 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
3110049050
ref: 1
MOTOR ASSY,STARTING
3110049050
€ 873.50
2
3131149040
ref: 2
ARMATURE
€ 118.50
3
3113005A00
ref: 3
BRUSH TERMINAL SET
3113005A00
€ 54.00
4
3114349040
ref: 4
O RING
3114349040
€ 3.00
5
3113205A00
ref: 5
HOLDER,BRUSH
3113205A00
€ 35.50
6
3113549040
ref: 6
SPRING,BRUSH
3113549040
€ 5.00
7
3110049810
ref: 7
HOUSING SET,STARTING MOTOR
€ 80.50
8
3136049240
ref: 8
SHIM SET
€ 10.50
9
3136049040
ref: 9
SHIM SET
€ 10.50
10
3126449040
ref: 10
SEAL,RING
3126449040
€ 7.50
11
3128149040
ref: 11
BOLT,STARTING MOTOR HOUSING
€ 7.00
12
0912806024
ref: 12
SCREW (6X25)
0912806024
€ 2.50
13
0928024003
ref: 13
O RING(D:3,ID:24.5)
0928024003
€ 2.00
14
0831022067
ref: 14
NUT 6MM
0831022067
€ 2.50
15
0832101067
ref: 15
WASHER,LOCK
0832101067
€ 2.50
