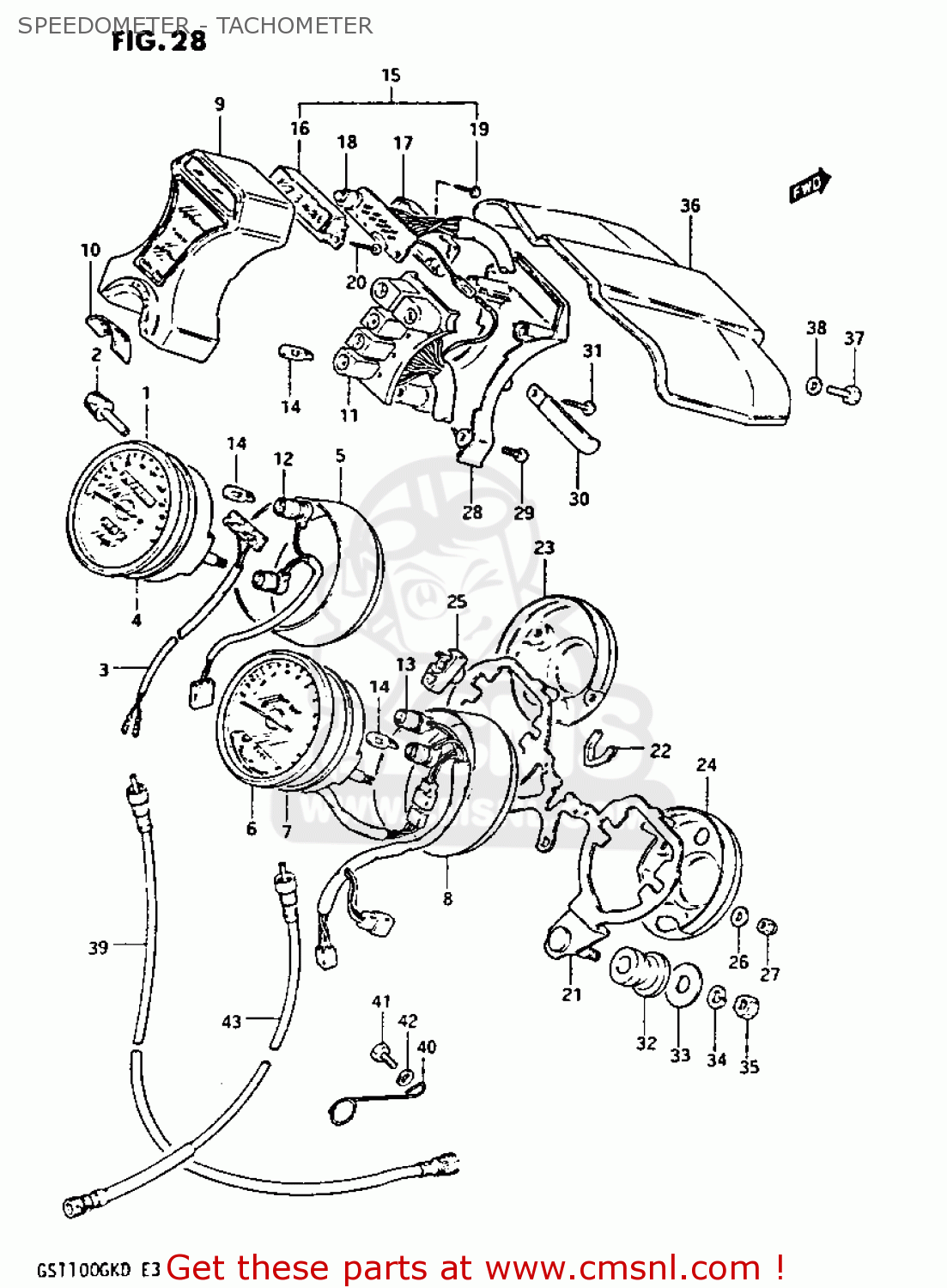

SPEEDOMETER - TACHOMETER - GS1100GK 1982 (Z) GENERAL EXPORT (E01)

ref

part #

description

quantity

1-1

3411049411
ref: 1-1
GS1100GKZ/GK2

METER,SPEEDOMETER (KM/MPH)

€ 135.50

1-2

3411049411
ref: 1-2
GS1100GKD

METER,SPEEDOMETER (KM/MPH)

€ 135.50

2

3412449400
ref: 2

KNOB,TRIP

€ 4.50

3

3486049470
ref: 3

WIRE,LEAD SWITCH

€ 64.00

4

3418949400
ref: 4

CUSHION,METER

€ 13.00

5

3415149400
ref: 5

COVER,SPEEDOMETER

€ 14.00

6-1

3421049400
ref: 6-1
GS1100GKZ/GK2

METER,TACHOMETER

€ 309.00

6-2

3421049400
ref: 6-2
GS1100GKD

METER,TACHOMETER

€ 309.00

7

3418949400
ref: 7

CUSHION,METER

€ 13.00

8

3425149400
ref: 8

COVER,TACHOMETER

€ 13.50

9

3638049400
ref: 9

CASE,PILOT BOX

€ 68.50

10

3499347000
ref: 10

SEAL,IGNITION SWITCH

€ 3.00

11

3632549470
ref: 11

SOCKET

€ 0.00

12

3417349400
ref: 12

SOCKET,SPEEDOMETER

€ 10.00

13

3427349470
ref: 13

SOCKET,TACHOMETER

€ 0.00

14

0947112028
ref: 14

BULB(12V3.4W,T10)

€ 3.50

15-1

3645045360
ref: 15-1
GS1100GKZ/GK2

INDICATOR ASSEMBLY,GEAR POSITION

€ 174.50

15-2

3645049401
ref: 15-2
GS1100GKD

INDICATOR ASSEMBLY,GEAR POSITION

€ 117.00

16-1

3645245100
ref: 16-1
GS1100GKZ/GK2

CASE,GEAR INDICATOR

€ 14.50

16-2

3645249401
ref: 16-2
GS1100GKD

CASE,GEAR INDICATOR

€ 12.50

17

3645445100
ref: 17

COVER,LWR

€ 7.00

18-1

0947112071
ref: 18-1
GS1100GKZ/GK2

BULB(14V1.12W)

€ 5.00

18-2

0947112078
ref: 18-2
GS1100GKD

BULB(14V1.12W,BQ041-32503B)

€ 6.50

19

3645645100
ref: 19

SCREW,GEAR INDICATOR

€ 2.00

20

3645745100
ref: 20

SCREW

€ 2.00

21

3495049470
ref: 21

BRACKET,METER

€ 0.00

22

3495344310
ref: 22

BRACKET,COVER

€ 6.50

23

3419349470
ref: 23

COVER,METER,UNDER

€ 31.00

24

3429349470
ref: 24

COVER,TACHOMETER,UNDER

€ 0.00

25

3419149400
ref: 25

CUSHION

€ 4.50

26

0832221057
ref: 26

WASHER

€ 2.50

27

0831311057
ref: 27

NUT

€ 1.50

28

3638349470
ref: 28

COVER,PILOT BOX

€ 16.50

29

3638744310
ref: 29

SCREW,PILOT BULB CASE

€ 1.00

30

3649449470
ref: 30

CLAMP,CORD

€ 0.00

31

0311104088
ref: 31

CROSS SCREW (4X8)

€ 1.00

32

3495631001
ref: 32

CUSHION,METER BRACKET

€ 4.50

33

0916008057
ref: 33

WASHER (8.5X20X1.6)

€ 2.00

34

0832121084
ref: 34

WASHER,LOCK,8.

€ 2.50

35

0831011085
ref: 35

NUT

€ 1.50

36

6245049400
ref: 36

HOOD,METER

€ 16.50

37

0150006127
ref: 37

BOLT

€ 2.00

38

0832201067
ref: 38

WASHER

€ 2.00

39

3491049400
ref: 39

CABLE ASSEMBLY,SPEEDOMETER

€ 25.00

40

3493845100
ref: 40

CLAMP,SPEEDOMETER CABLE

€ 14.50

41

0150006167
ref: 41

BOLT

€ 3.00

42

0832201067
ref: 42

WASHER

€ 2.00

43

3494049400
ref: 43

CABLE ASSEMBLY,TACHOMETER

€ 18.50

SPEEDOMETER - TACHOMETER

all assemblies
