FUEL TANK (GS1100GK2/GKD)

GS1100GK 1982 (Z) GENERAL EXPORT (E01)

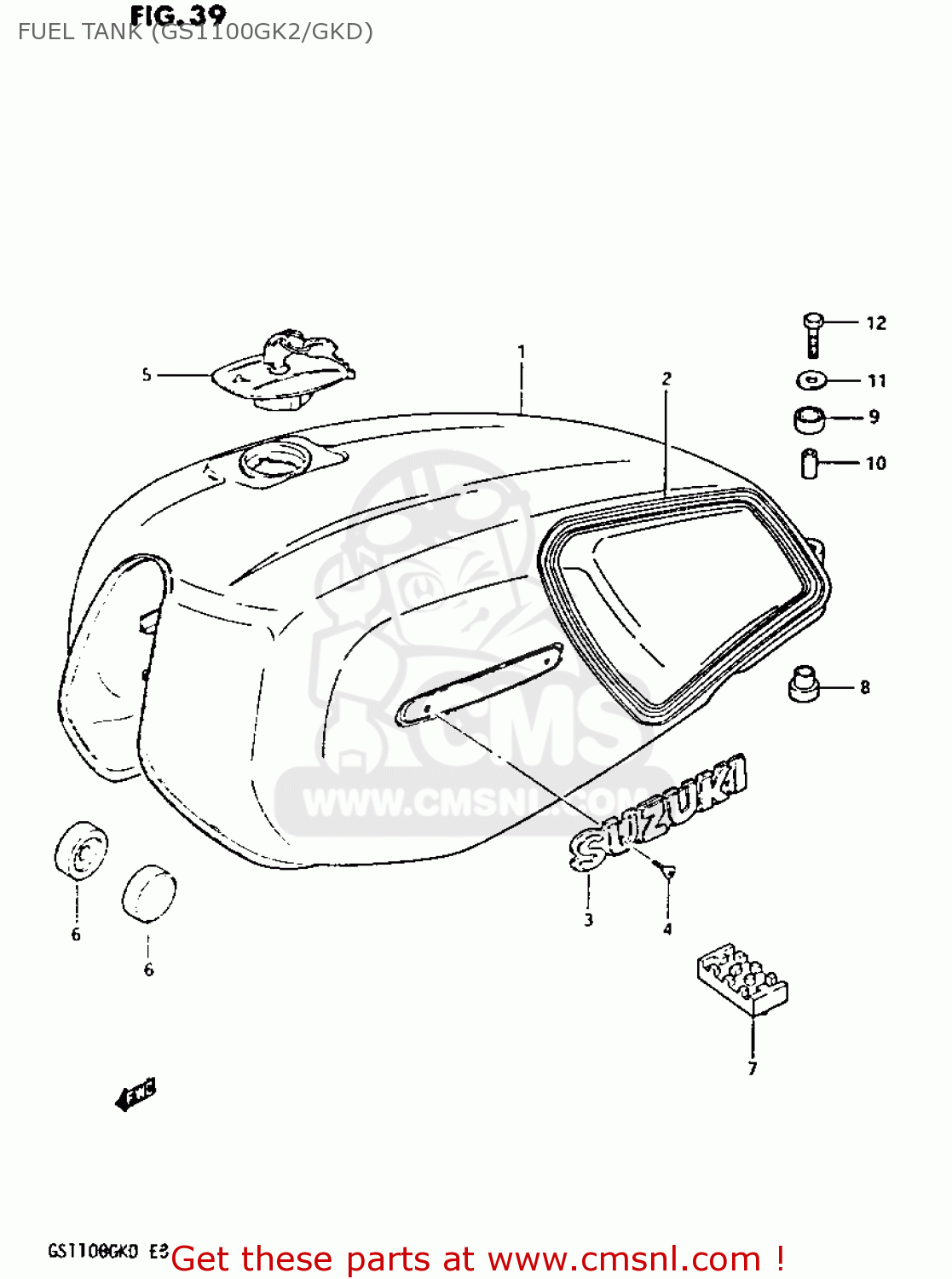

Fuel tank (gs1100gk2/gkd) diagram GS1100GK 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

441104512013L
ref: 1

TANK ASSEMBLY,FUEL

€ 324.00

681104945093A
ref: 2

TAPE SET,FUEL TANK

€ 0.00

6811144600
ref: 3

EMBLEM

€ 0.00

0213203065
ref: 4

SCREW 3X6

€ 2.00

4420049810
ref: 5

CAP SET,FUEL TANK

€ 121.00

0932910016
ref: 6

CUSHION

€ 3.00

4454149401
ref: 7

CUSHION,FUEL TANK

€ 9.00

0932014013
ref: 9

CUSHION

€ 3.00

0918006091
ref: 10

SPACER (6.4X9X21.5)

€ 5.50

0916006004
ref: 11

WASHER (6.5X24X1.6)

€ 1.50

0150006307
ref: 12

BOLT

€ 2.50
