SEAT
GS1100GK 1982 (Z) GENERAL EXPORT (E01)

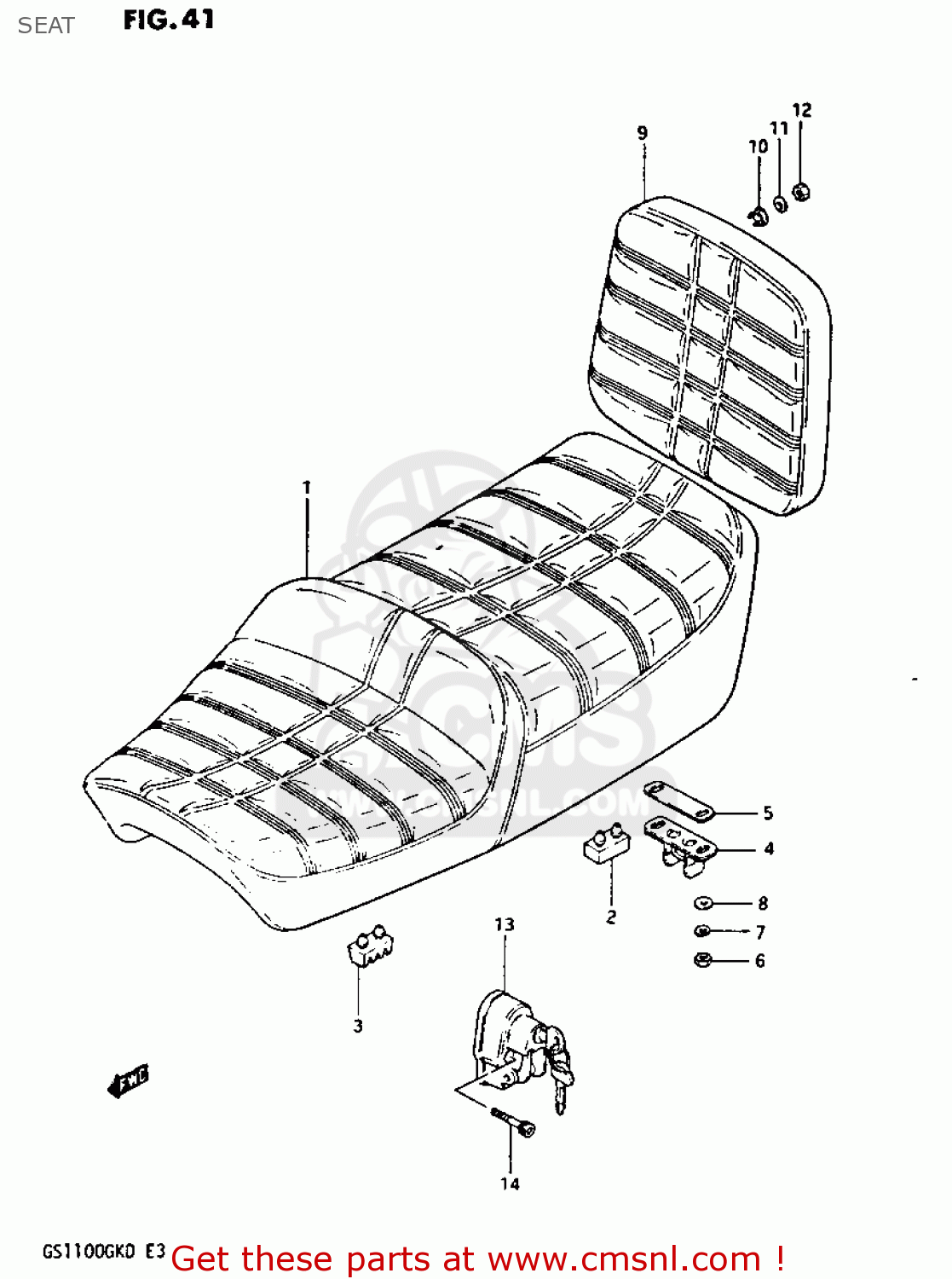

Seat diagram GS1100GK 1982 (Z) GENERAL EXPORT (E01)
SEAT GS1100GK 1982 (Z) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
451004945048H
ref: 1-1
GS1100GKZ
SEAT ASSEMBLY
€ 0.00
1-2
451004945091Z
ref: 1-2
GS1100GK2/GKD
SEAT ASSEMBLY
€ 0.00
2
0932108012
ref: 2
CUSHION(40X23X12.7)
€ 4.50
3
4514945330
ref: 3
CUSHION,SUPPORT(50X25X32)
€ 2.00
4
4521044101
ref: 4
STRIKER,SEAT LOCK
€ 32.50
5
4521744100
ref: 5
SHIM,SEAT LOCK STRIKER
€ 4.50
6
0831022067
ref: 6
NUT 6MM
€ 2.50
7
0832101067
ref: 7
WASHER,LOCK
€ 2.50
8
0832201067
ref: 8
WASHER
€ 2.00
9-1
453504945148H
ref: 9-1
GS1100GKZ
PAD ASSEMBLY,TAIL BOX
€ 91.00
9-2
453504945148H
ref: 9-2
GS1100GK2/GKD
PAD ASSEMBLY,TAIL BOX
€ 91.00
10
0832221064
ref: 10
WASHER
€ 2.00
11
0832121064
ref: 11
WASHER,LOCK
€ 2.00
12
0831311065
ref: 12
NUT 6MM
€ 2.00
13
9570034210
ref: 13
LOCK ASSY,HELMET
€ 59.00
14
0711005258
ref: 14
BOLT
€ 2.00
