FRONT WHEEL
GS1100GK 1982 (Z) GENERAL EXPORT (E01)

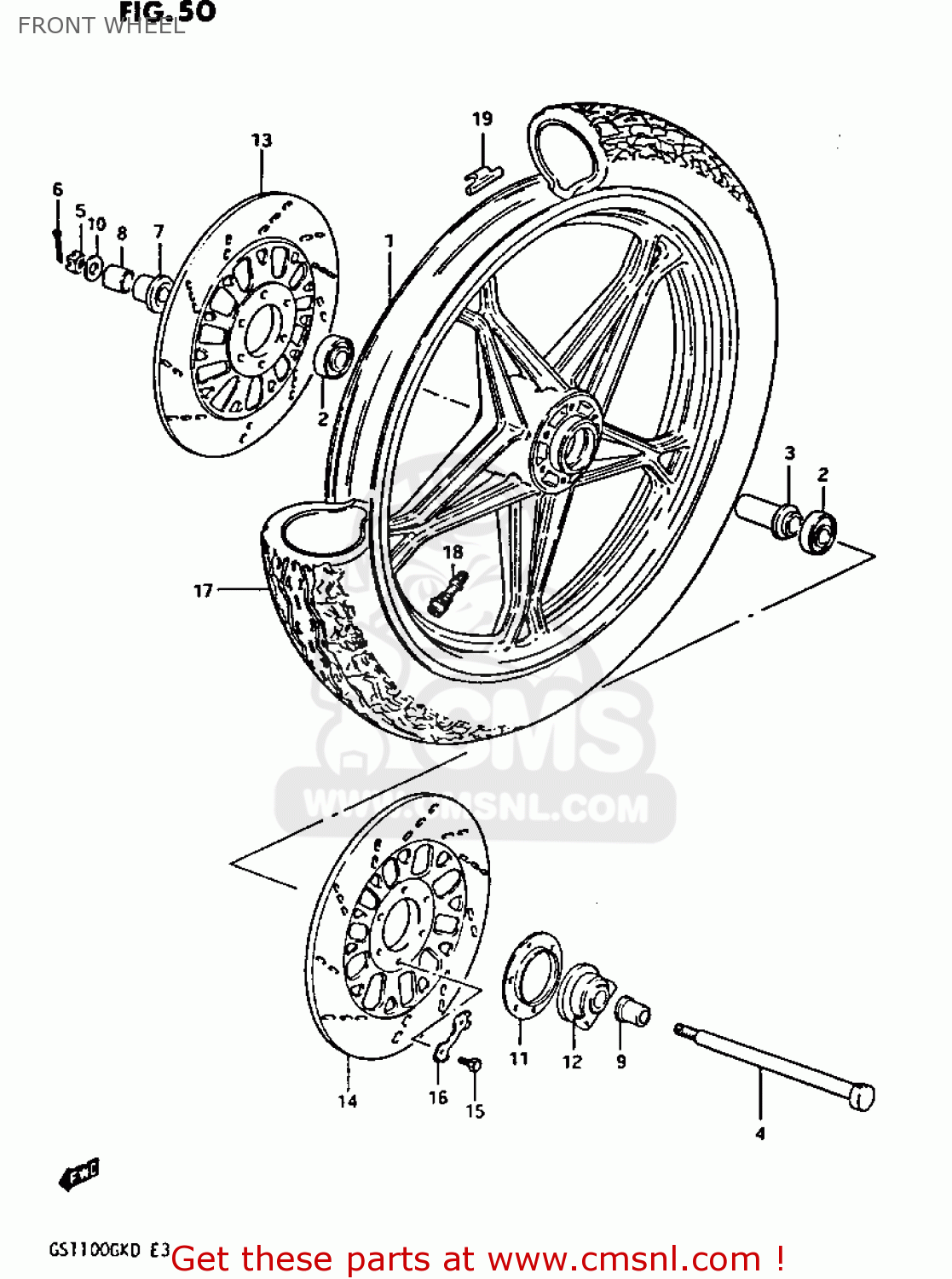

Front wheel diagram GS1100GK 1982 (Z) GENERAL EXPORT (E01)
FRONT WHEEL GS1100GK 1982 (Z) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
5411149400291
ref: 1
CASTING WHEEL,FRONT 2.15
€ 580.00
2
0812363027
ref: 2
BEARING
€ 19.00
3
5473018400
ref: 3
SPACER,FR HUB BEARING
€ 13.00
4
5471149400
ref: 4
AXLE,FRONT
€ 28.00
5
0831431128
ref: 5
NUT 12MM
€ 2.00
6
0411130308
ref: 6
COTTER PIN
€ 1.50
7
5474018402
ref: 7
SPACER,FR AXLE,R
€ 18.50
8
0918015058
ref: 8
SPACER
€ 0.00
9
5474149410
ref: 9
SPACER,FRONT AXLE
€ 10.00
10
0832221128
ref: 10
WASHER
€ 2.00
11
5487145010
ref: 11
DUST SEAL,SPEEDOMETER GEAR BOX
€ 21.00
12
5460018402
ref: 12
BOX ASSY,SPEEDOMETER GEAR
€ 90.50
13
5921145250
ref: 13
DISC,FR BRAKE,R
€ 149.00
14
5922145250
ref: 14
DISC,FR BRAKE,L
€ 149.00
15
0910008140
ref: 15
BOLT(8X25)
€ 2.00
16
0916908016
ref: 16
WASHER
€ 3.50
17-1
5510049470
ref: 17-1
BS
TIRE,FRONT
€ 0.00
17-2
5510049480
ref: 17-2
DUNLOP
TIRE,FRONT
€ 0.00
18
5522045100
ref: 18
VALVE ASSEMBLY,WHEEL RIM,J
€ 15.50
19-1
5541145100
ref: 19-1
BALANCER,WHEEL
€ 7.00
19-2
5541245100
ref: 19-2
BALANCER,WHEEL
€ 4.00
19-3
5541345100
ref: 19-3
BALANCER,WHEEL
€ 6.50
