SIDE BAG (GS1100GK2/GKD)

GS1100GK 1982 (Z) GENERAL EXPORT (E01)

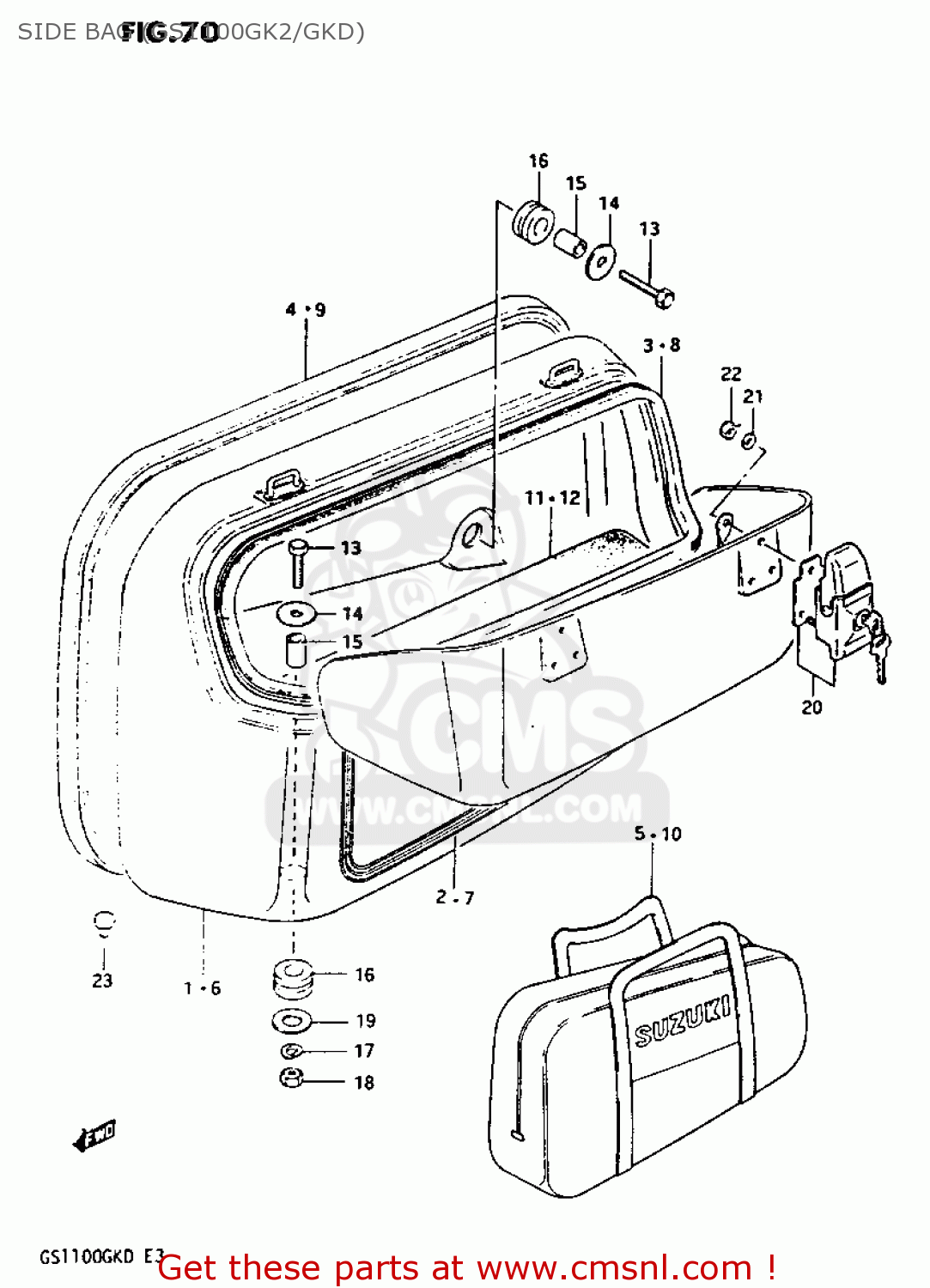

Side bag (gs1100gk2/gkd) diagram GS1100GK 1982 (Z) GENERAL EXPORT (E01)

SIDE BAG (GS1100GK2/GKD) GS1100GK 1982 (Z) GENERAL EXPORT (E01)

SIDE BAG (GS1100GK2/GKD) GS1100GK 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

954004982190U
ref: 1

SIDE BAG ASSEMBLY,RIGHT

€ 1,109.50

2

682604941093A
ref: 2

TAPE SET,SIDE BAG,RIGHT

€ 0.00

3

9311349400
ref: 3

SEAL,TRAVEL TRUNK

€ 45.00

4

9541949400
ref: 4

MOLDING,SIDE BAG

€ 31.00

5

9545049400
ref: 5

LUGGAGE BAG RH

€ 150.00

6

955004982190U
ref: 6

SIDE BAG ASSEMBLY,LEFT

€ 276.00

7

682704941093A
ref: 7

TAPE SET,SIDE BAG,LEFT

€ 0.00

8

9311349400
ref: 8

SEAL,TRAVEL TRUNK

€ 45.00

9

9541949400
ref: 9

MOLDING,SIDE BAG

€ 31.00

10

9555049400
ref: 10

LUGGAGE BAG LH

€ 150.00

11

9545149400
ref: 11

CUSHION

€ 0.00

12

9545549400
ref: 12

CUSHION

€ 0.00

13

0150006257
ref: 13

BOLT

€ 2.00

14

0916006030
ref: 14

WASHER (6.5X29X1.6)

€ 2.50

15

0918008083
ref: 15

SPACER

€ 4.50

16

0932014008
ref: 16

CUSHION

€ 4.50

17

0832101067
ref: 17

WASHER,LOCK

€ 2.50

18

0831000067
ref: 18

NUT

€ 2.50

19

0916006027
ref: 19

WASHER (6.5X20X1.2)

€ 2.00

20

9331049400KEY
ref: 20

LOCK,TRANK LID

€ 64.00

21

0832221047
ref: 21

WASHER 4MM

€ 2.00

22

0831311048
ref: 22

NUT 4MM

€ 2.00

23

0925008001
ref: 23

PLUG(OD:14)

€ 1.00
