TRAVEL TRUNK (GS1100GK2/GKD)

GS1100GK 1982 (Z) GENERAL EXPORT (E01)

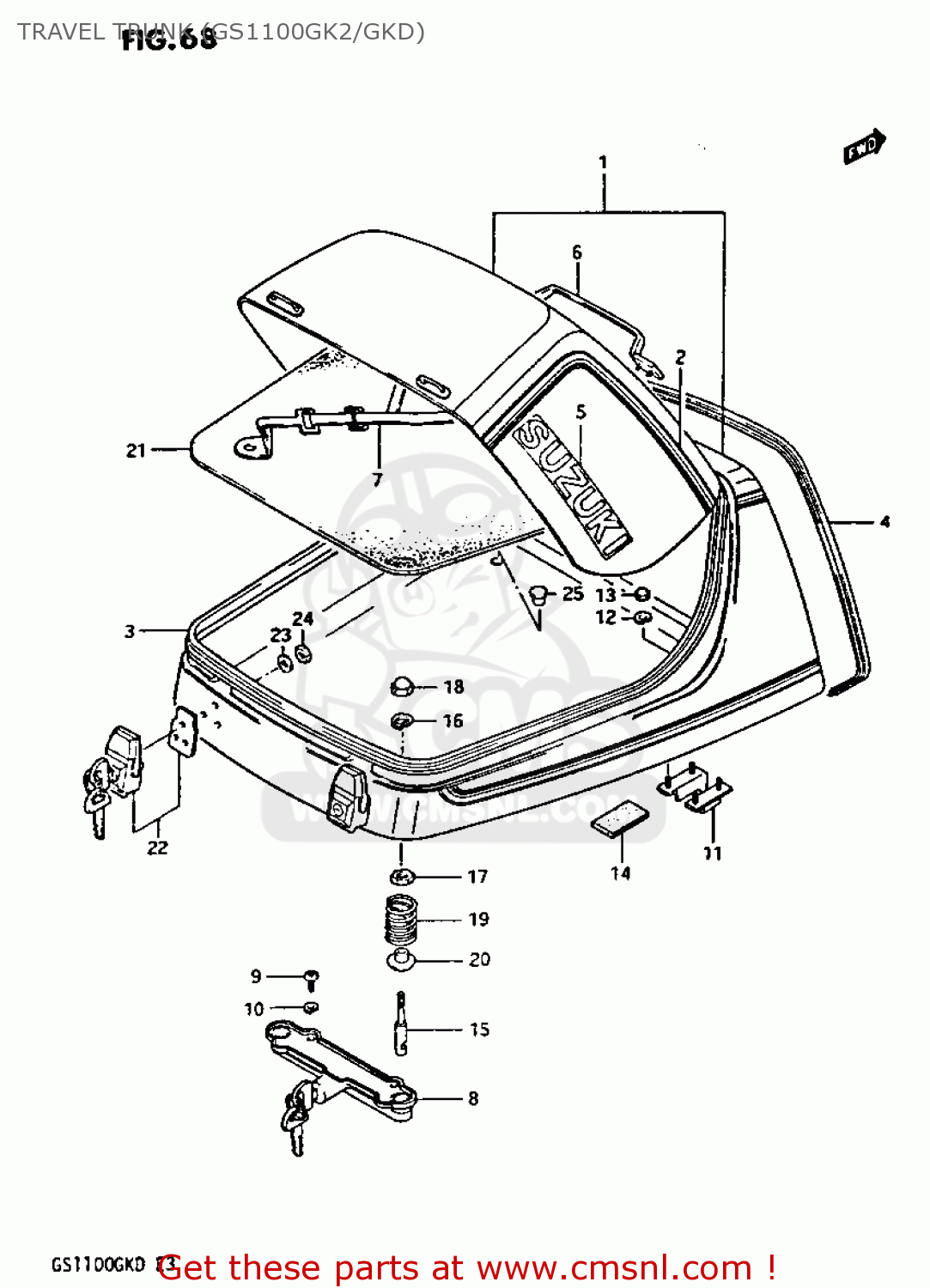

Travel trunk (gs1100gk2/gkd) diagram GS1100GK 1982 (Z) GENERAL EXPORT (E01)

TRAVEL TRUNK (GS1100GK2/GKD) GS1100GK 1982 (Z) GENERAL EXPORT (E01)
TRAVEL TRUNK (GS1100GK2/GKD) GS1100GK 1982 (Z) GENERAL EXPORT (E01)
TRAVEL TRUNK (GS1100GK2/GKD) GS1100GK 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
931004988190U
ref: 1
TRAVEL TRUNK (BROWN/BROWN)
€ 248.50
2
682804941093A
ref: 2
TAPE SET,COWLING BODY
€ 0.00
3
9311349400
ref: 3
SEAL,TRAVEL TRUNK
€ 45.00
4
9311449400
ref: 4
MOLDING,TRAVEL TRUNK
€ 27.00
5
6827849400
ref: 5
EMBLEM,COWLING
6827849400
€ 18.00
6
9314349400
ref: 6
GRIP TRAVEL TRUNK
€ 0.00
7
9319049400
ref: 7
BAND SET
€ 0.00
8
9341049410KEY
ref: 8
LOCK,TRAVEL TRANK
€ 51.50
9
0211206128
ref: 9
SCREW 6X12
0211206128
€ 2.00
10
0832101067
ref: 10
WASHER,LOCK
0832101067
€ 2.50
11
9313049400
ref: 11
HOOK COMP TRAV TRUNK
€ 6.00
12
0832121057
ref: 12
LOCK WASHER
0832121057
€ 2.00
13
0831311058
ref: 13
NUT
€ 1.50
14
9311549401
ref: 14
CUSHION TRAVEL TRUNK
€ 2.50
15
9315149400
ref: 15
LOCK BOSS TRAV TRUNK
€ 8.00
16
0832131087
ref: 16
WASHER,LOCK
€ 2.00
17
0831000087
ref: 17
NUT
0831000087
€ 2.00
18
0831311088
ref: 18
NUT
0831311088
€ 2.50
19
9315349400
ref: 19
SPRING,TRAVEL TRUNK
€ 2.50
20
9315249400
ref: 20
GUIDE,TRAVEL TRUNK SPRING
€ 3.00
21
9318149401
ref: 21
CUSHION TRAVEL TRUNK
€ 26.00
22
9331049400KEY
ref: 22
LOCK,TRANK LID
9331049400KEY
€ 64.00
23
0832221047
ref: 23
WASHER 4MM
0832221047
€ 2.00
24
0831311048
ref: 24
NUT 4MM
€ 2.00
25
0925008001
ref: 25
PLUG(OD:14)
0925008001
€ 1.00
