Buy Suzuki GS Parts Online


COWLING (NO.2)

GS1100GK 1982 (Z) GENERAL EXPORT (E01)

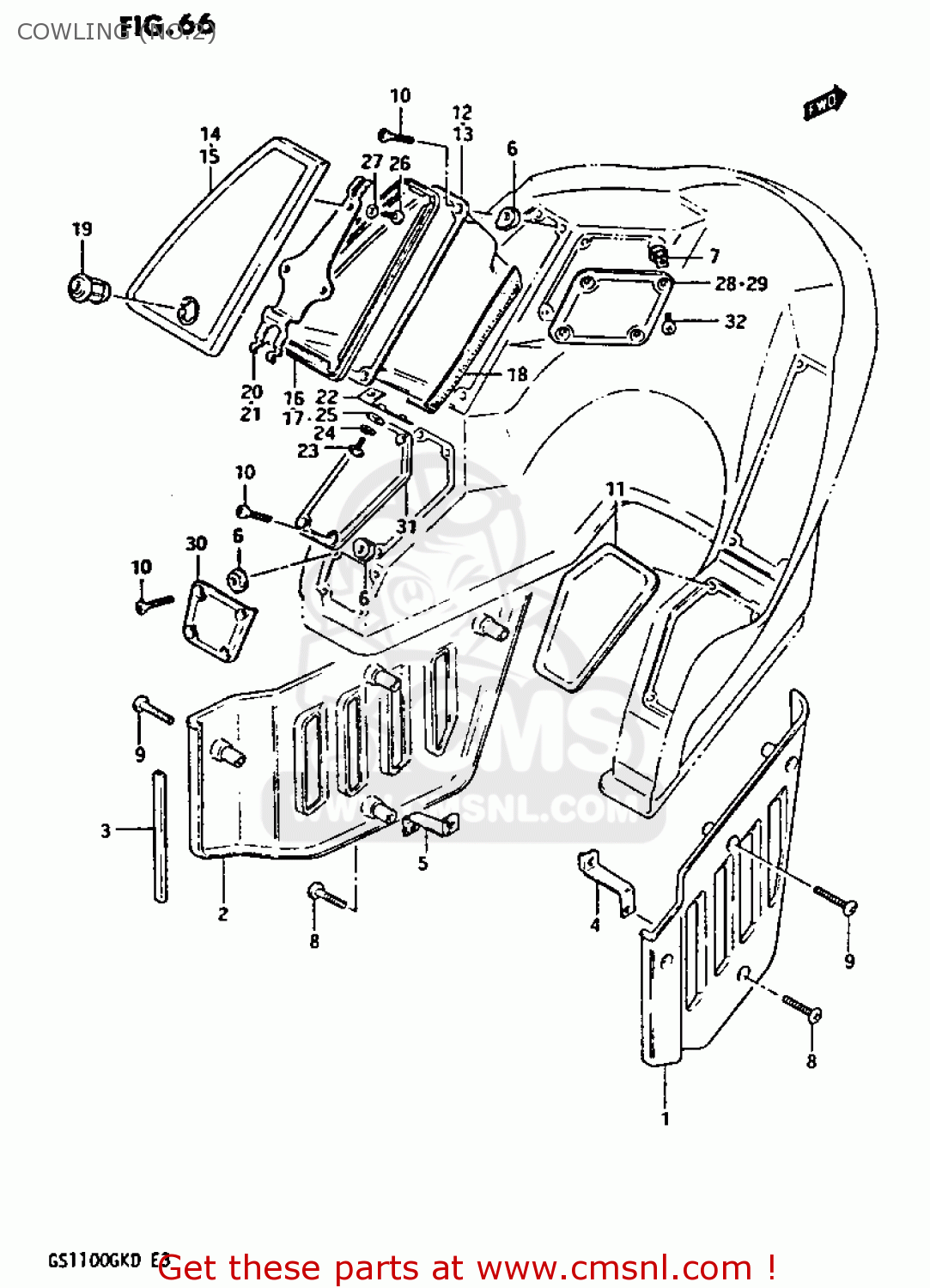

Cowling (no.2) diagram GS1100GK 1982 (Z) GENERAL EXPORT (E01)

COWLING (NO.2) GS1100GK 1982 (Z) GENERAL EXPORT (E01)
COWLING (NO.2) GS1100GK 1982 (Z) GENERAL EXPORT (E01)
COWLING (NO.2) GS1100GK 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
944304940084N
ref: 1-1
GS1100GKZ
COVER,COWLING,LOWER,RIGHT
€ 125.00
1-2
9443049400
ref: 1-2
GS1100GKZ
COVER,LOWER,RIGHT
€ 125.00
1-3
944304940093E
ref: 1-3
GS1100GK2/GKD
COVER,COWLING,LOWER,RIGHT
€ 125.00
2-1
9444049400
ref: 2-1
GS1100GKZ
COVER,LOWER,LEFT
€ 101.00
2-2
944404940085R
ref: 2-2
GS1100GKZ
COVER,COWLING,LEFT
€ 101.00
2-3
9444049400
ref: 2-3
GS1100GK2/GKD
COVER,LOWER,LEFT
€ 101.00
3
9443849400
ref: 3
MOLDING,COWLING LOWER COVER
€ 7.00
4
9454049400
ref: 4
BRACKET
€ 4.00
5
9455049400
ref: 5
BRACKET
€ 4.00
6
9469249400
ref: 6
PLATE,COVER FITTING NO
9469249400
€ 3.50
7
9469949400
ref: 7
PLATE,COVER FITTING NO
€ 4.00
8
0912506038
ref: 8
SCREW
0912506038
€ 3.00
9
0214206357
ref: 9
SCREW
0214206357
€ 2.00
10
0323205165
ref: 10
SCREW (5X16)
€ 1.00
11-1
9460049811291
ref: 11-1
GS1100GKZ
GLOVE BOX,COWLING (BLACK)
€ 0.00
11-2
9460049811291
ref: 11-2
GS1100GK2/GKD
GLOVE BOX,COWLING (BLACK)
€ 0.00
12
9460049820291
ref: 12
CONSOLE BOX,RIGHT
€ 38.00
13
9460049830291
ref: 13
CONSOLE BOX,LEFT
€ 49.00
14
9464549400291
ref: 14
LID,CONSOLE BOX,RIGHT
9464549400291
€ 17.00
15
9465549400291
ref: 15
LID,CONSOLE BOX,LEFT
€ 18.50
16
9464649400
ref: 16
CUSHION,CONSOLE BOX
€ 10.50
17
9465649400
ref: 17
CUSHION,CONSOLE BOX,LEFT
€ 12.50
18
9466349400
ref: 18
CUSHION CONSOLE BOX
€ 9.50
19
9570049400KEY
ref: 19
LOCK,CONSOLE BOX
9570049400KEY
€ 38.50
20
9469349400
ref: 20
PLATE,LOCK HOLDER,RIGHT
9469349400
€ 10.00
21
9469549400
ref: 21
PLATE,LOCK HOLDER,LEFT
9469549400
€ 8.00
22
9469449400
ref: 22
PLATE,LOCK HOLDER SUPPORT
€ 3.00
23
0150006127
ref: 23
BOLT
0150006127
€ 2.00
24
0832101067
ref: 24
WASHER,LOCK
0832101067
€ 2.50
25
0832201067
ref: 25
WASHER
0832201067
€ 2.00
26
0314204129
ref: 26
SCREW TAPPING
€ 1.50
27
0832221047
ref: 27
WASHER 4MM
0832221047
€ 2.00
28
9467249400291
ref: 28
COVER,SPEAKER,RIGHT
9467249400291
€ 9.50
29
9468249400291
ref: 29
COVER,SPEAKER,LEFT
9468249400291
€ 10.50
30
9467349400291
ref: 30
COVER,CB CONTROLER
9467349400291
€ 10.50
31
9468149400291
ref: 31
COVER,RADIO CASE,LEFT
9468149400291
€ 10.50
32
0323205305
ref: 32
SCREW (5X30)
€ 1.50
