STAND

GS1100GK 1982 (Z) GENERAL EXPORT (E01)

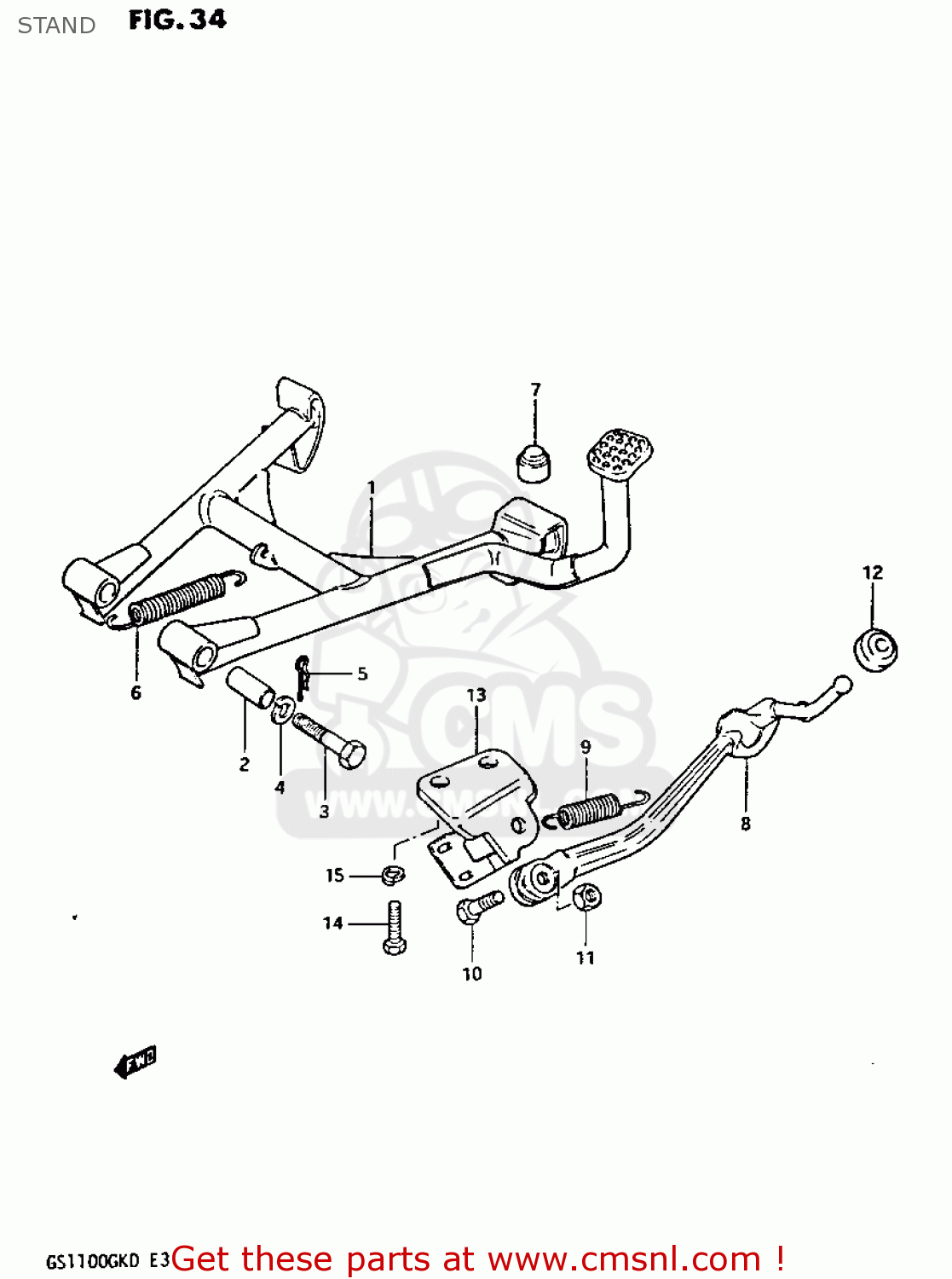

Stand diagram GS1100GK 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

4210049420
ref: 1

STAND,CENTER

€ 71.50

0918010040
ref: 2

SPACER(10X16X38.8)

€ 3.00

0910110030
ref: 3

BOLT(10X65)

€ 5.50

0832121107
ref: 4

WASHER,LOCK,10

€ 2.00

0938510001
ref: 5

CLIP

€ 1.50

0944320001
ref: 6

SPRING

€ 11.00

0932110001
ref: 7

CUSHION

€ 2.50

4231049450
ref: 8

STAND,SIDE

€ 72.50

0944317008
ref: 9

SPRING

€ 11.50

0910010187
ref: 10

BOLT(10X34)

€ 4.50

0914010024
ref: 11

NUT

€ 1.50

0932007001
ref: 12

CUSHION

€ 4.00

4233049450
ref: 13

BRACKET,SIDE STAND

€ 0.00

0910010007
ref: 14

BOLT

€ 4.50

0832121107
ref: 15

WASHER,LOCK,10

€ 2.00
