FRAME COVER (GS1100GK2/GKD)

GS1100GK 1982 (Z) GENERAL EXPORT (E01)

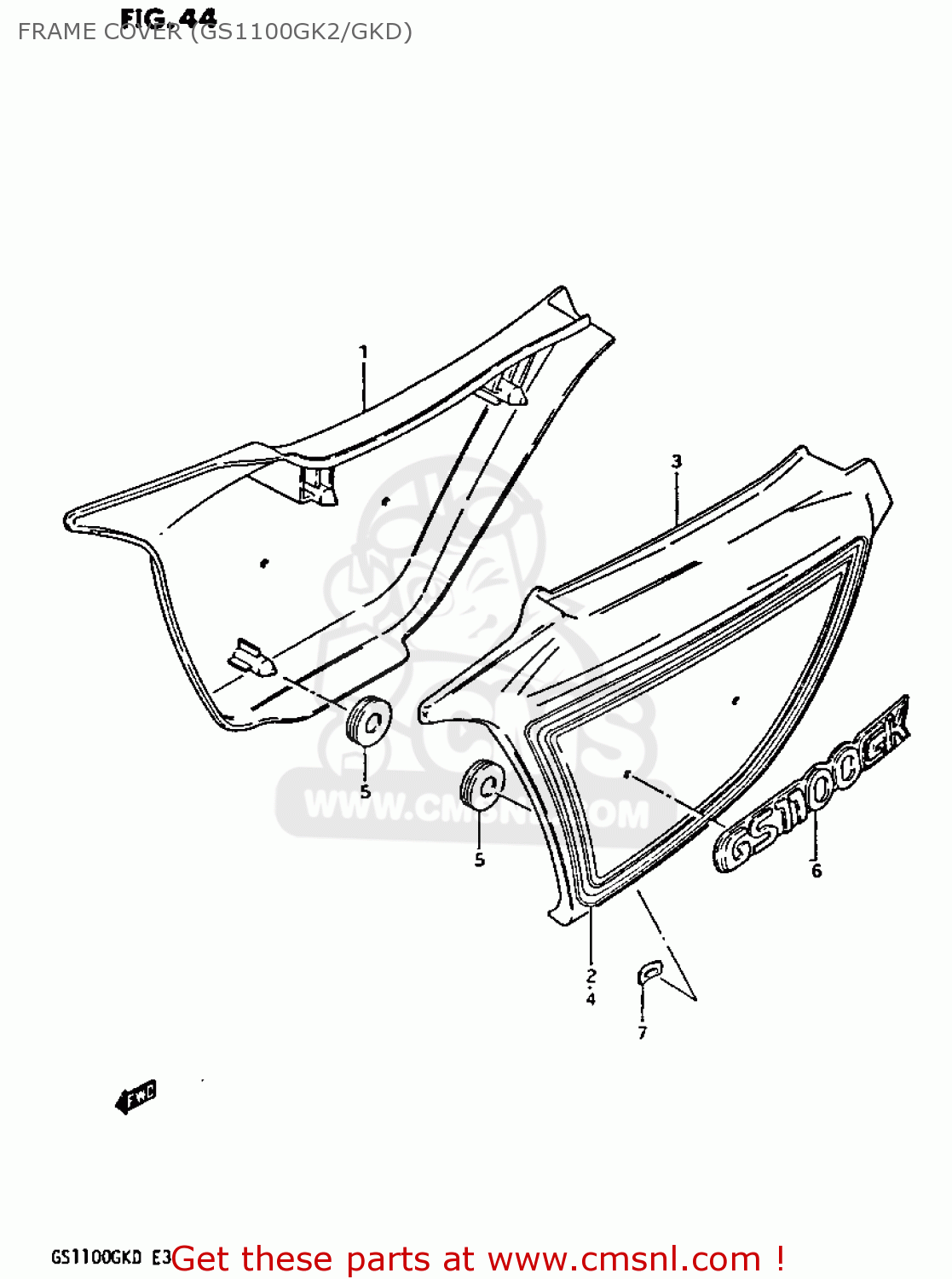

Frame cover (gs1100gk2/gkd) diagram GS1100GK 1982 (Z) GENERAL EXPORT (E01)

FRAME COVER (GS1100GK2/GKD) GS1100GK 1982 (Z) GENERAL EXPORT (E01)

FRAME COVER (GS1100GK2/GKD) GS1100GK 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

4711045110
ref: 1

COVER,FRAME,R

€ 76.50

2

681304945093A
ref: 2

TAPE SET,FRAME COVER

€ 0.00

3

4721045110
ref: 3

COVER,FRAME,L

€ 76.50

4

681404945093A
ref: 4

TAPE SET,FRAME COVER

€ 0.00

5

0932008018
ref: 5

CUSHION

€ 4.00

6

6813149420
ref: 6

EMBLEM,FRAME COVER

€ 18.50

7

0914803002
ref: 7

NUT

€ 3.00
