CYLINDER HEAD COVER (GS1100GKZ/GK2)

GS1100GK 1982 (Z) GENERAL EXPORT (E01)

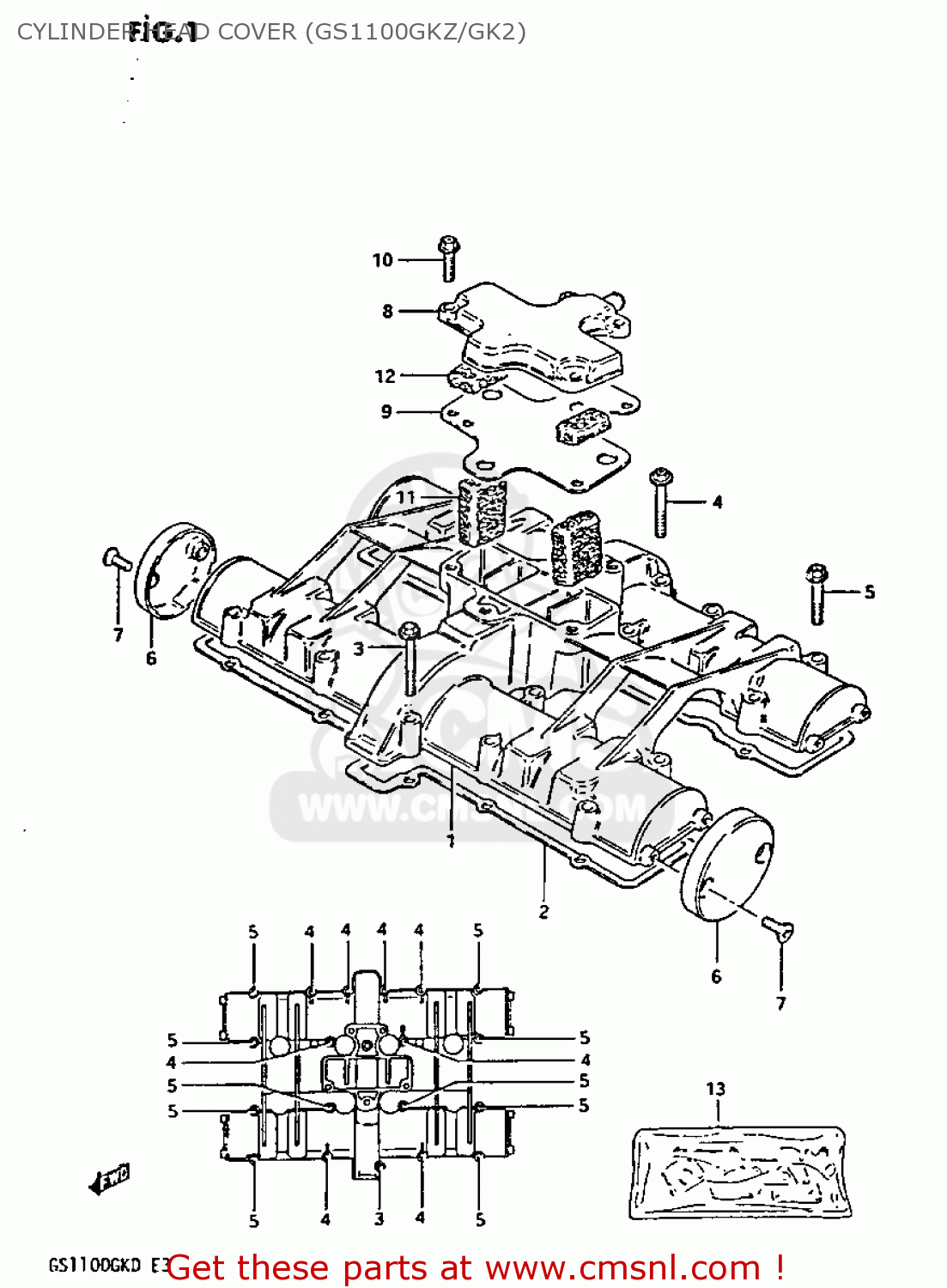

Cylinder head cover (gs1100gkz/gk2) diagram GS1100GK 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1117149020
ref: 1

COVER,CYLINDER HEAD

€ 146.50

1117349022
ref: 2

GASKET,CYL HEAD COVER (NAS)

€ 49.00

0151706458
ref: 3

BOLT,UNDER

€ 2.50

0151706408
ref: 4

BOLT

€ 2.50

0151706358
ref: 5

BOLT 6X35

€ 2.50

1117449000
ref: 6

CAP,CYLINDER HEAD COVER

€ 38.00

0912705013
ref: 7

SCREW(5X12)

€ 2.50

1117647012
ref: 8

COVER,BREATHER

€ 32.50

1117747001
ref: 9

GASKET (MCA)

€ 19.50

0151706257
ref: 10

BOLT 6X25

€ 2.50

1118645000
ref: 11

COVER,BREATHER

€ 5.50

1118745001
ref: 12

SEPARATOR,OIL BREATHER

€ 6.50

1140149878
ref: 13
OPT

GASKET SET

€ 248.50
