Buy Suzuki GS Parts Online


SEAT TAIL COVER

GS1100GK 1982 (Z) GENERAL EXPORT (E01)

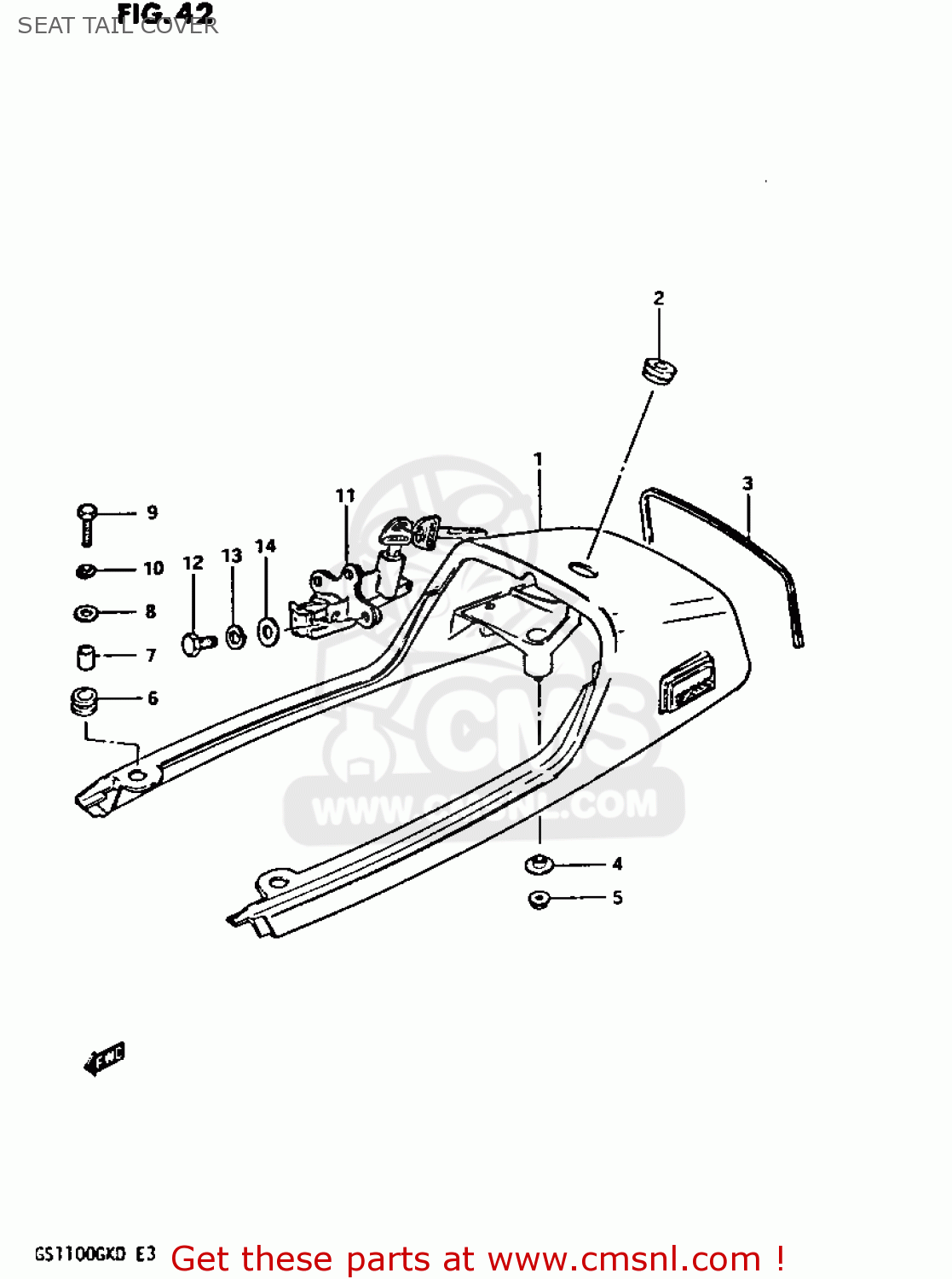

Seat tail cover diagram GS1100GK 1982 (Z) GENERAL EXPORT (E01)

SEAT TAIL COVER GS1100GK 1982 (Z) GENERAL EXPORT (E01)
SEAT TAIL COVER GS1100GK 1982 (Z) GENERAL EXPORT (E01)
SEAT TAIL COVER GS1100GK 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
4551049400
ref: 1-1
GS1100GKZ
COVER,SEAT TAIL
€ 117.50
1-2
4551049400
ref: 1-2
GS1100GKZ
COVER,SEAT TAIL
€ 117.50
1-3
455004944018A
ref: 1-3
GS1100GK2/GKD
COVER SET,SEAT TAIL
€ 0.00
2
4552249200
ref: 2
GROMMET,SEAT LOCK HOLE
4552249200
€ 5.50
3
4556249400
ref: 3
MOLDING,SEAT TAIL COVER
4556249400
€ 5.50
4
0916906016
ref: 4
WASHER
0916906016
€ 1.50
5
0831921068
ref: 5
NUT 6MM
0831921068
€ 2.00
6
0932010003
ref: 6
CUSHION
0932010003
€ 2.50
7
0918007013
ref: 7
SPACER (7X10X12)
€ 2.50
8
0916006004
ref: 8
WASHER (6.5X24X1.6)
0916006004
€ 1.50
9
0150006257
ref: 9
BOLT
0150006257
€ 2.00
10
0832101067
ref: 10
WASHER,LOCK
0832101067
€ 2.50
11
9570049830
ref: 11
LOCK SET,SEAT
9570049830
€ 81.50
12
0150006127
ref: 12
BOLT
0150006127
€ 2.00
13
0832101067
ref: 13
WASHER,LOCK
0832101067
€ 2.50
14
0832201067
ref: 14
WASHER
0832201067
€ 2.00
