FRONT FORK (GS1100GK2/GKD)

GS1100GK 1982 (Z) GENERAL EXPORT (E01)

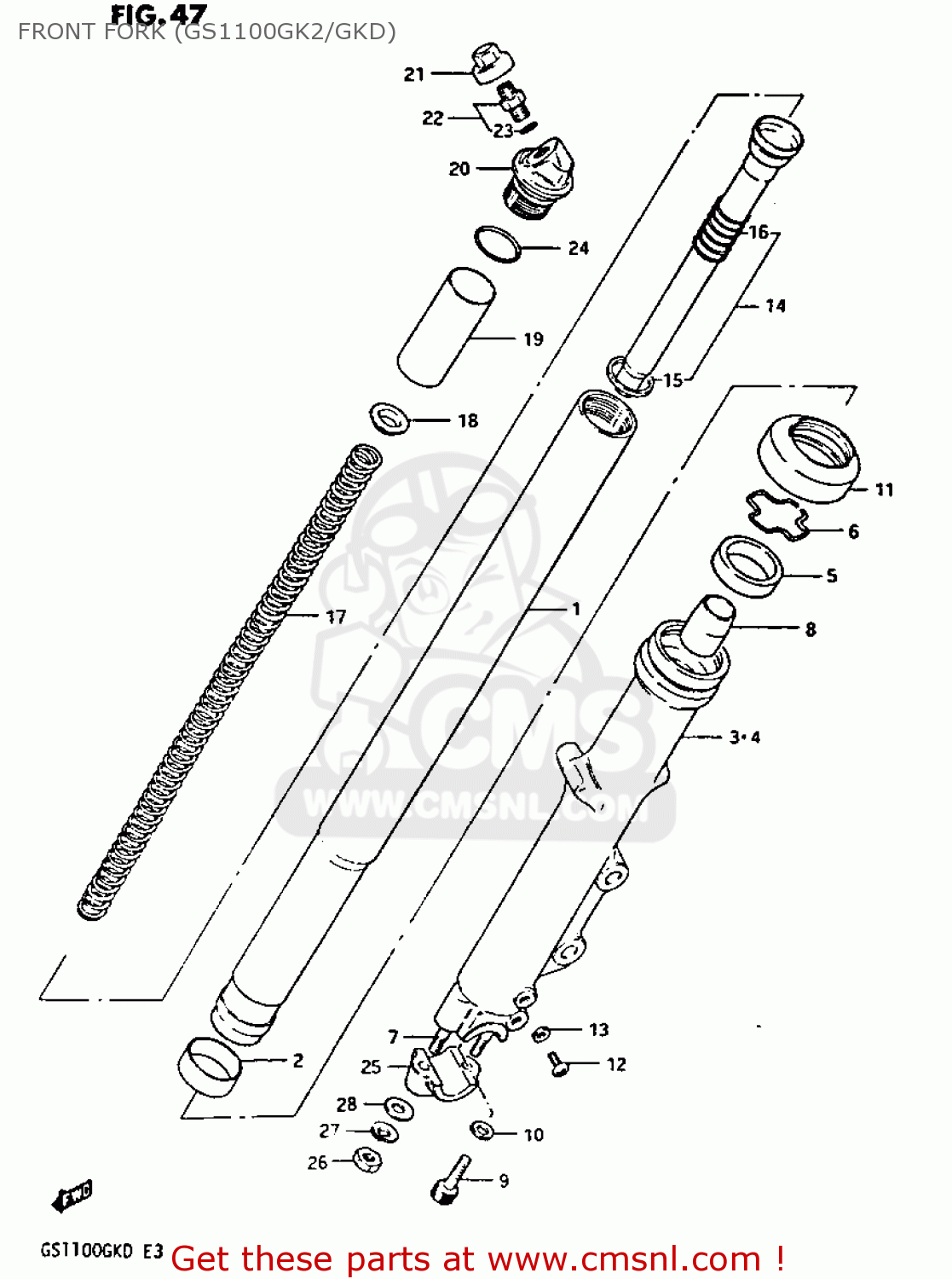

Front fork (gs1100gk2/gkd) diagram GS1100GK 1982 (Z) GENERAL EXPORT (E01)

FRONT FORK (GS1100GK2/GKD) GS1100GK 1982 (Z) GENERAL EXPORT (E01)
FRONT FORK (GS1100GK2/GKD) GS1100GK 1982 (Z) GENERAL EXPORT (E01)
FRONT FORK (GS1100GK2/GKD) GS1100GK 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
0
5110349440
ref: 0
DAMPER ASSEMBLY,RIGHT
€ 0.00
0
5110449440
ref: 0
DAMPER ASSEMBLY,LEFT
€ 0.00
1
5111049440
ref: 1
TUBE,FORK,INNER
€ 245.00
2
5112149440
ref: 2
METAL,SLIDE FRONT FORK
€ 16.50
3
5113049440
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 227.50
4
5114049440
ref: 4
TUBE,OUTER,LEFT
€ 0.00
5
5115349440
ref: 5
OIL SEAL,FRONT FORK
5115349440
€ 22.00
6
5115649440
ref: 6
RING,OIL SEAL STOPPER
5115649440
€ 5.50
7
0910808142
ref: 7
BOLT,STUD
0910808142
€ 3.00
8
5119514100
ref: 8
PIECE,OIL LOCK
€ 8.50
9
5114740300
ref: 9
BOLT,CYLINDER
5114740300
€ 5.50
10
5114840300
ref: 10
GASKET,CYLINDER (NAS)
5114840300
€ 2.50
11
5117349440
ref: 11
SEAL,DUST
5117349440
€ 11.50
12
0211204087
ref: 12
SCREW
0211204087
€ 1.50
13
5118303010
ref: 13
GASKET,DRAIN,PLUG (NAS)
5118303010
€ 3.00
14
5114649440
ref: 14
CYLINDER,FRONT FORK
€ 74.50
15
5119649440
ref: 15
RING,PISTON
€ 0.00
16
5117749440
ref: 16
SPRING,REBOUND
5117749440
€ 6.50
17
5117149440
ref: 17
SPRING,FRONT FORK
€ 30.00
18
5117240300
ref: 18
GUIDE
5117240300
€ 5.00
19
5117649440
ref: 19
SPACER,SPRING
€ 4.50
20
5135149440
ref: 20
CAP,FORK INNER TUBE
€ 27.00
21
5129449000
ref: 21
CAP,VALVE
5129449000
€ 22.50
22
5129349001
ref: 22
VALVE
5129349001
€ 18.00
23
5111741211
ref: 23
O RING
5111741211
€ 6.50
24
5111740300
ref: 24
O RING
5111740300
€ 2.50
25
5113249440
ref: 25
HOLDER,AXLE
€ 28.00
26
0914008005
ref: 26
NUT (8MM)
0914008005
€ 1.50
27
0832121088
ref: 27
LOCK WASHER
0832121088
€ 2.00
28
0832221088
ref: 28
WASHER
0832221088
€ 2.00
