CYLINDER

GS1100GK 1982 (Z) GENERAL EXPORT (E01)

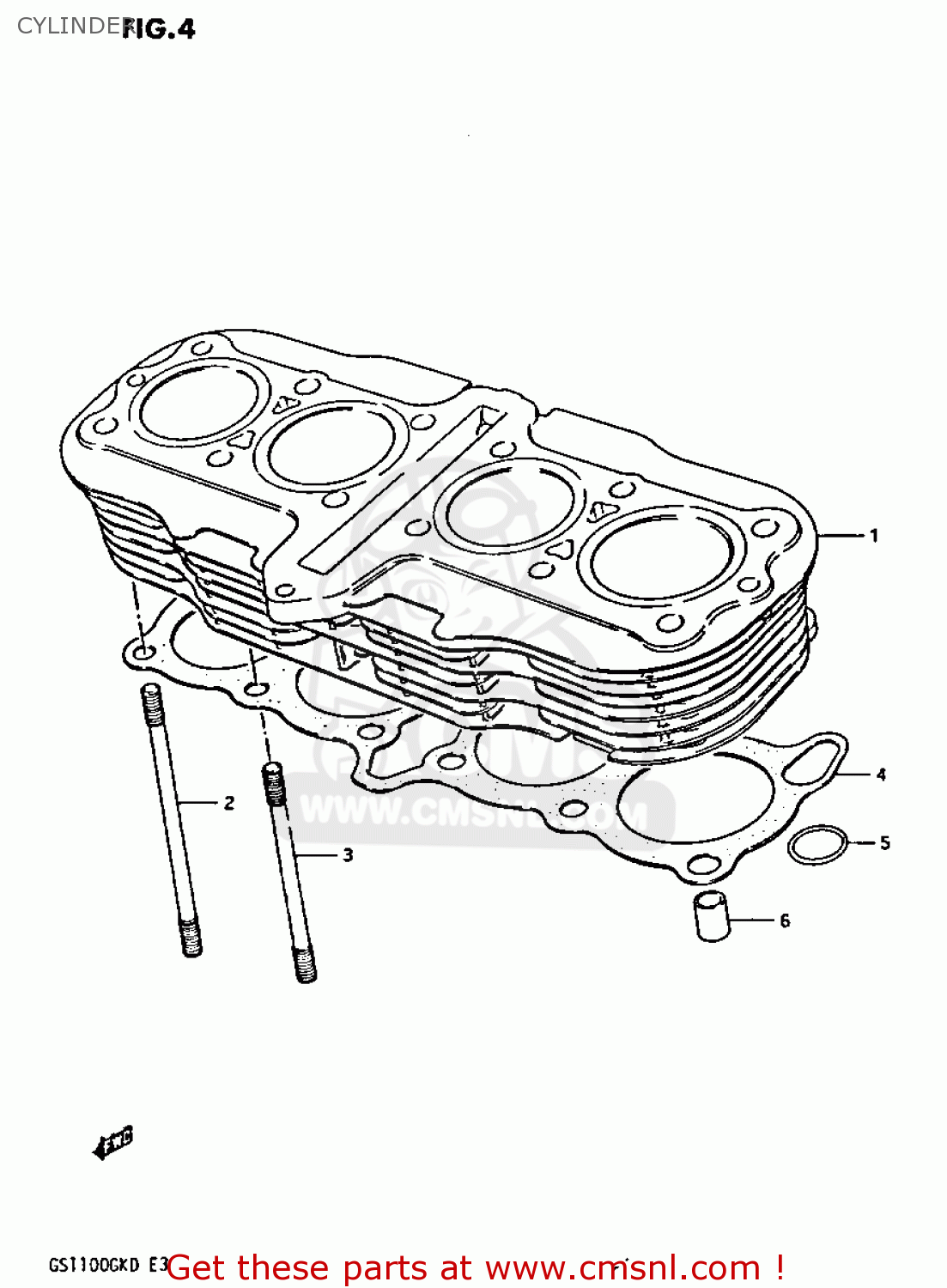

Cylinder diagram GS1100GK 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

1121049400
ref: 1-1
GS1100GKZ/GK2

CYLINDER

€ 915.50

1-2

1121049410
ref: 1-2
GS1100GKD

CYLINDER

€ 0.00

0910810027
ref: 2

BOLT,STUD

€ 12.00

0910810112
ref: 3

BOLT,STUD

€ 9.00

1124149401H17
ref: 4
GS1100GKD

GASKET,CYLINDER (NAS)

€ 56.50

5-1

0928021004
ref: 5-1
-E.NO.113974

O RING(D:3.05)

€ 4.00

5-2

0928021011A
ref: 5-2
E.NO.113975-

O-RING

€ 3.00

0920613001
ref: 6

PIN

€ 2.50
