FRONT FORK (GS1100GKZ)

GS1100GK 1982 (Z) GENERAL EXPORT (E01)

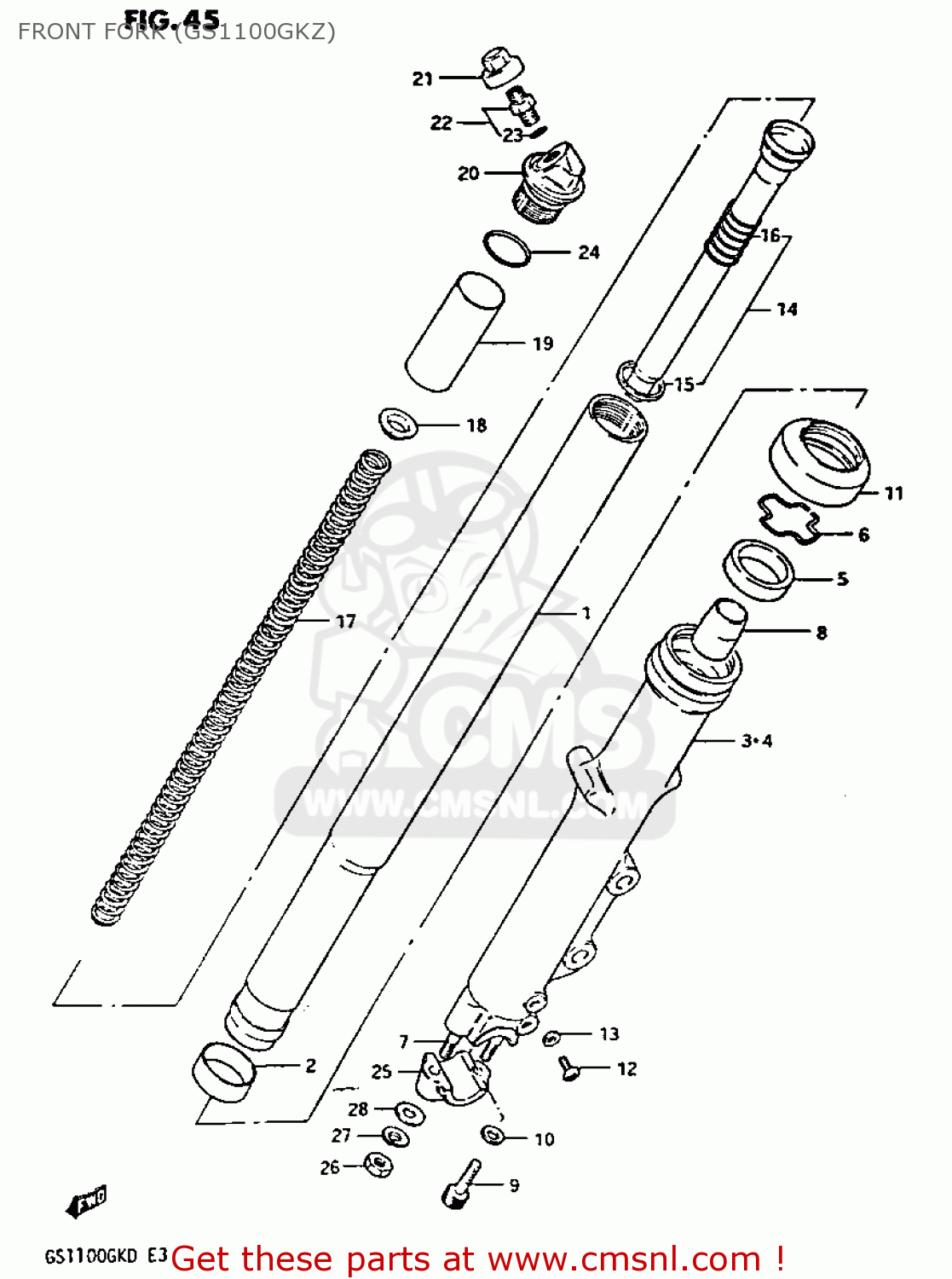

Front fork (gs1100gkz) diagram GS1100GK 1982 (Z) GENERAL EXPORT (E01)

FRONT FORK (GS1100GKZ) GS1100GK 1982 (Z) GENERAL EXPORT (E01)
FRONT FORK (GS1100GKZ) GS1100GK 1982 (Z) GENERAL EXPORT (E01)
FRONT FORK (GS1100GKZ) GS1100GK 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
0
5110349440
ref: 0
DAMPER ASSEMBLY,RIGHT
€ 0.00
0
5110449440
ref: 0
DAMPER ASSEMBLY,LEFT
€ 0.00
1
5111049440
ref: 1
TUBE,FORK,INNER
€ 245.00
2
5112149440
ref: 2
METAL,SLIDE FRONT FORK
€ 16.50
3
5113049440
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 227.50
4
5114049440
ref: 4
TUBE,OUTER,LEFT
€ 0.00
5
5115349440
ref: 5
OIL SEAL,FRONT FORK
5115349440
€ 22.00
6
5115649440
ref: 6
RING,OIL SEAL STOPPER
5115649440
€ 5.50
7
0910808142
ref: 7
BOLT,STUD
0910808142
€ 3.00
8
5119514100
ref: 8
PIECE,OIL LOCK
€ 8.50
9
5114740300
ref: 9
BOLT,CYLINDER
5114740300
€ 5.50
10
5114840300
ref: 10
GASKET,CYLINDER (NAS)
5114840300
€ 2.50
11
5117349440
ref: 11
SEAL,DUST
5117349440
€ 11.50
12
0211204087
ref: 12
SCREW
0211204087
€ 1.50
13
5118303010
ref: 13
GASKET,DRAIN,PLUG (NAS)
5118303010
€ 3.00
14
5114649440
ref: 14
CYLINDER,FRONT FORK
€ 74.50
15
5119649440
ref: 15
RING,PISTON
€ 0.00
16
5117749440
ref: 16
SPRING,REBOUND
5117749440
€ 6.50
17
5117149440
ref: 17
SPRING,FRONT FORK
€ 30.00
18
5117240300
ref: 18
GUIDE
5117240300
€ 5.00
19
5117649440
ref: 19
SPACER,SPRING
€ 4.50
20
5135149440
ref: 20
CAP,FORK INNER TUBE
€ 27.00
21
5129449000
ref: 21
CAP,VALVE
5129449000
€ 22.50
22
5129349001
ref: 22
VALVE
5129349001
€ 18.00
23
5111741211
ref: 23
O RING
5111741211
€ 6.50
24
5111740300
ref: 24
O RING
5111740300
€ 2.50
25
5113249440
ref: 25
HOLDER,AXLE
€ 28.00
26
0914008005
ref: 26
NUT (8MM)
0914008005
€ 1.50
27
0832121088
ref: 27
LOCK WASHER
0832121088
€ 2.00
28
0832221088
ref: 28
WASHER
0832221088
€ 2.00
