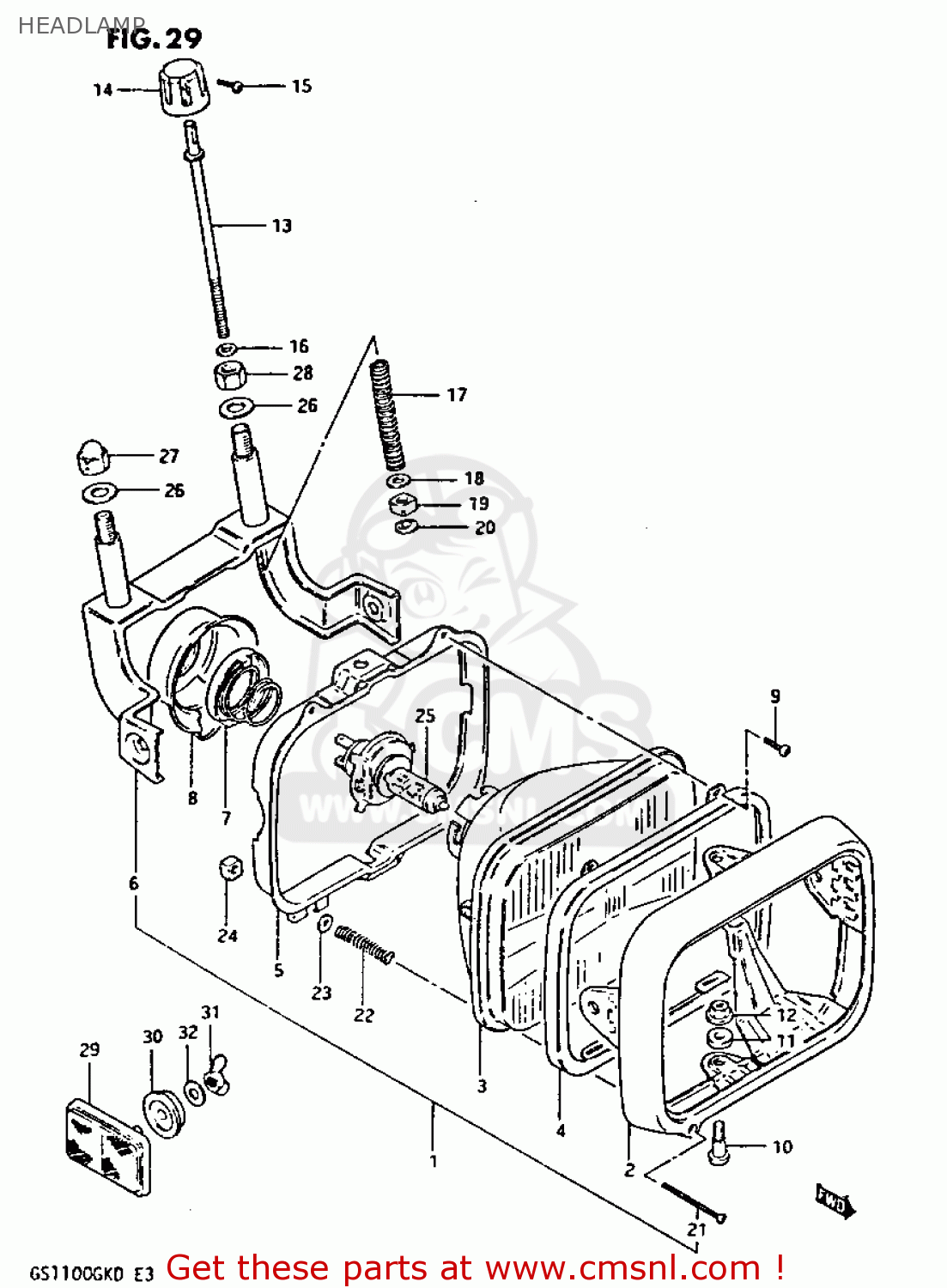

HEADLAMP

ref

part #

description

quantity

1

3510049430999
ref: 1

HEADLAMP ASSEMBLY

€ 0.00

2

3511149430
ref: 2

RIM,HEADLAMP

€ 0.00

3

3512149230
ref: 3

LAMP UNIT

€ 114.50

4

3512749430
ref: 4

RETAINER,HEADLAMP

€ 0.00

5

3513049430
ref: 5

RING,MOUNTING

€ 0.00

6

3538149430
ref: 6

HOUSING

€ 0.00

7

3513649200
ref: 7

HOLDER

€ 8.50

8

3517349200
ref: 8

COVER,HEADLAMP SOCKET

€ 12.50

9

0211203087
ref: 9

SCREW

€ 1.50

10

3513649430
ref: 10

SCREW

€ 0.00

11

3513345600
ref: 11

SPACER

€ 3.50

12

3513525611
ref: 12

NUT,ADJUSTING

€ 2.50

13

3515149410
ref: 13

SCREW,HEADLAMP ADJUST

€ 0.00

14

3516149430
ref: 14

KNOB,ADJUSTER

€ 0.00

15

0211203128
ref: 15

SCREW 3X12

€ 2.50

16

3515749430
ref: 16

WASHER

€ 0.00

17

3515449410
ref: 17

SPRING,HEADLAMP ADJUST

€ 0.00

18

3515749320
ref: 18

WASHER

€ 2.00

19

3519249430
ref: 19

SPACER

€ 0.00

20

3515249330
ref: 20

NUT,HEADLAMP ADJUSTER

€ 2.00

21

3515149430
ref: 21

SCREW,HEADLAMP ADJUST

€ 3.00

22

3515449430
ref: 22

SPRING,HEADLAMP ADJUST

€ 2.00

23

3515727630
ref: 23

WASHER

€ 2.50

24

3513545600
ref: 24

NUT

€ 3.00

25

0947112060
ref: 25
EXECUTED LOCALLY

BULB(12V60/55W,H4)

€ 8.00

26

0832211128
ref: 26

WASHER

€ 2.00

27

0914512003
ref: 27

NUT

€ 6.00

28

0831012128
ref: 28

NUT

€ 3.00

29

3595049410
ref: 29

REFLECTOR,REFLEX

€ 0.00

30

3595449410
ref: 30

SPACER,FRONT REFLEX REFLECTOR

€ 0.00

31

0831712058
ref: 31

NUT, WING

€ 2.00

32

0832221057
ref: 32

WASHER

€ 2.50

all assemblies
