REAR MASTER CYLINDER

GS1100GK 1982 (Z) GENERAL EXPORT (E01)

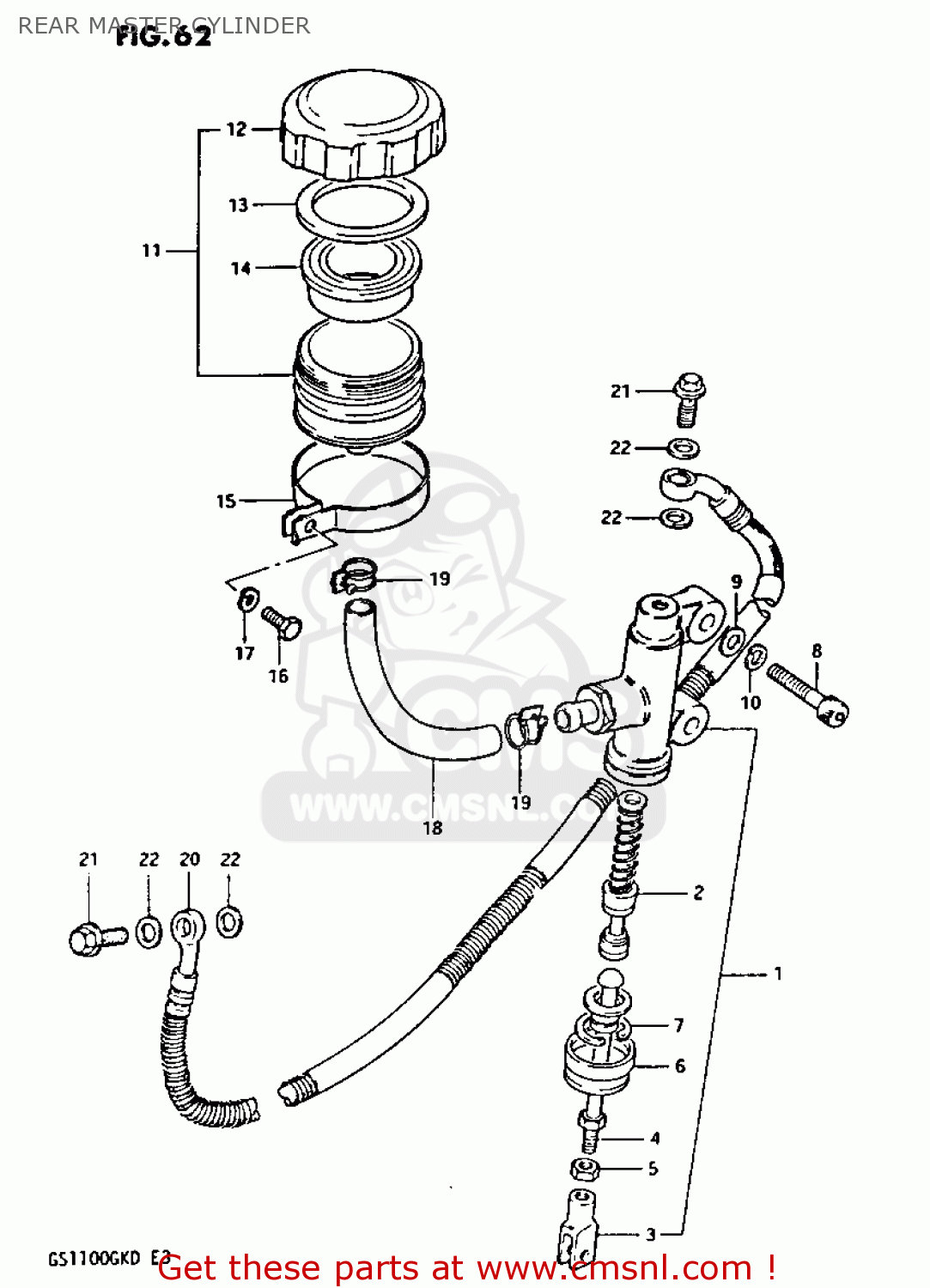

Rear master cylinder diagram GS1100GK 1982 (Z) GENERAL EXPORT (E01)

REAR MASTER CYLINDER GS1100GK 1982 (Z) GENERAL EXPORT (E01)

REAR MASTER CYLINDER GS1100GK 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

6960045302
ref: 1

CYLINDER ASSY,RR MASTER

€ 177.00

2

6960045820
ref: 2

PISTON/CUP SET

€ 53.00

3

6969234300
ref: 3

YOKE

€ 11.00

4

6967045301
ref: 4

ROD,REAR MASTER CYLINDER

€ 13.50

5

6969334300
ref: 5

NUT,MASTER CYLINDER

€ 1.50

6

6969145001
ref: 6

BOOT

€ 6.50

7

5116270040
ref: 7

CIRCLIP

€ 3.00

8

0711008305
ref: 8

BOLT, REAR (8X30)

€ 3.00

9

0832211088
ref: 9

WASHER

€ 2.00

10

0832131087
ref: 10

WASHER,LOCK

€ 2.00

11

6974047002
ref: 11

TANK ASSEMBLY,RESERVOIR

€ 41.00

12

5966920A01
ref: 12

CAP

€ 16.50

13

5966818441
ref: 13

PLATE,DIAPHRAGM

€ 3.50

14

5966718441
ref: 14

DIAPHRAGM

€ 8.50

15

0940251602
ref: 15

CLAMP

€ 6.50

16

0150006167
ref: 16

BOLT

€ 3.00

17

0832101067
ref: 17

WASHER,LOCK

€ 2.50

18

6973145300
ref: 18

HOSE,RESERVOIR TANK

€ 3.50

19

0940016302
ref: 19

CLAMP

€ 4.50

20

6948049410
ref: 20

HOSE,REAR BRAKE

€ 72.00

21-1

0936010007
ref: 21-1
GS1100GKZ

BOLT,UNION

€ 6.50

21-2

0936010009
ref: 21-2
GS1100GK2/GKD

BOLT UNION

€ 6.50

22

0916110009
ref: 22

WASHER(10X15X1.5)

€ 2.00
