CRANKCASE (GS1100GKD)

GS1100GK 1982 (Z) GENERAL EXPORT (E01)

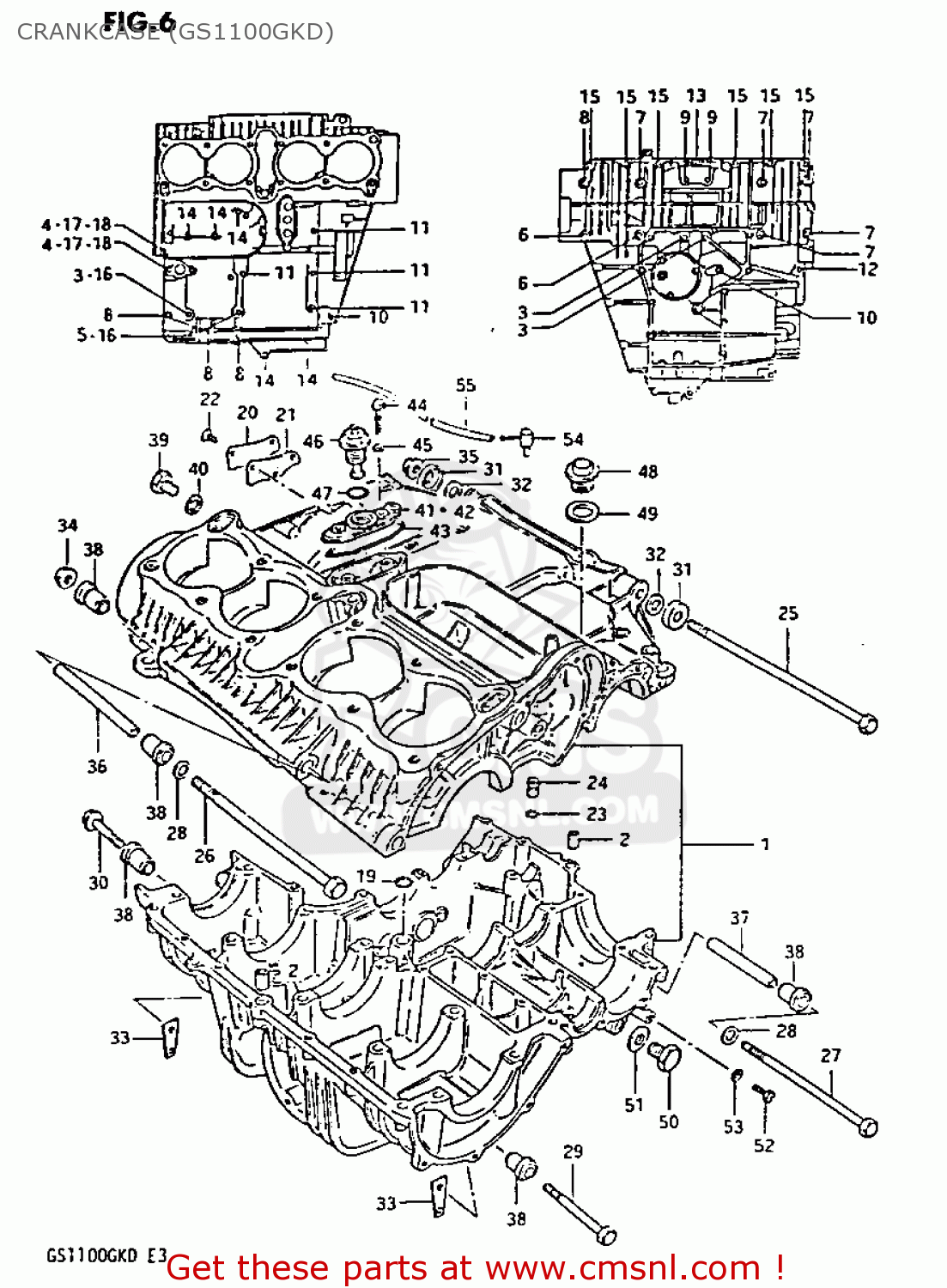

Crankcase (gs1100gkd) diagram GS1100GK 1982 (Z) GENERAL EXPORT (E01)

CRANKCASE (GS1100GKD) GS1100GK 1982 (Z) GENERAL EXPORT (E01)
CRANKCASE (GS1100GKD) GS1100GK 1982 (Z) GENERAL EXPORT (E01)
CRANKCASE (GS1100GKD) GS1100GK 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
1130049881
ref: 1
CRANKCASE SET
€ 0.00
2
0920613001
ref: 2
PIN
0920613001
€ 2.50
3
0910308182
ref: 3
BOLT(8X125)
0910308182
€ 4.50
4
0910308092
ref: 4
BOLT 8X110
€ 0.00
5
0910308093
ref: 5
BOLT
€ 4.00
6
0910308061
ref: 6
BOLT
€ 3.50
7
0151708905
ref: 7
BOLT (8X90)
€ 3.50
8
0151708655
ref: 8
BOLT (8X65)
€ 3.00
9
0151708605
ref: 9
BOLT 8X60
€ 3.50
10
0151706905
ref: 10
BOLT (6X90)
€ 3.50
11
0151706755
ref: 11
BOLT (6X75)
€ 2.50
12
0151706555
ref: 12
BOLT 6X55
€ 2.00
13
0151706505
ref: 13
BOLT 6X50
0151706505
€ 2.00
14
0151706455
ref: 14
BOLT (6X45)
€ 2.50
15
0151706354
ref: 15
BOLT 6X35
€ 2.50
16
0831616085
ref: 16
NUT 8MM
0831616085
€ 3.00
17
0831311088
ref: 17
NUT
0831311088
€ 2.50
18
0916808008
ref: 18
GASKET 8.2X14X1 (NAS)
0916808008
€ 1.00
19
0928013001
ref: 19
O RING(D:3.2,ID:12.9)
0928013001
€ 4.00
20
1139445000
ref: 20
CAP,OIL GALLERY
1139445000
€ 6.50
21
1149745000H17
ref: 21
GASKET,OIL GALLERY CAP (NAS)
1149745000H17
€ 13.00
22
0212206167
ref: 22
SCREW
0212206167
€ 2.00
23
0928003003
ref: 23
O RING(D:1.05,ID:3.1)
0928003003
€ 2.50
24
0936405005
ref: 24
UNION
0936405005
€ 3.00
25
0910010185
ref: 25
BOLT
€ 0.00
26
0910110010
ref: 26
BOLT 10X250
0910110010
€ 49.50
27
0910010171
ref: 27
BOLT
€ 11.50
28
0832211104
ref: 28
WASHER 10MM
0832211104
€ 2.50
29
0910310060
ref: 29
BOLT
€ 0.00
30
0151710558
ref: 30
BOLT 10X55
€ 3.00
31
0916910016
ref: 31
WASHER
€ 0.00
32
0916010005
ref: 32
WASHER(10.5X20X3.2)
0916010005
€ 2.00
33
0915910038
ref: 33
NUT
0915910038
€ 3.00
34
0831931107
ref: 34
NUT
0831931107
€ 3.00
35
0831931105
ref: 35
NUT 10MM
€ 3.00
36
0918010077
ref: 36
SPACER
€ 0.00
37
0918010078
ref: 37
SPACER
€ 2.50
38
0931910042
ref: 38
BUSH
0931910042
€ 16.50
39
0924714026
ref: 39
PLUG(14X12)
0924714026
€ 3.50
40
0916814004
ref: 40
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
41
1644545010
ref: 41
HOUSING,OIL PRESSURE SWITCH
1644545010
€ 28.00
42
1644549010
ref: 42
OPT
HOUSING,OIL PRESSURE SWITCH
€ 20.00
43
1644845000
ref: 43
O RING,PRESSURE SWITCH HOUSING
1644845000
€ 10.50
44
0151706254
ref: 44
BOLT
€ 2.50
45
0916806023
ref: 45
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
46
3782045060
ref: 46
SWITCH ASSEMBLY
3782045060
€ 30.00
47
0928019001
ref: 47
O RING(D:1.9,ID:18.8)
0928019001
€ 1.50
48
0924720002
ref: 48
PLUG
0924720002
€ 4.50
49
0916820004
ref: 49
GASKET
€ 1.50
50
0924714019
ref: 50
PLUG
€ 5.50
51
0916814004
ref: 51
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
52
0912806004
ref: 52
SCREW(6X10)
0912806004
€ 1.50
53
0916806023
ref: 53
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
54
2482145100
ref: 54
BPLUG,BEVEL GEAR BREATHER
2482145100
€ 7.00
55
0934302009
ref: 55
HOSE
€ 12.00
