BATTERY
GS1100GK 1982 (Z) USA (E03)

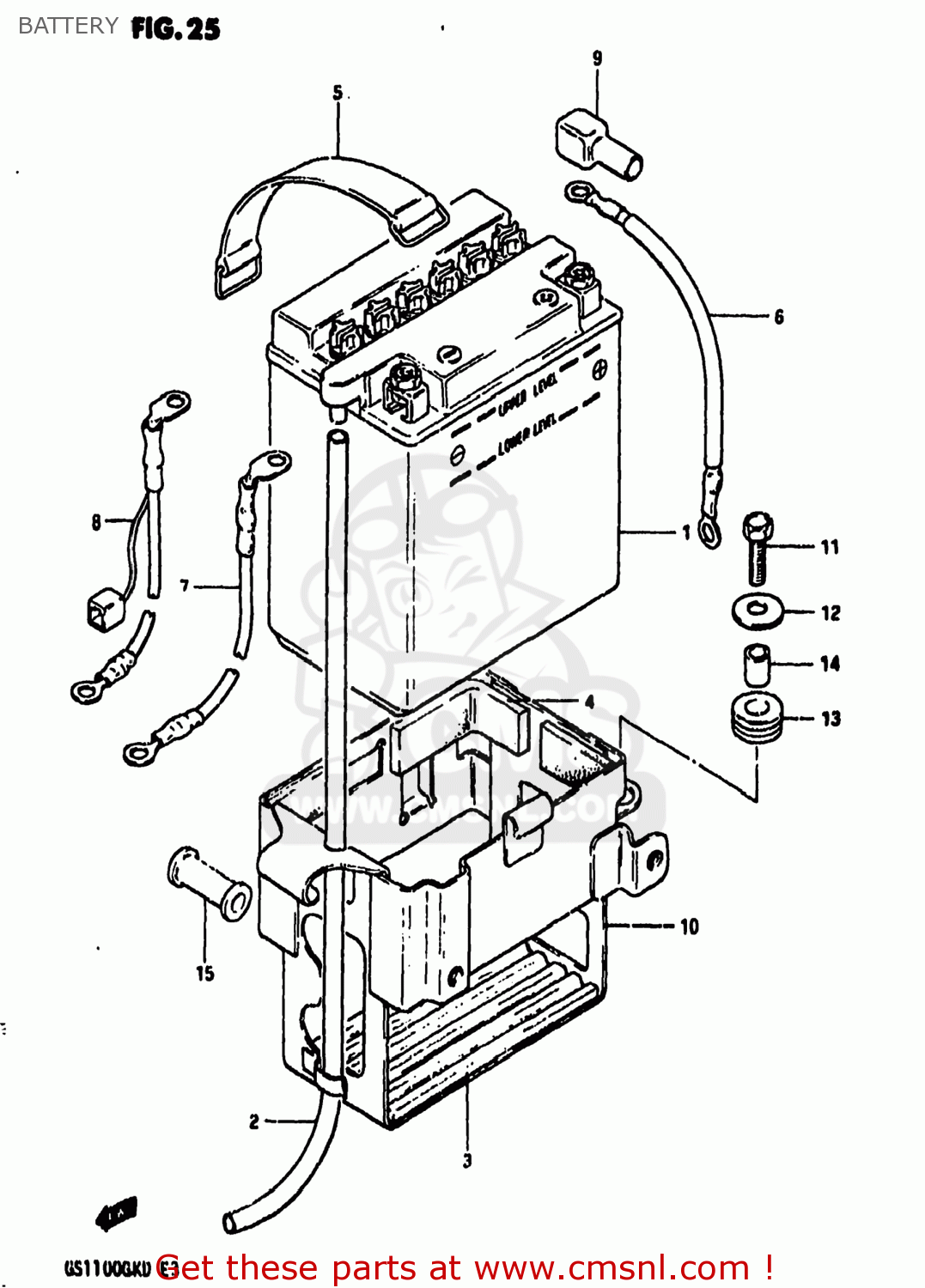

Battery diagram GS1100GK 1982 (Z) USA (E03)
BATTERY GS1100GK 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3361049210
ref: 1
BATTERY ASSY (12V)
€ 110.00
2
3368031003
ref: 2
33680-16A10
HOSE,BATTERY EXHAUST
€ 4.50
3
3365131000
ref: 3
PROTECTOR,BATTERY
€ 29.00
4
3365249000
ref: 4
PROTECTOR(20X90)X4
€ 2.00
5
0946200007
ref: 5
BAND
€ 5.00
6
3382049400
ref: 6
33860-05550
WIRE,BATTERY PLUS
€ 10.50
7
3385049400
ref: 7
LEAD WIRE,BATTERY(-)
€ 14.50
8
3385038410
ref: 8
33850-38420
CORD,BATTERY MINUS
€ 15.00
9
3362445000
ref: 9
CAP,TERMINAL
€ 5.50
10
4154049400
ref: 10
HOLDER,BATTERY
€ 0.00
11
0110706168
ref: 11
01500-06167
BOLT, UPPER
€ 3.00
12
0916006012
ref: 12
09160-06054
WASHER(6,5X22X1.6)
€ 2.00
13
0932008013
ref: 13
CUSHION
€ 4.00
14
0918006001
ref: 14
SPACER(6.2X8.3X5.7)
€ 2.00
15
0932008022
ref: 15
CUSHION
€ 3.50
