CRANKCASE (GS1100GKD)
GS1100GK 1982 (Z) USA (E03)

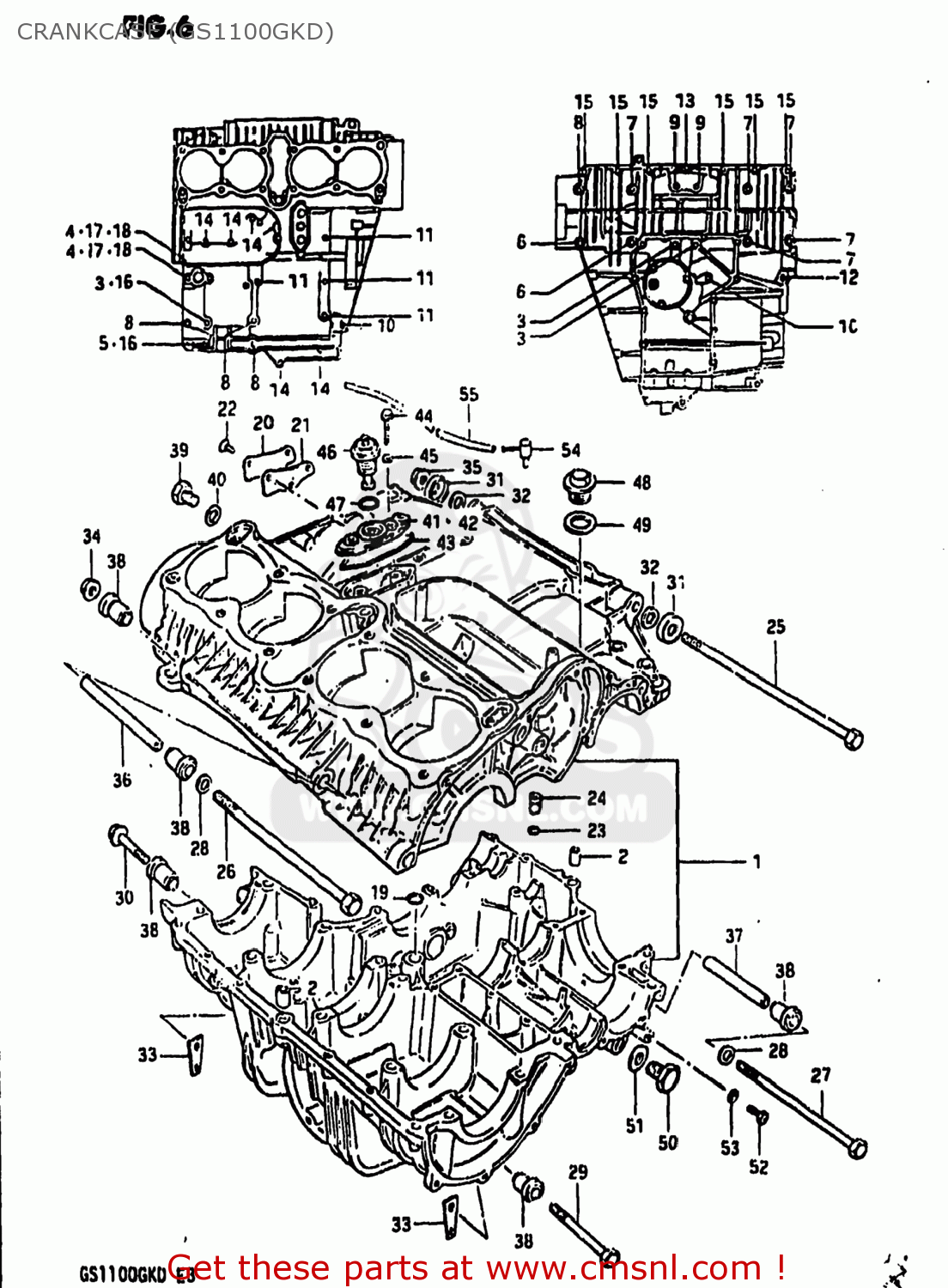

Crankcase (gs1100gkd) diagram GS1100GK 1982 (Z) USA (E03)
CRANKCASE (GS1100GKD) GS1100GK 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130049880
ref: 1
11300-49881
CRANKCASE ASSEMBLY
€ 0.00
2
0920613001
ref: 2
04211-13189
PIN
€ 2.50
3
0910308094
ref: 3
09103-08182
BOLT
€ 4.50
4
0910308092
ref: 4
BOLT 8X110
€ 0.00
5
0910308093
ref: 5
09103-08179
BOLT
€ 4.00
6
0910308061
ref: 6
09103-08230
BOLT
€ 3.50
7
0151708905
ref: 7
01550-0890B
BOLT (8X90)
€ 3.50
8
0151708655
ref: 8
01550-0865A
BOLT (8X65)
€ 3.00
9
0151708605
ref: 9
01550-0860A
BOLT 8X60
€ 3.50
10
0151706905
ref: 10
01550-0690B
BOLT (6X90)
€ 3.50
11
0151706755
ref: 11
01550-0675A
BOLT (6X75)
€ 2.50
12
0151706555
ref: 12
01550-0655B
BOLT 6X55
€ 2.00
13
0151706505
ref: 13
01550-0650A
BOLT 6X50
€ 2.00
14
0151706455
ref: 14
01550-0645A
BOLT (6X45)
€ 2.50
15
0151706355
ref: 15
01550-0635A
BOLT
€ 2.50
16
0831616085
ref: 16
08316-1008B
NUT 8MM
€ 3.00
17
0831311088
ref: 17
08313-10087
NUT
€ 2.50
18
0916808008
ref: 18
09168-08016
GASKET 8.2X14X1 (NAS)
€ 1.00
19
0928013001
ref: 19
O RING(D:3.2,ID:12.9)
€ 4.00
20
1139445000
ref: 20
CAP,OIL GALLERY
€ 6.50
21
1149745000
ref: 21
11497-45000-H17
GASKET,OIL GALLERY (MCA)
€ 13.00
22
0212206168
ref: 22
02122-06167
SCREW
€ 2.00
23
0928003003
ref: 23
O RING(D:1.05,ID:3.1)
€ 2.50
24
0936405005
ref: 24
UNION
€ 3.00
25
0910010185
ref: 25
BOLT
€ 0.00
26
0910110010
ref: 26
09101-10010-XC0
BOLT 10X250
€ 49.50
27
0910010171
ref: 27
BOLT
€ 11.50
28
0832211105
ref: 28
08322-0110A
WASHER
€ 2.50
29
0910310060
ref: 29
BOLT
€ 0.00
30
0151710558
ref: 30
01550-10557
BOLT 10X55
€ 3.00
31
0916910016
ref: 31
WASHER
€ 0.00
32
0916010005
ref: 32
WASHER(10.5X20X3.2)
€ 2.00
33
0915910038
ref: 33
NUT
€ 3.00
34
0831931108
ref: 34
NUT
€ 3.00
35
0831931105
ref: 35
08319-3110A
NUT 10MM
€ 3.00
36
0918010077
ref: 36
SPACER
€ 0.00
37
0918010078
ref: 37
SPACER
€ 2.50
38
0931910042
ref: 38
BUSH
€ 16.50
39
0924714012
ref: 39
09247-14026
PLUG (14X12)
€ 3.50
40
0916814004
ref: 40
GASKET(14X19.2X2) (NAS)
€ 2.50
41
1644545010
ref: 41
16445-45000
HOUSING,OIL PRESSURE SWITCH
€ 28.00
42
1644549010
ref: 42
HOUSING,OIL PRESSURE SWITCH
€ 20.00
43
1644845000
ref: 43
O RING,PRESSURE SWITCH HOUSING
€ 10.50
44
0151406255
ref: 44
01550-0625A
BOLT
€ 1.50
45
0916806015
ref: 45
09168-06023
WASHER
€ 2.00
46
3782045060
ref: 46
37820-45061
SWITCH ASSEMBLY
€ 30.00
47
0928019001
ref: 47
O RING(D:1.9,ID:18.8)
€ 1.50
48
0924720002
ref: 48
09248-20003
PLUG
€ 4.50
49
0916820004
ref: 49
09168-20003
GASKET
€ 1.50
50
0924714019
ref: 50
09247-14036
PLUG
€ 5.50
51
0916814004
ref: 51
GASKET(14X19.2X2) (NAS)
€ 2.50
52
0912806004
ref: 52
09128-06044
SCREW(6X10)
€ 1.50
53
0916806015
ref: 53
09168-06023
WASHER
€ 2.00
54
2482145100
ref: 54
BPLUG,BEVEL GEAR BREATHER
€ 7.00
55
0934302009
ref: 55
09352-20503-600
HOSE
€ 12.00
