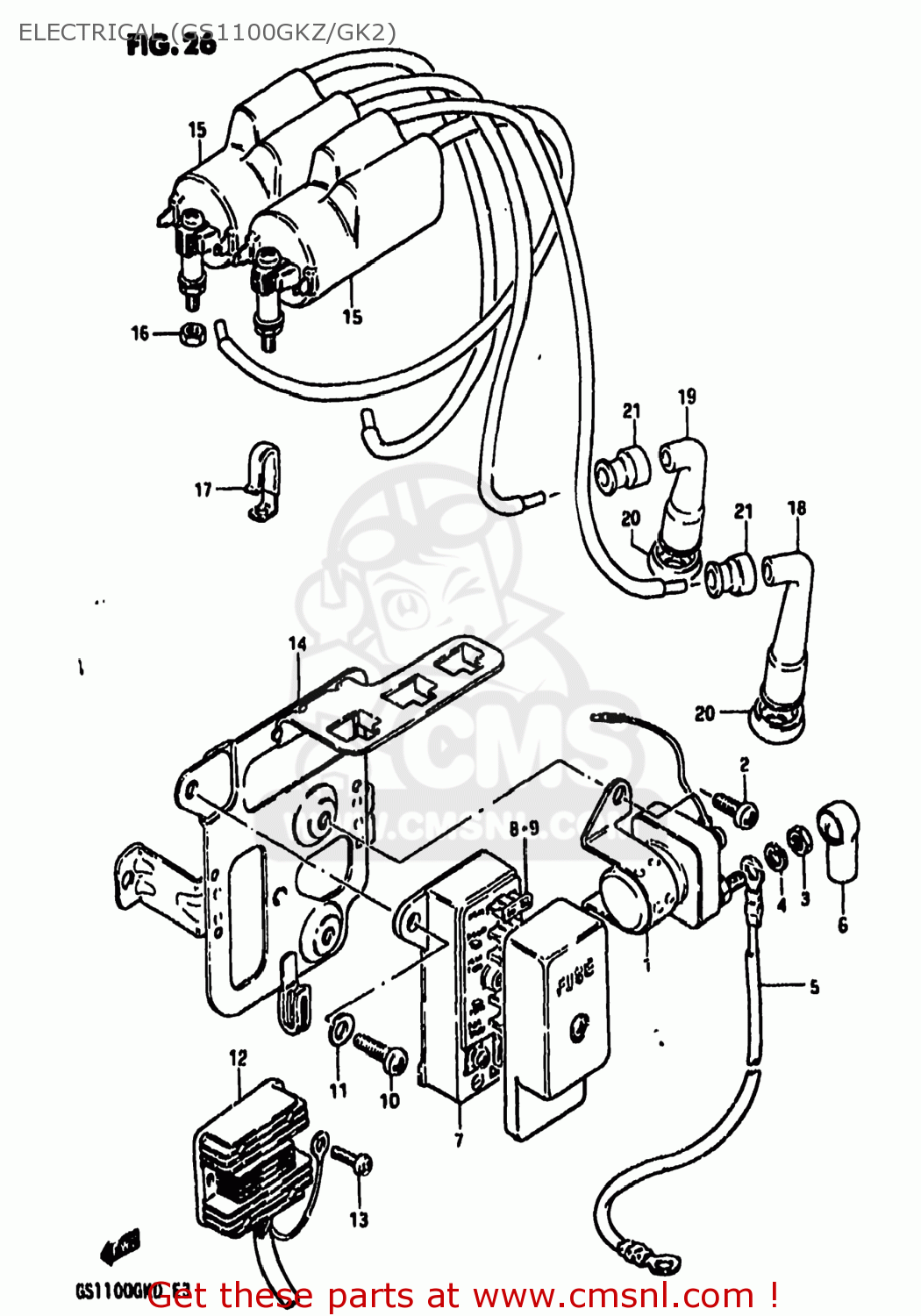

ELECTRICAL (GS1100GKZ/GK2)

ref

part #

description

quantity

1

3180037020
ref: 1

RELAY ASSY,STARTING MOTOR

€ 105.00

2

0211206108
ref: 2
02112-06107

SCREW

€ 1.50

3

0831022068
ref: 3
08310-00067

NUT 6MM

€ 2.50

4

0832121068
ref: 4
08321-01067

LOCK WASHER

€ 2.50

5

3385034301
ref: 5
33850-48B00

CABLE,STARTING MOTOR

€ 50.00

6-1

3186135100
ref: 6-1
31861-48B10

CAP,STARTER RELAY

€ 4.50

6-2

3186149400
ref: 6-2

CAP,STARTER RELAY

€ 0.00

7

3674049400
ref: 7
36740-45D00

BOX ASSEMBLY,FUSE

€ 69.50

8

0948110101
ref: 8

FUSE(10A)

€ 2.50

9

0948115101
ref: 9

FUSE(15A)

€ 1.50

10

0211206128
ref: 10
02112-06127

SCREW 6X12

€ 2.00

11

0832221068
ref: 11
08322-01067

WASHER

€ 2.00

12

3280049420
ref: 12
32800-43X51

RECTIFIER ASSEMBLY

€ 380.50

13

0211206128
ref: 13
02112-06127

SCREW 6X12

€ 2.00

14

4741045110
ref: 14

HOLDER COMP,ELECTRONIC PARTS

€ 0.00

15

3341034210
ref: 15
33410-31311

COIL ASSEMBLY,IGNITION

€ 182.00

16

0831011068
ref: 16
08310-00067

NUT

€ 2.50

17

0940306307
ref: 17

CLAMP

€ 4.50

18

3351045010
ref: 18

CAP ASSY,SPARK PLUG

€ 23.00

19

3351043010
ref: 19

CAP,SPARK PLUG

€ 11.50

20

3354169010
ref: 20

SEAL,SPARK PLUG

€ 5.00

21

3354298000
ref: 21
33542-38B00

SEAL,SPARK PLU

€ 4.50
