CRANKSHAFT
GS1100GK 1982 (Z) USA (E03)

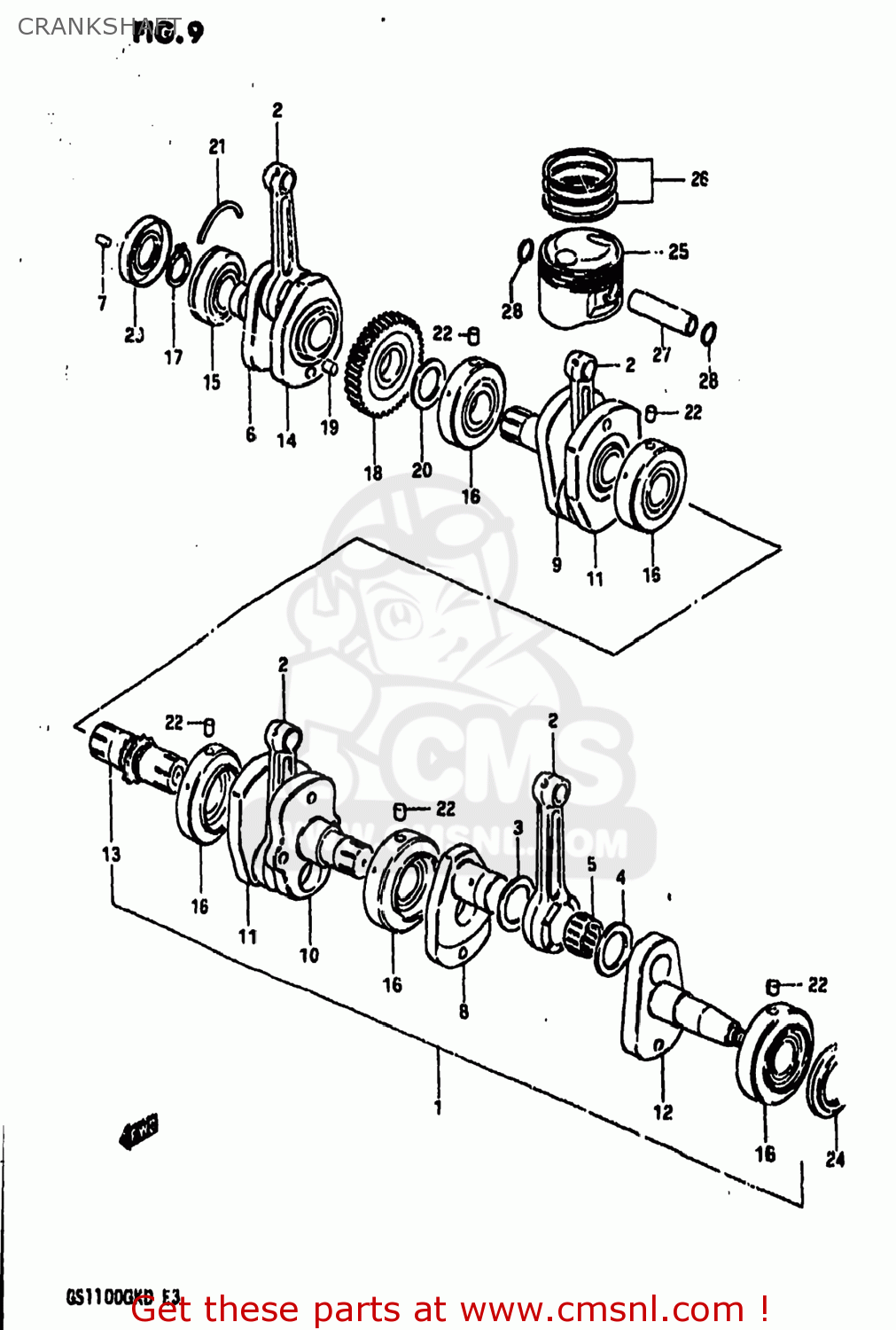

Crankshaft diagram GS1100GK 1982 (Z) USA (E03)
CRANKSHAFT GS1100GK 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1220049401
ref: 1
12200-49402
CRANKSHAFT ASSEMBLY
€ 2,245.50
2
1216149400
ref: 2
ROD,CONNECTING
€ 92.50
3
0916031002
ref: 3
WASHER(31X48.5X1)
€ 7.00
4
0916031003
ref: 4
WASHER(31X48.5X2)
€ 11.50
5
0926331005
ref: 5
09263-31004
BEARING
€ 53.00
6
1222049202
ref: 6
CRANKSHAFT,RIGHT
€ 153.00
7
0422104089
ref: 7
PIN
€ 1.50
8
1223049201
ref: 8
12230-49202
WEB,CRANK
€ 218.00
9
1224149400
ref: 9
CRANKSHAFT,MIDDLE,RIGHT
€ 0.00
10
1227149400
ref: 10
12241-49203
CRANKSHAFT,MIDDLE,RIGHT
€ 153.00
11
1225049201
ref: 11
12250-49202
WEB,CRANK,MIDDLE
€ 153.00
12
1226149302
ref: 12
CRANKSHAFT,LEFT
€ 216.00
13
1228149200
ref: 13
SHAFT,TIMING CHAIN DRIVE
€ 93.50
14
1223149400
ref: 14
WEB,CRANK,RIGHT
€ 0.00
15
0926230033
ref: 15
BEARING(30X72X19)
€ 47.00
16
0926432005
ref: 16
09264-32009
BEARING
€ 138.00
17
0833111308
ref: 17
08331-3130A
CIRCLIP,30MM
€ 3.00
18
2111049010
ref: 18
GEAR,PRIMARY DRIVE
€ 0.00
19
0422108129
ref: 19
PIN
€ 2.00
20
0916032008
ref: 20
WASHER
€ 0.00
21
0939072004
ref: 21
C RING
€ 3.00
22
0422107129
ref: 22
PIN
€ 1.50
23
0928330021
ref: 23
SEAL,OIL(30X72X11)
€ 22.00
24
0928948002
ref: 24
SEAL,OIL(47.3X60X6.5)
€ 12.00
25-1
1211149400
ref: 25-1
12111-49403
PISTON
€ 71.00
25-2
1211149403
ref: 25-2
PISTON (72.00MM)
€ 71.00
25-3
1211149400050
ref: 25-3
12103-49841-050
PISTON
€ 109.50
25-4
1211149403050
ref: 25-4
12103-49841-050
PISTON
€ 109.50
25-5
1211149400100
ref: 25-5
12103-49841-100
PISTON
€ 134.50
25-6
1211149403100
ref: 25-6
12103-49841-100
PISTON
€ 134.50
26-1
1214049220
ref: 26-1
12140-49270
RING SET,PISTON
€ 67.00
26-2
1214049220050
ref: 26-2
12140-49270-050
RING SET,PISTON (OS:0.5)
€ 59.00
26-3
1214049220100
ref: 26-3
12140-49221-100
RING SET,PISTON (OS:1.0)
€ 38.50
27-1
1215149400
ref: 27-1
12151-37F00
PIN,PISTON
€ 13.00
27-2
1215149401
ref: 27-2
12151-37F00
PIN,PISTON
€ 13.00
28
0938118002
ref: 28
CIRCLIP
€ 1.50
