STAND

GS1100GK 1982 (Z) USA (E03)

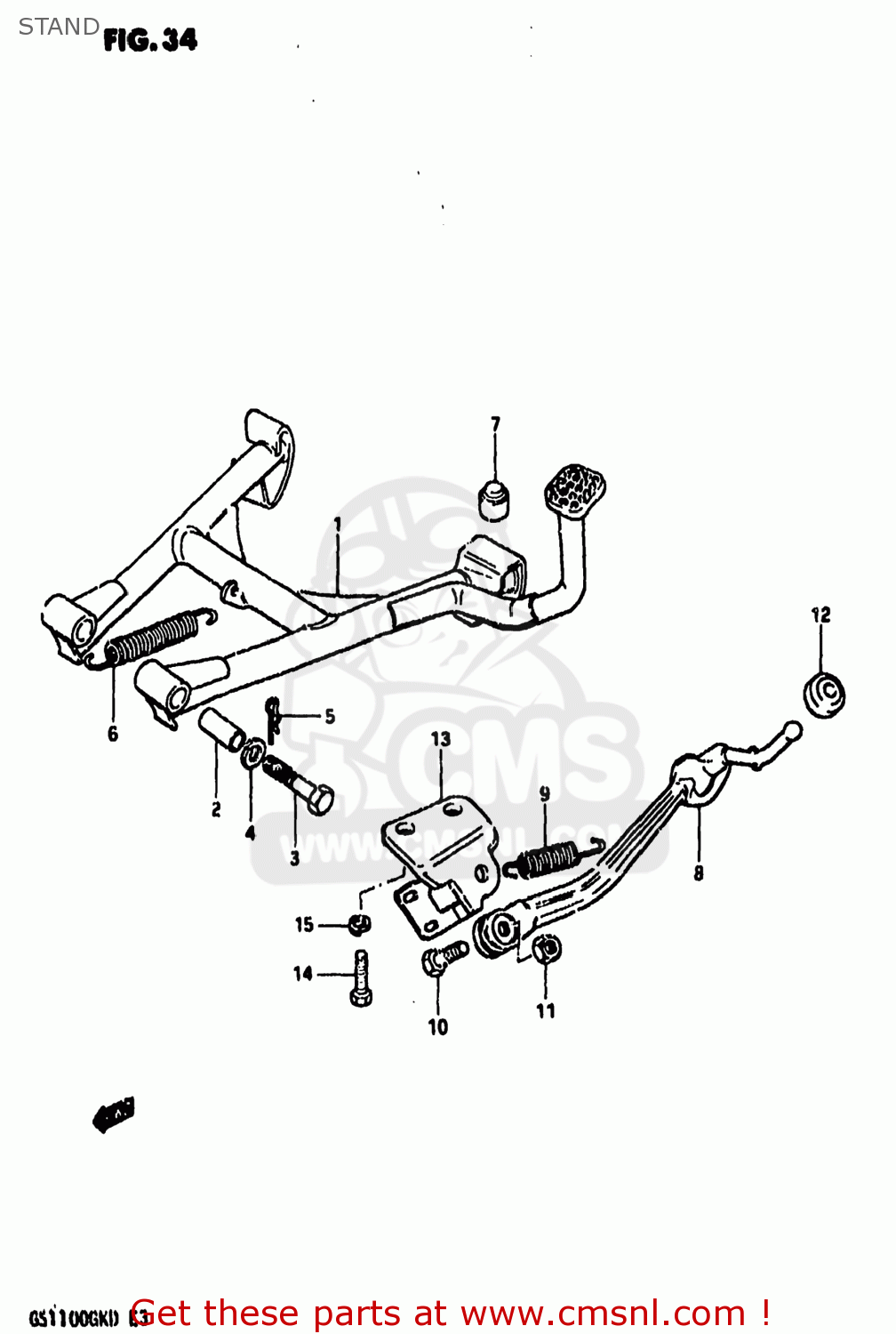

Stand diagram GS1100GK 1982 (Z) USA (E03)

STAND GS1100GK 1982 (Z) USA (E03)

STAND GS1100GK 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4210049420
ref: 1

STAND,CENTER

€ 71.50

2

0918010040
ref: 2

SPACER(10X16X38.8)

€ 3.00

3

0910110018
ref: 3
09101-10030

BOLT

€ 5.50

4

0832121108
ref: 4
08321-01107

LOCK WASHER

€ 2.00

5

0938510001
ref: 5
09385-10005

CLIP

€ 1.50

6

0944320001
ref: 6
09443-20001-XC0

SPRING

€ 11.00

7

0932110001
ref: 7

CUSHION

€ 2.50

8

4231049450
ref: 8

STAND,SIDE

€ 72.50

9

0944317005
ref: 9
09443-17008-XC0

SPRING

€ 11.50

10

0910010187
ref: 10

BOLT(10X34)

€ 4.50

11

0914010024
ref: 11

NUT

€ 1.50

12

0932007001
ref: 12

CUSHION

€ 4.00

13

4233049450
ref: 13

BRACKET,SIDE STAND

€ 0.00

14

0910010007
ref: 14
09100-10287

BOLT

€ 4.50

15

0832121108
ref: 15
08321-01107

LOCK WASHER

€ 2.00
