SEAT
GS1100GK 1982 (Z) USA (E03)

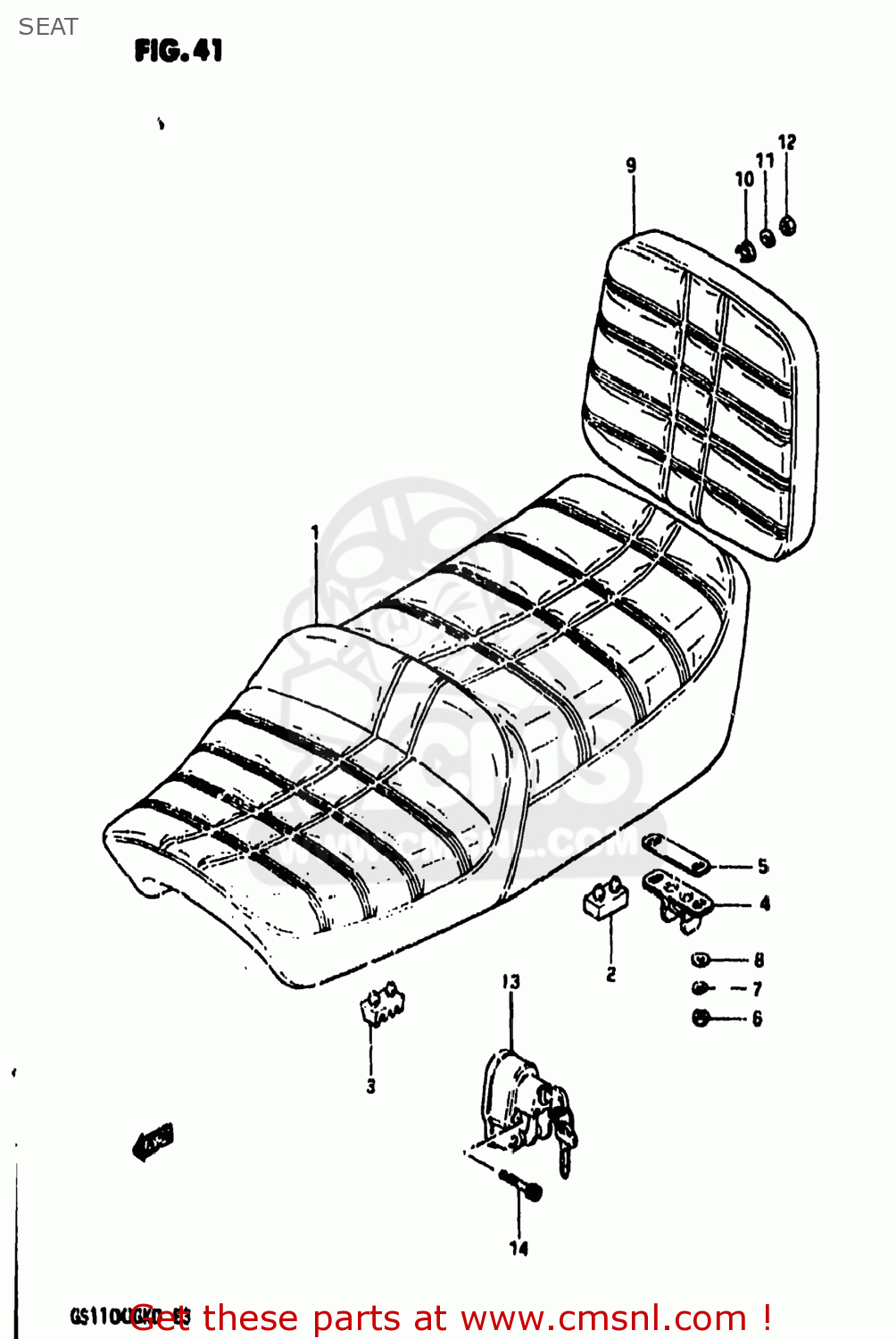

Seat diagram GS1100GK 1982 (Z) USA (E03)
SEAT GS1100GK 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
451004945047T
ref: 1-1
45100-49450-48H
SEAT ASSEMBLY
€ 0.00
1-2
451004945091Z
ref: 1-2
SEAT ASSEMBLY
€ 0.00
2
0932108012
ref: 2
CUSHION(40X23X12.7)
€ 4.50
3
4514945330
ref: 3
CUSHION,SUPPORT(50X25X32)
€ 2.00
4
4521044101
ref: 4
STRIKER,SEAT LOCK
€ 32.50
5
4521744100
ref: 5
SHIM,SEAT LOCK STRIKER
€ 4.50
6
0831022068
ref: 6
08310-00067
NUT 6MM
€ 2.50
7
0832121068
ref: 7
08321-01067
LOCK WASHER
€ 2.50
8
0832221068
ref: 8
08322-01067
WASHER
€ 2.00
9-1
4535049451
ref: 9-1
45350-49451-48H
PAD ASSEMBLY
€ 91.00
9-2
453504945191Z
ref: 9-2
45350-49451-48H
PAD ASSEMBLY
€ 91.00
10
0832221065
ref: 10
08322-0106B
WASHER
€ 2.00
11
0832121065
ref: 11
08321-0106A
LOCK WASHER
€ 2.00
12
0831311065
ref: 12
08313-1006A
NUT 6MM
€ 2.00
13
9570034210
ref: 13
LOCK ASSY,HELMET
€ 59.00
14
0910605008
ref: 14
07130-0525B
BOLT 5X25
€ 2.00
