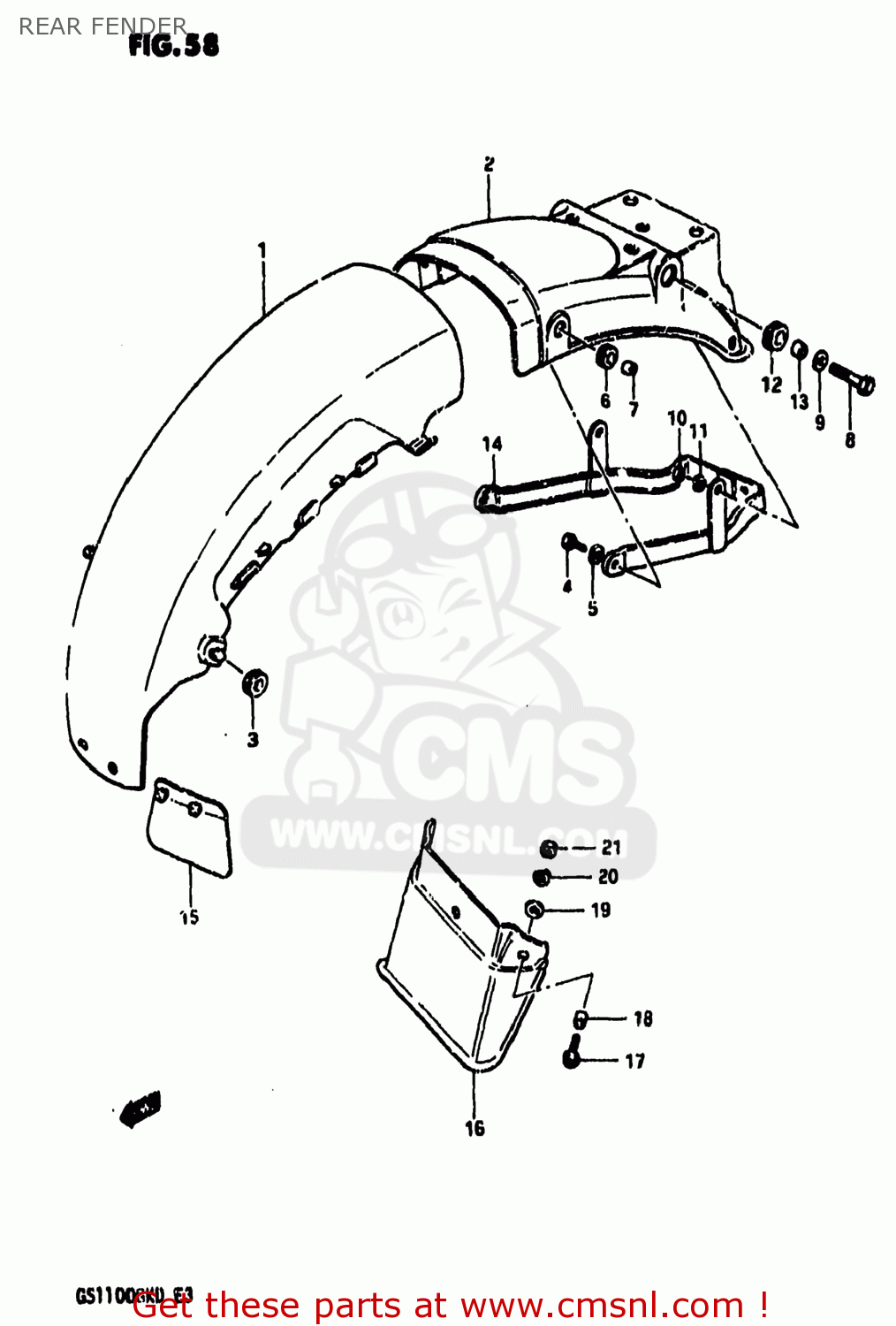

REAR FENDER

ref

part #

description

quantity

1-1

6311249003
ref: 1-1
63112-49004

FENDER,REAR

€ 82.50

1-2

6311249004
ref: 1-2

BODY,RR FENDER FR

€ 82.50

2-1

6311349410291
ref: 2-1
63113-49440-291

FENDER,REAR

€ 85.00

2-2

6311349430291
ref: 2-2
63113-49440-291

FENDER,REAR

€ 85.00

3

0932008013
ref: 3

CUSHION

€ 4.00

4

0110706168
ref: 4
01500-06167

BOLT, UPPER

€ 3.00

5

0832121068
ref: 5
08321-01067

LOCK WASHER

€ 2.50

6

0932008007
ref: 6
09320-08021

CUSHION

€ 4.00

7

0916006038
ref: 7
09160-06077

WASHER

€ 2.00

8

0110708408
ref: 8
01500-0840A

BOLT 8X40

€ 3.00

9

0832211088
ref: 9
08322-01087

WASHER

€ 2.00

10

0831012088
ref: 10
08310-00087

NUT

€ 2.00

11

0832121088
ref: 11
08321-01087

LOCK WASHER

€ 2.00

12

0932012011
ref: 12

CUSHION

€ 3.00

13

0918008021
ref: 13
09180-08188

SPACER (8.2X12X7.5)

€ 3.00

14

6312049400
ref: 14

REINFORCEMENT,REAR FENDER

€ 30.50

15

6341131900
ref: 15

GUIDE,RR FENDER MUD

€ 8.00

16

6331149400
ref: 16

EXTENSION,REAR FENDER

€ 0.00

17

0912506009
ref: 17
09125-06073

SCREW (6X15)

€ 3.00

18

0918006001
ref: 18

SPACER(6.2X8.3X5.7)

€ 2.00

19

0916006028
ref: 19

WASHER(6.5X18X1)

€ 1.50

20

0832121068
ref: 20
08321-01067

LOCK WASHER

€ 2.50

21

0831011068
ref: 21
08310-00067

NUT

€ 2.50
