STARTING MOTOR
GS1100GK 1982 (Z) USA (E03)

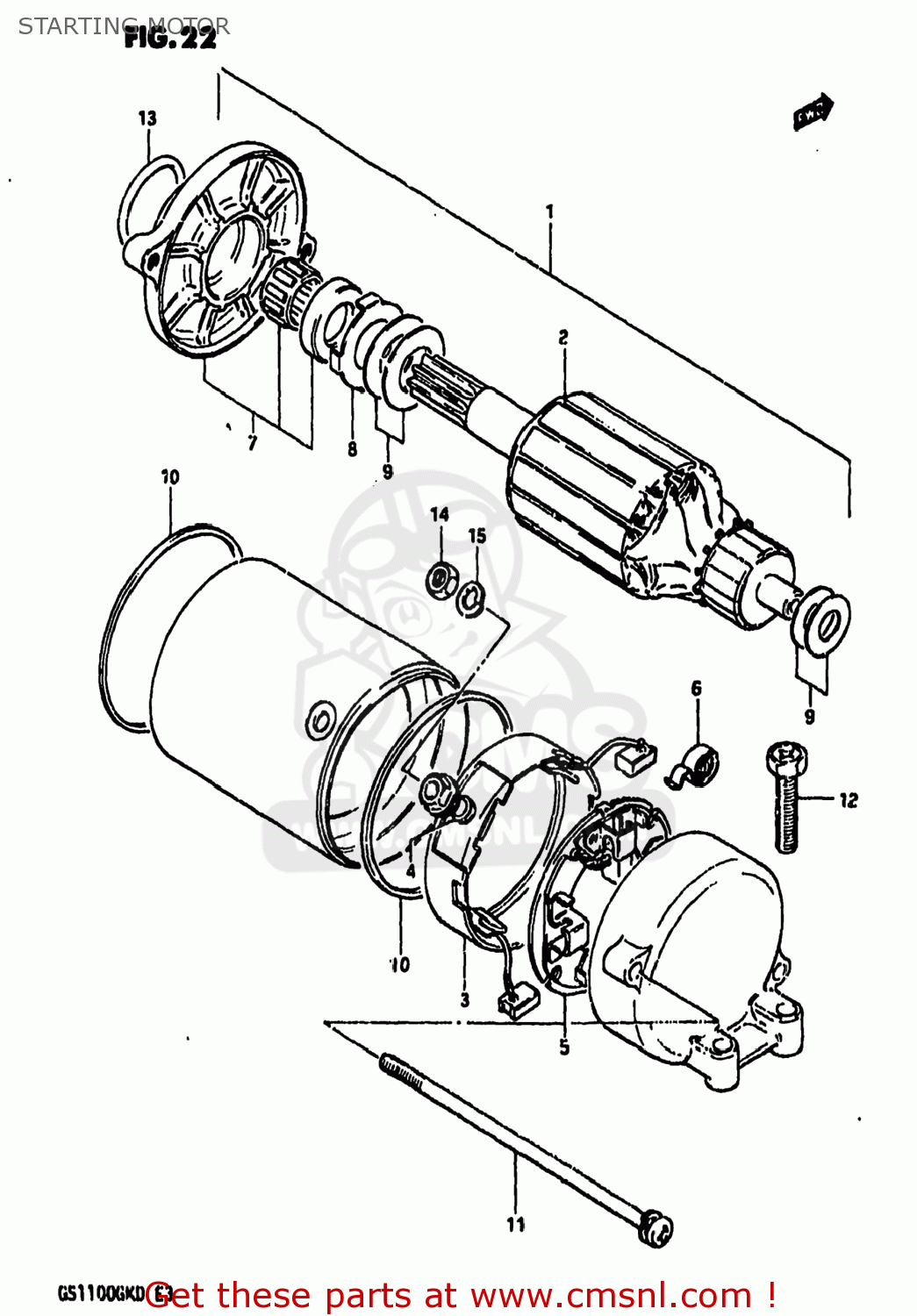

Starting motor diagram GS1100GK 1982 (Z) USA (E03)
STARTING MOTOR GS1100GK 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3110049040
ref: 1
31100-49050
MOTOR ASSEMBLY,STARTING
€ 873.50
2
3131149040
ref: 2
ARMATURE
€ 118.50
3
3113049040
ref: 3
31130-06B00
BRUSH TERMINAL SET (+)
€ 54.00
4
3114349040
ref: 4
O RING
€ 3.00
5
3113249040
ref: 5
31132-06B00
HOLDER,BRUSH
€ 35.50
6
3113549040
ref: 6
SPRING,BRUSH
€ 5.00
7
3110049810
ref: 7
HOUSING SET,STARTING MOTOR
€ 80.50
8
3136049240
ref: 8
31170-31300
SHIM SET
€ 10.50
9
3136049040
ref: 9
31170-31300
SHIM SET
€ 10.50
10
3126449040
ref: 10
SEAL,RING
€ 7.50
11
3128149040
ref: 11
BOLT,STARTING MOTOR HOUSING
€ 7.00
12
0912806024
ref: 12
09103-06212
SCREW (6X25)
€ 2.50
13
0928024003
ref: 13
O RING(D:3,ID:24.5)
€ 2.00
14
0831022068
ref: 14
08310-00067
NUT 6MM
€ 2.50
15
0832121068
ref: 15
08321-01067
LOCK WASHER
€ 2.50
