REAR BRAKE
GS1100GK 1982 (Z) USA (E03)

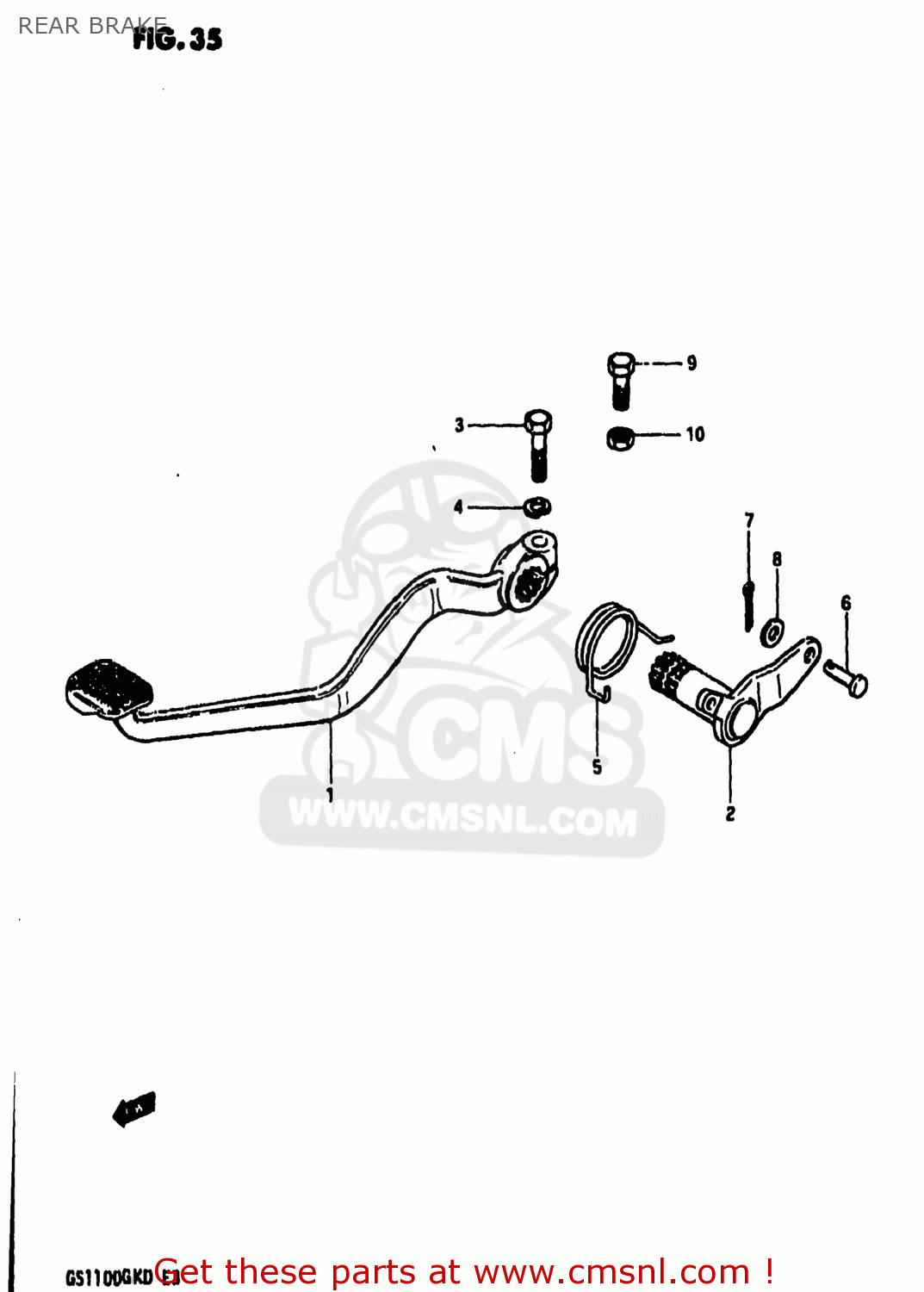

Rear brake diagram GS1100GK 1982 (Z) USA (E03)
REAR BRAKE GS1100GK 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4311049450
ref: 1
PEDAL,BRAKE
€ 76.50
2
4312045350
ref: 2
ARM,BRAKE PEDAL ROD
€ 30.50
3
0110708358
ref: 3
01500-0835B
BOLT
€ 3.50
4
0832121088
ref: 4
08321-01087
LOCK WASHER
€ 2.00
5
0944837017
ref: 5
SPRING
€ 4.00
6
0920006029
ref: 6
PIN
€ 1.50
7
0411120158
ref: 7
04111-2015A
PIN
€ 1.50
8
0832221068
ref: 8
08322-01067
WASHER
€ 2.00
9
0110706208
ref: 9
01500-06207
BOLT
€ 2.00
10
0831011068
ref: 10
08310-00067
NUT
€ 2.50
