CYLINDER HEAD COVER (GS1100GKJ)
GS1100GK 1982 (Z) USA (E03)

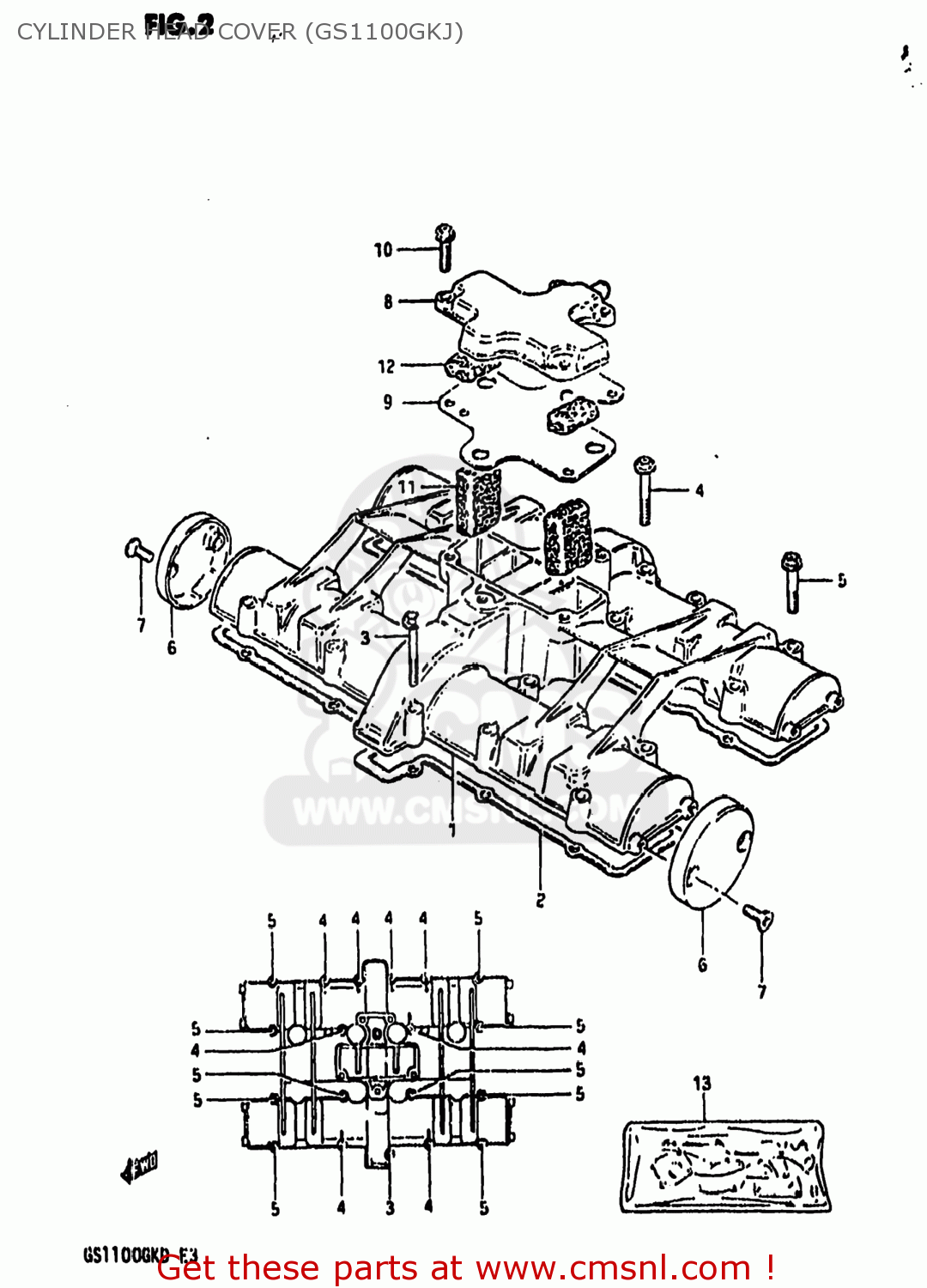

Cylinder head cover (gs1100gkj) diagram GS1100GK 1982 (Z) USA (E03)
CYLINDER HEAD COVER (GS1100GKJ) GS1100GK 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1117149030
ref: 1
COVER,CYLINDER HEAD
€ 146.50
2
1117349021
ref: 2
11173-49022
GASKET,CYLINDER HEAD COVER (MCA)
€ 49.00
3
0151706455
ref: 3
01550-0645A
BOLT (6X45)
€ 2.50
4
0151706404
ref: 4
01550-0640A
BOLT
€ 2.00
5
0151706355
ref: 5
01550-0635A
BOLT
€ 2.50
6
1117449000
ref: 6
CAP,CYLINDER HEAD COVER
€ 38.00
7
0912705013
ref: 7
SCREW(5X12)
€ 2.50
8
1117647042
ref: 8
COVER,BREATHER
€ 32.50
9
1117747001
ref: 9
11177-47001-H17
GASKET (MCA)
€ 19.50
10
0151706205
ref: 10
01550-0620A
BOLT
€ 2.50
11
1118645000
ref: 11
11186-45001
COVER,BREATHER
€ 5.50
12
1118745000
ref: 12
11187-45001
SEPARATOR,OIL BREATHER
€ 6.50
13
1140149872
ref: 13
11402-49870
GASKET SET
€ 248.50
