GENERATOR
GS1100GK 1982 (Z) USA (E03)

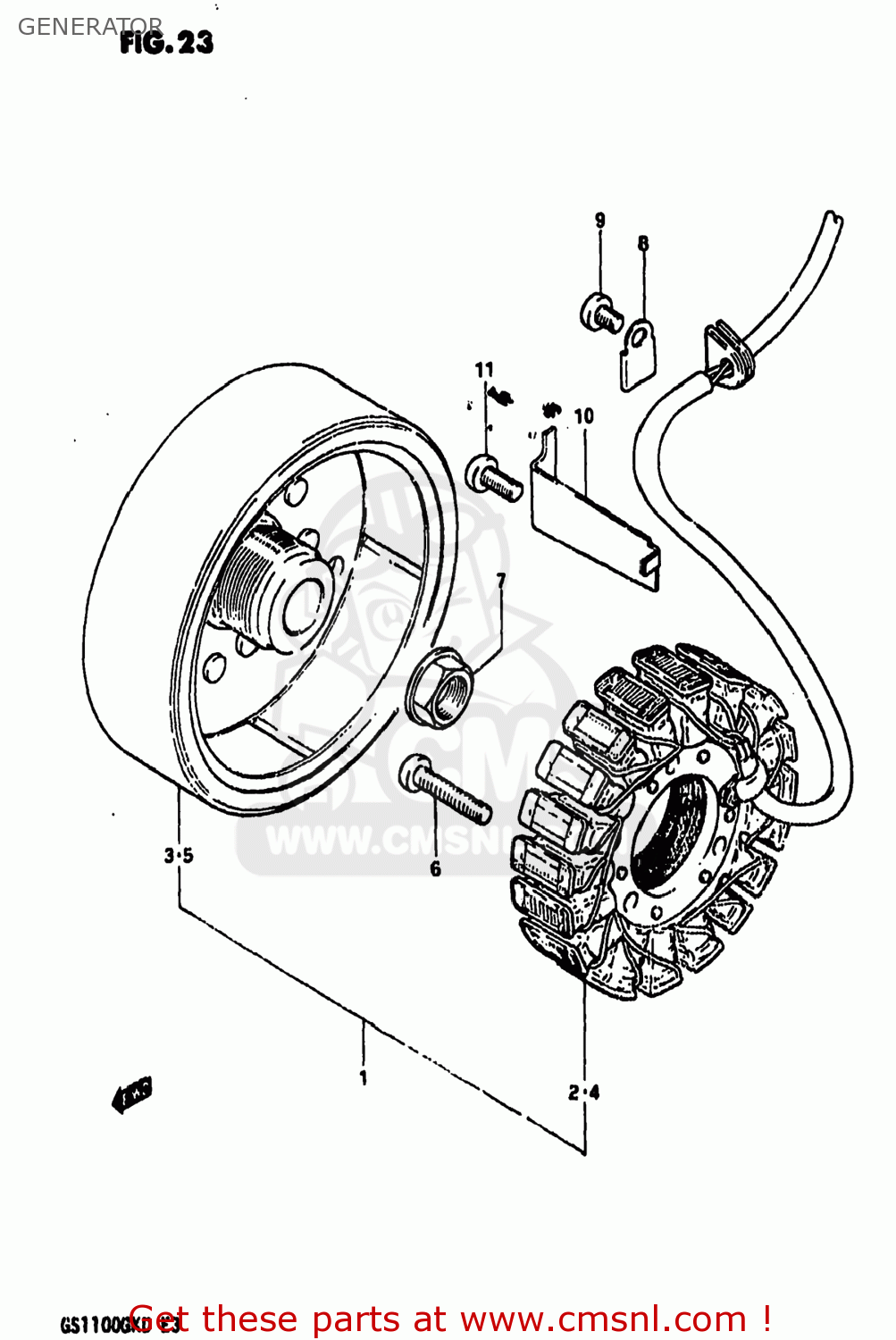

Generator diagram GS1100GK 1982 (Z) USA (E03)
GENERATOR GS1100GK 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3140049410
ref: 1
31401-09300
GENERATOR ASSEMBLY
€ 405.50
2
3140149410
ref: 2
31401-09300
STATOR ASSEMBLY
€ 405.50
3
3140249410
ref: 3
31402-49420
ROTOR ASSEMBLY
€ 339.50
4
3140149420
ref: 4
31401-09300
STATOR ASSEMBLY
€ 405.50
5
3140249420
ref: 5
ROTOR ASSEMBLY
€ 339.50
6
0211206308
ref: 6
02112-06307
SCREW 6X30
€ 2.50
7
3179249200
ref: 7
NUT,GENERATOR ROTOR
€ 10.00
8
3149745000
ref: 8
CLAMP,GENERATOR LEAD WIRE
€ 1.50
9
0211205088
ref: 9
02112-05087
SCREW
€ 2.00
10
3149845000
ref: 10
CLAMP,GENERATOR LEAD WIRE
€ 2.00
11
0211206108
ref: 11
02112-06107
SCREW
€ 1.50
