FOOTREST (GS1100GK2/GKD)
GS1100GK 1982 (Z) USA (E03)

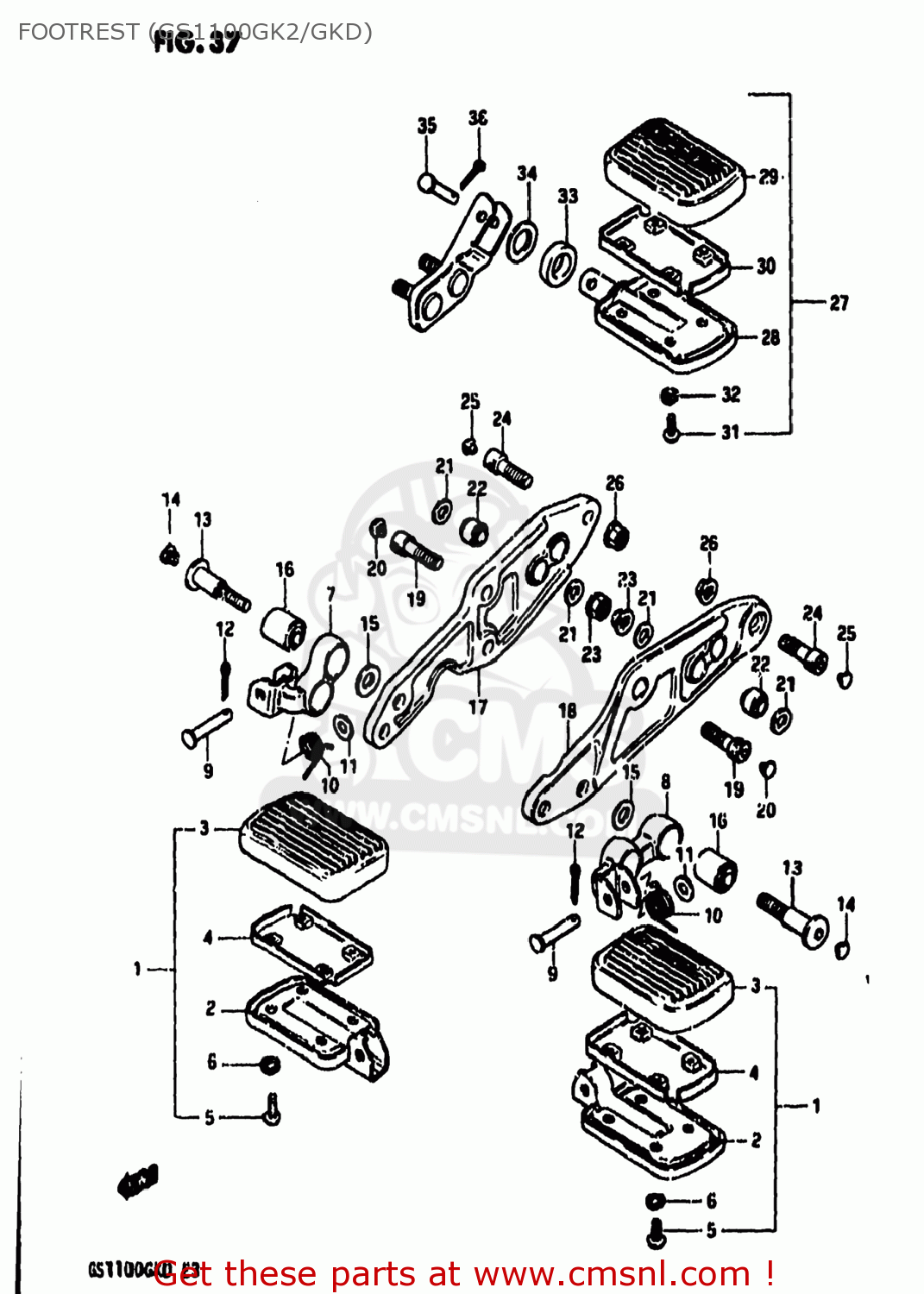

Footrest (gs1100gk2/gkd) diagram GS1100GK 1982 (Z) USA (E03)
FOOTREST (GS1100GK2/GKD) GS1100GK 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4350149460
ref: 1
FOOTREST ASSEMBLY,FRONT
€ 79.00
2
4354049460
ref: 2
HOLDER,FRONT FOOTREST
€ 0.00
3
4355149460
ref: 3
RUBBER,FOOTREST
€ 9.50
4
4358049460
ref: 4
PLATE FOOTREST
€ 0.00
5
0912505102
ref: 5
SCREW(5X14)
€ 2.50
6
0832121058
ref: 6
08321-0105A
LOCK WASHER
€ 2.00
7
4351049460
ref: 7
BAR,FRONT FOOTREST,RIGHT
€ 0.00
8
4352049460
ref: 8
BAR,FRONT FOOTREST,LEFT
€ 0.00
9
0920008002
ref: 9
PIN
€ 2.00
10
0944814012
ref: 10
SPRING
€ 3.00
11
0832211088
ref: 11
08322-01087
WASHER
€ 2.00
12
0411120208
ref: 12
04111-2020A
PIN 20X20
€ 1.50
13
0910610020
ref: 13
BOLT
€ 0.00
14
4357534500
ref: 14
CAP
€ 1.50
15
0916010075
ref: 15
09160-10125
WASHER (10.1X22X3.2)
€ 2.50
16
0931910033
ref: 16
BUSH(10.2X25X19)
€ 6.50
17
4381149450
ref: 17
BRACKET,MUFFLER,RIGHT
€ 84.00
18
4382149450
ref: 18
BRACKET,MUFFLER,LEFT
€ 84.00
19
0910610003
ref: 19
07130-10257
BOLT
€ 3.00
20
4357534500
ref: 20
CAP
€ 1.50
21
0916010058
ref: 21
09160-10005
WASHER
€ 2.00
22
0931910008
ref: 22
BUSH
€ 8.00
23
0831616108
ref: 23
08316-10107
NUT
€ 2.00
24
0910610006
ref: 24
07130-10307
BOLT
€ 4.50
25
4357534500
ref: 25
CAP
€ 1.50
26
0831616108
ref: 26
08316-10107
NUT
€ 2.00
27-1
4360049460
ref: 27-1
FOOTREST ASSEMBLY,REAR,RIGHT
€ 0.00
27-2
4370049460
ref: 27-2
FOOTREST ASSEMBLY,PILLION
€ 0.00
28-1
4361049460
ref: 28-1
BAR,REAR FOOTREST
€ 0.00
28-2
4362049460
ref: 28-2
BAR,REAR FOOTREST
€ 0.00
29
4355149460
ref: 29
RUBBER,FOOTREST
€ 9.50
30
4358049460
ref: 30
PLATE FOOTREST
€ 0.00
31
0912505102
ref: 31
SCREW(5X14)
€ 2.50
32
0832121053
ref: 32
08321-0105A
LOCK WASHER
€ 2.50
33
0932020006
ref: 33
CUSHION
€ 0.00
34
0916019016
ref: 34
09160-19024
WASHER(19.5X32X2)
€ 2.00
35
0411120208
ref: 35
04111-2020A
PIN 20X20
€ 1.50
