TRAVEL TRUNK (GS1100GKZ)
GS1100GK 1982 (Z) USA (E03)

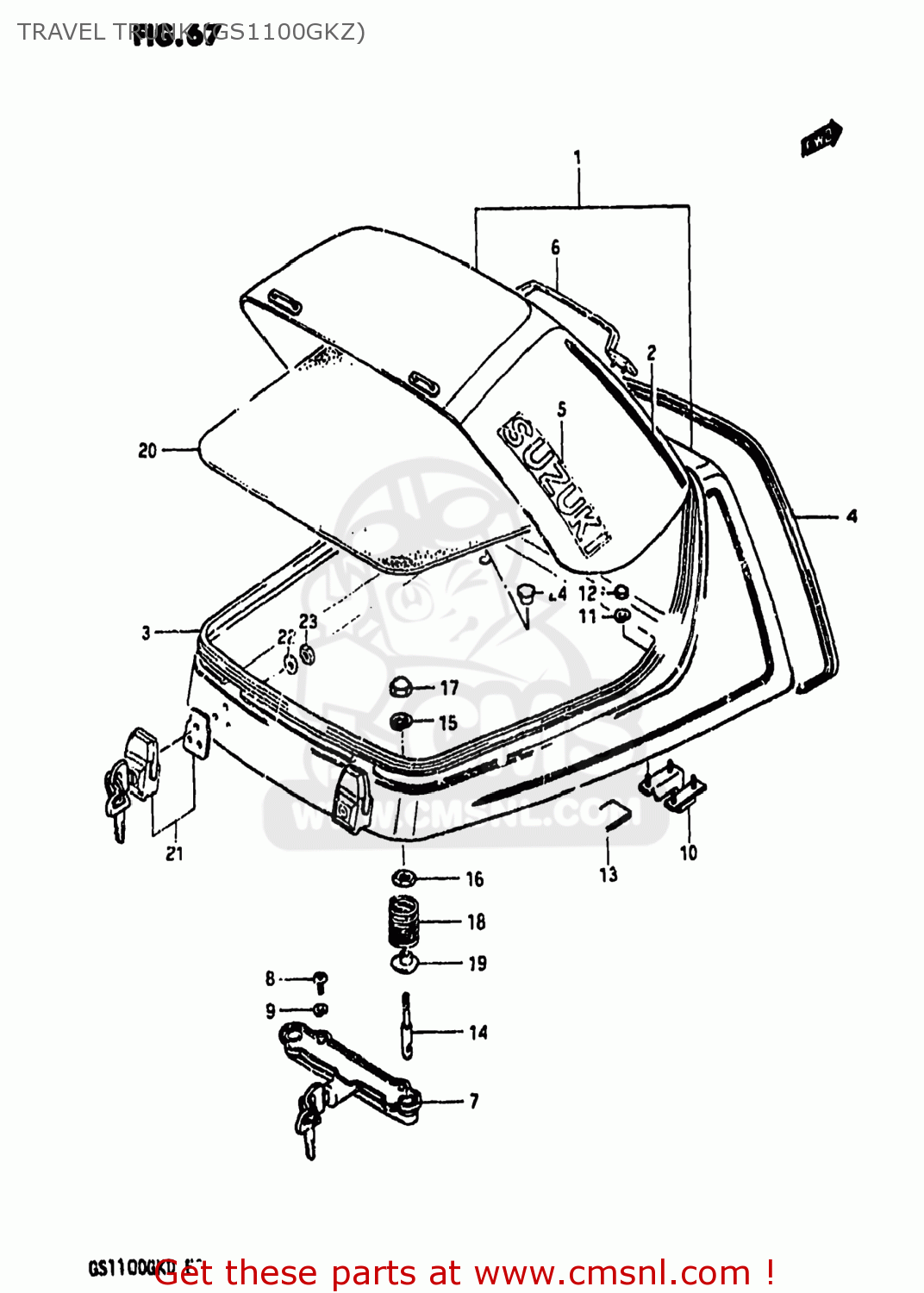

Travel trunk (gs1100gkz) diagram GS1100GK 1982 (Z) USA (E03)
TRAVEL TRUNK (GS1100GKZ) GS1100GK 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
9310049810019
ref: 1-1
93100-49881-019
TRAVEL TRUNK (BLACK)
€ 248.50
1-2
931004981014A
ref: 1-2
93100-49881-14A
TRUNKSET,TRAVEL (MAROON)
€ 248.50
2
6828049400764
ref: 2
TAPE SET,COWLING BODY
€ 0.00
3
9311349400
ref: 3
SEAL,TRAVEL TRUNK
€ 45.00
4
9311449400
ref: 4
MOLDING,TRAVEL TRUNK
€ 27.00
5
6828549400
ref: 5
68278-49400
EMBLEM
€ 18.00
6
9314349400
ref: 6
GRIP TRAVEL TRUNK
€ 0.00
7
9341049410KEY
ref: 7
LOCK,TRAVEL TRANK
€ 51.50
8
0211206128
ref: 8
02112-06127
SCREW 6X12
€ 2.00
9
0832121068
ref: 9
08321-01067
LOCK WASHER
€ 2.50
10
9313049400
ref: 10
HOOK COMP TRAV TRUNK
€ 6.00
11
0832121058
ref: 11
08321-0105A
LOCK WASHER
€ 2.00
12
0831311058
ref: 12
08313-1005A
NUT
€ 1.50
13
9311549400
ref: 13
93115-49401
CUSHION TRAVEL TRUNK
€ 2.50
14
9315149400
ref: 14
LOCK BOSS TRAV TRUNK
€ 8.00
15
0832131088
ref: 15
08321-01087
WASHER,LOCK,8.
€ 2.00
16
0831022088
ref: 16
08310-00087
NUT 8MM
€ 2.00
17
0831311088
ref: 17
08313-10087
NUT
€ 2.50
18
9315349400
ref: 18
SPRING,TRAVEL TRUNK
€ 2.50
19
9315249400
ref: 19
GUIDE,TRAVEL TRUNK SPRING
€ 3.00
20
9318149400
ref: 20
93181-49401
CUSHION TRAVEL TRUNK
€ 26.00
21
9331049400KEY
ref: 21
LOCK,TRANK LID
€ 64.00
22
0832221048
ref: 22
08322-01047
WASHER
€ 2.00
23
0831311048
ref: 23
08313-11047
NUT 4MM
€ 2.00
24
0925008001
ref: 24
PLUG(OD:14)
€ 1.00
