BUMPER
GS1100GK 1982 (Z) USA (E03)

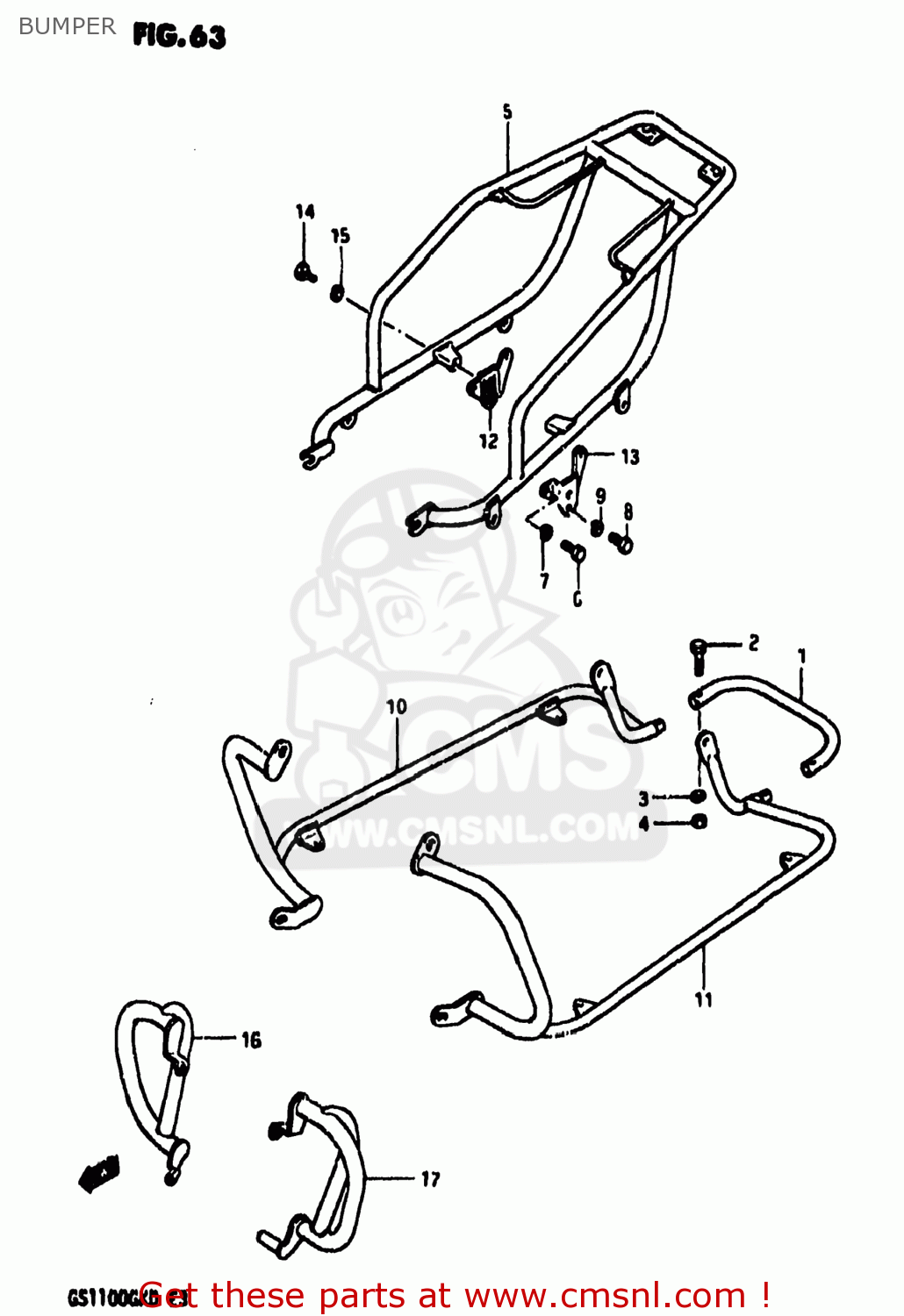

Bumper diagram GS1100GK 1982 (Z) USA (E03)
BUMPER GS1100GK 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
9471049400
ref: 1
BUMPER,REAR
€ 58.50
2
0120406307
ref: 2
BOLT
€ 0.50
3
0832121068
ref: 3
08321-01067
LOCK WASHER
€ 2.50
4
0831011068
ref: 4
08310-00067
NUT
€ 2.50
5-1
9484049400
ref: 5-1
94840-49401
CARRIER TRAVEL TRUNK
€ 0.00
5-2
9484049410
ref: 5-2
CARRIER TRAVEL TRUNK
€ 0.00
6
0110708258
ref: 6
01500-08257
BOLT
€ 2.50
7
0832121088
ref: 7
08321-01087
LOCK WASHER
€ 2.00
8
0110708168
ref: 8
01500-0816B
BOLT
€ 2.00
9
0832121088
ref: 9
08321-01087
LOCK WASHER
€ 2.00
10-1
9543049400
ref: 10-1
95430-49401
CARRIER,REAR SIDE,RIGHT
€ 257.50
10-2
9543049440
ref: 10-2
CARRIER,REAR SIDE,RIGHT
€ 265.50
11-1
9553049400
ref: 11-1
95530-49401
CARRIER,REAR SIDE BAG,LEFT
€ 282.00
11-2
9553049440
ref: 11-2
CARRIER,REAR SIDE,LEFT
€ 139.50
12
9485049400
ref: 12
BRKT COMP RR CARR R
€ 6.50
13
9486049400
ref: 13
BRKT COMP RR CARR L
€ 6.50
14
0110708168
ref: 14
01500-0816B
BOLT
€ 2.00
15
0832121088
ref: 15
08321-01087
LOCK WASHER
€ 2.00
16
9428049400
ref: 16
COVER COMP,ACCESSORY B
€ 78.50
17
9429049400
ref: 17
ACCESSORY BAR,CASE LEFT
€ 98.50
