CRANKCASE (GS1100GKZ/GK2)
GS1100GK 1982 (Z) USA (E03)

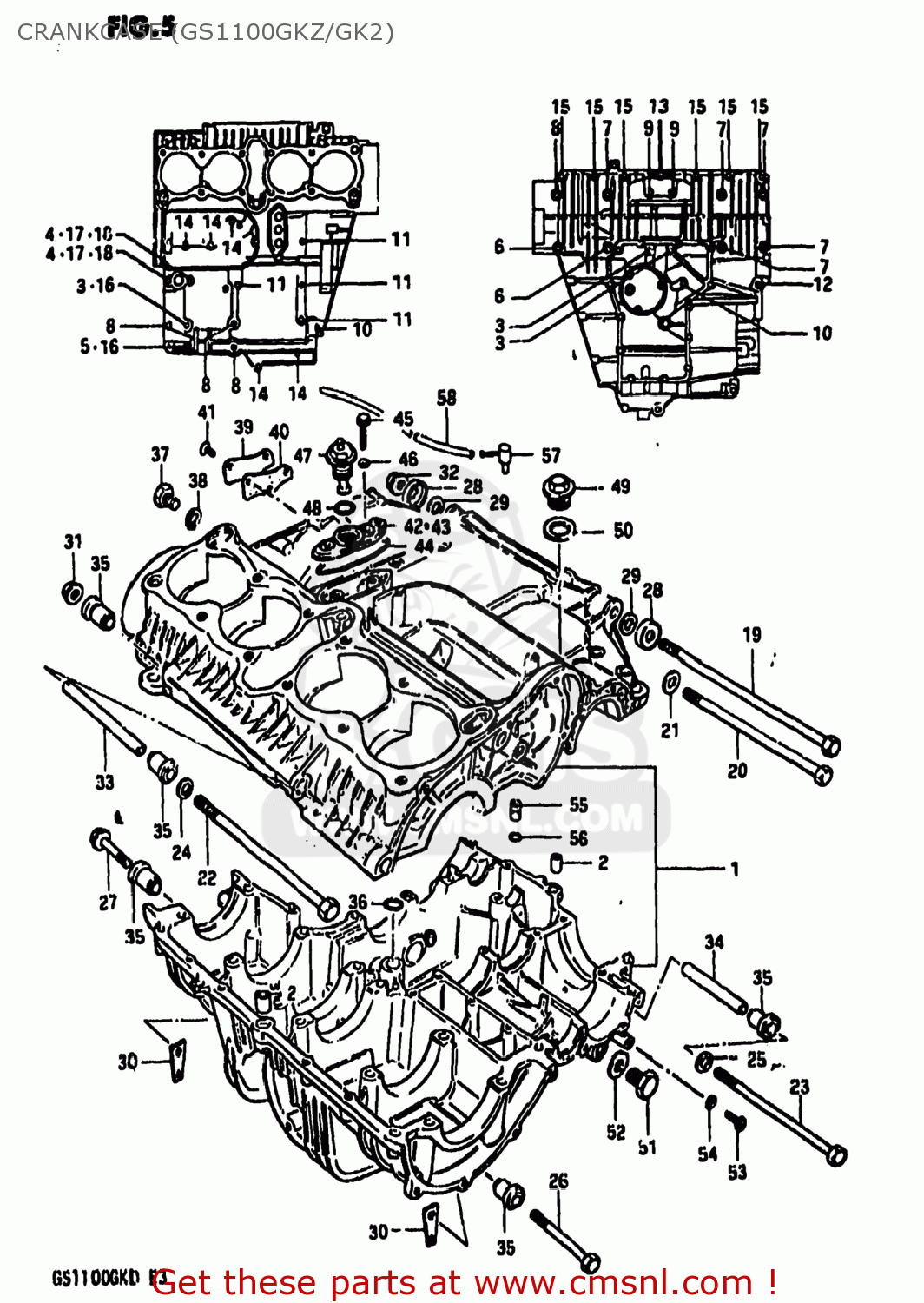

Crankcase (gs1100gkz/gk2) diagram GS1100GK 1982 (Z) USA (E03)
CRANKCASE (GS1100GKZ/GK2) GS1100GK 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130049850
ref: 1
11300-49852
CRANKCASE SET
€ 0.00
2
0920613001
ref: 2
04211-13189
PIN
€ 2.50
3
0910308020
ref: 3
09103-08106
BOLT
€ 8.00
4
0910308046
ref: 4
BOLT
€ 0.00
5
0910308023
ref: 5
09103-08097
BOLT
€ 3.00
6
0910308009
ref: 6
09103-08070
BOLT
€ 5.00
7
0151708908
ref: 7
01550-08907
BOLT 8X90
€ 3.50
8
0151708658
ref: 8
01550-08657
BOLT 8X65
€ 3.00
9
0151708608
ref: 9
01550-08607
BOLT
€ 3.50
10
0151706908
ref: 10
01550-06907
BOLT (6X90)
€ 2.00
11
0151706758
ref: 11
01550-06757
BOLT (6X75)
€ 2.50
12
0151706558
ref: 12
01550-06557
BOLT
€ 2.50
13
0151706508
ref: 13
01550-06507
BOLT ,6X50
€ 2.00
14
0151706458
ref: 14
01550-06457
BOLT,UNDER
€ 2.50
15
0151706358
ref: 15
01550-06357
BOLT 6X35
€ 2.50
16
0831616088
ref: 16
08316-10087
NUT
€ 2.50
17
0831311088
ref: 17
08313-10087
NUT
€ 2.50
18
0916808008
ref: 18
09168-08016
GASKET 8.2X14X1 (NAS)
€ 1.00
19
0910010185
ref: 19
BOLT
€ 0.00
20
0910010144
ref: 20
09100-10074
BOLT
€ 15.50
21
0832211105
ref: 21
08322-0110A
WASHER
€ 2.50
22
0910110010
ref: 22
09101-10010-XC0
BOLT 10X250
€ 49.50
23
0910010171
ref: 23
BOLT
€ 11.50
24
0832211108
ref: 24
08322-01107
WASHER
€ 2.50
25
0832211105
ref: 25
08322-0110A
WASHER
€ 2.50
26
0910310060
ref: 26
BOLT
€ 0.00
27
0151710558
ref: 27
01550-10557
BOLT 10X55
€ 3.00
28
0916910016
ref: 28
WASHER
€ 0.00
29
0916010005
ref: 29
WASHER(10.5X20X3.2)
€ 2.00
30
0915910038
ref: 30
NUT
€ 3.00
31
0831931108
ref: 31
NUT
€ 3.00
32
0831931105
ref: 32
08319-3110A
NUT 10MM
€ 3.00
33
0918010077
ref: 33
SPACER
€ 0.00
34
0918010078
ref: 34
SPACER
€ 2.50
35
0931910042
ref: 35
BUSH
€ 16.50
36
0928013001
ref: 36
O RING(D:3.2,ID:12.9)
€ 4.00
37
0924714012
ref: 37
09247-14026
PLUG (14X12)
€ 3.50
38
0916814004
ref: 38
GASKET(14X19.2X2) (NAS)
€ 2.50
39
1139445000
ref: 39
CAP,OIL GALLERY
€ 6.50
40
1149745000
ref: 40
11497-45000-H17
GASKET,OIL GALLERY (MCA)
€ 13.00
41
0212206168
ref: 41
02122-06167
SCREW
€ 2.00
42
1644545000
ref: 42
HOUSING,OIL PRESSURE SWITCH
€ 28.00
43
1644549000
ref: 43
HOUSING,OIL PRESSURE SWITCH
€ 23.50
44
1644845000
ref: 44
O RING,PRESSURE SWITCH HOUSING
€ 10.50
45
0151706258
ref: 45
01550-06257
BOLT
€ 2.50
46
0916806009
ref: 46
09168-06023
GASKET (NAS)
€ 2.00
47
3782045050
ref: 47
37820-45061
SWITCH ASSEMBLY
€ 30.00
48
0928019001
ref: 48
O RING(D:1.9,ID:18.8)
€ 1.50
49
0924720002
ref: 49
09248-20003
PLUG
€ 4.50
50
0916820004
ref: 50
09168-20003
GASKET
€ 1.50
51
0924714014
ref: 51
09247-14036
PLUG
€ 5.50
52
0916820004
ref: 52
09168-20003
GASKET
€ 1.50
53
0912806004
ref: 53
09128-06044
SCREW(6X10)
€ 1.50
54
0916806009
ref: 54
09168-06023
GASKET (NAS)
€ 2.00
55
0936405005
ref: 55
UNION
€ 3.00
56
0928003003
ref: 56
O RING(D:1.05,ID:3.1)
€ 2.50
57
2482145100
ref: 57
BPLUG,BEVEL GEAR BREATHER
€ 7.00
58
0934302009
ref: 58
09352-20503-600
HOSE
€ 12.00
