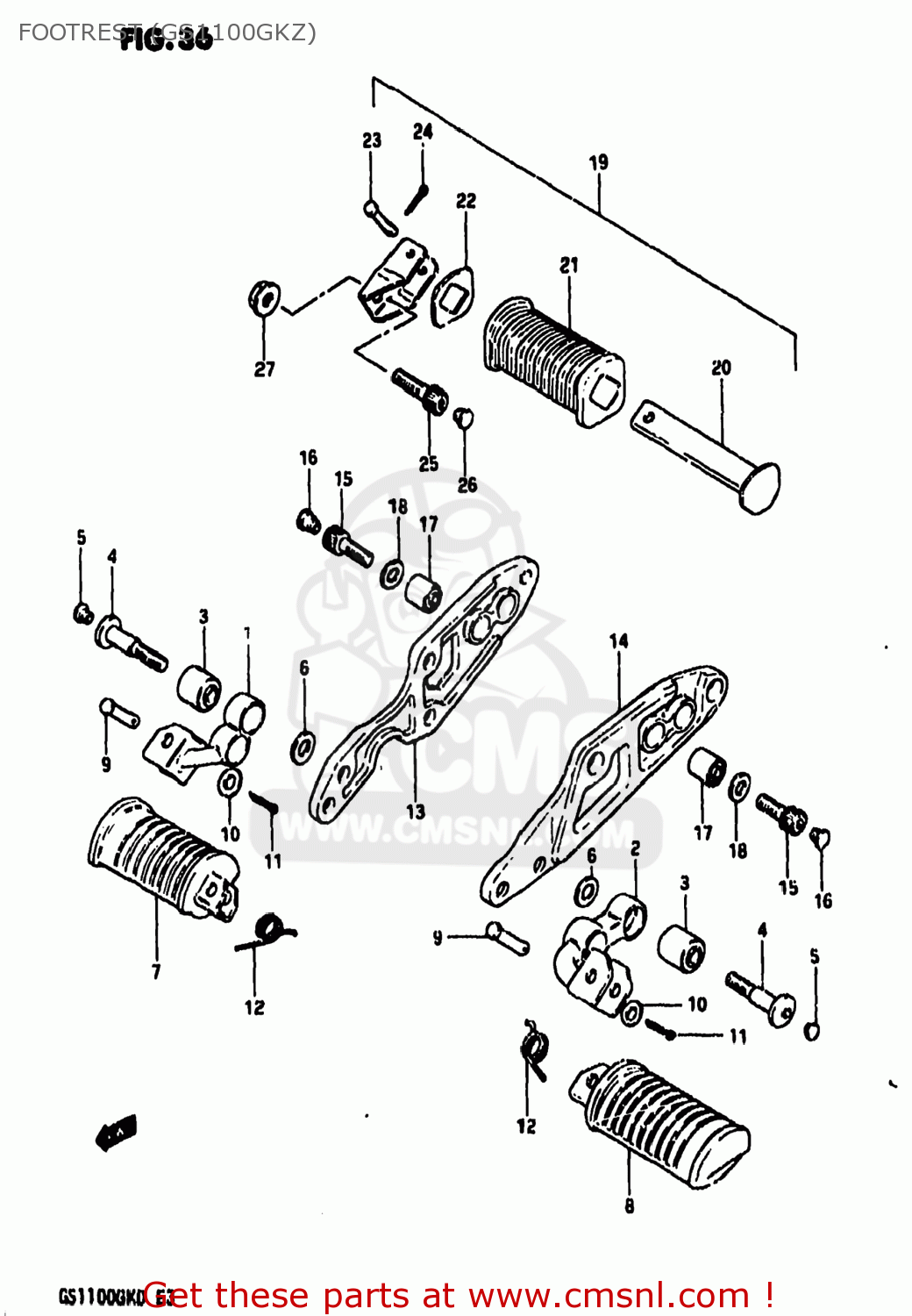

FOOTREST (GS1100GKZ)

ref

part #

description

quantity

1

4351049401
ref: 1

BAR,FRONT FOOTREST,RIGHT

€ 36.50

2

4352049401
ref: 2

BAR,FRONT FOOTREST,LEFT

€ 38.00

3

0931910008
ref: 3

BUSH

€ 8.00

4

0910610010
ref: 4

BOLT(10X50)

€ 44.00

5

4357534500
ref: 5

CAP

€ 1.50

6-1

0916010069
ref: 6-1
09160-10005

WASHER (10X18X3.2)

€ 2.00

6-2

0916010050
ref: 6-2
09160-10083

WASHER

€ 3.00

7

4355049450
ref: 7
43550-37301

RUBBER,FRONT FOOTREST

€ 22.50

8

4356049450
ref: 8
43560-37301

FOOTREST

€ 22.50

9

0920008002
ref: 9

PIN

€ 2.00

10

0832211088
ref: 10
08322-01087

WASHER

€ 2.00

11

0411120208
ref: 11
04111-2020A

PIN 20X20

€ 1.50

12

0944814012
ref: 12

SPRING

€ 3.00

13

4381149450
ref: 13

BRACKET,MUFFLER,RIGHT

€ 84.00

14

4382149450
ref: 14

BRACKET,MUFFLER,LEFT

€ 84.00

15

0910610003
ref: 15
07130-10257

BOLT

€ 3.00

16

4357534500
ref: 16

CAP

€ 1.50

17

0931910008
ref: 17

BUSH

€ 8.00

18

0916010058
ref: 18
09160-10005

WASHER

€ 2.00

19-1

4360049450
ref: 19-1
43600-49452

FOOTREST ASSEMBLY,REAR

€ 27.50

19-2

4370049450
ref: 19-2
43700-49452

FOOTREST ASSEMBLY,PILLION

€ 31.50

20-1

4361049450
ref: 20-1

BAR,REAR FOOTREST

€ 9.50

20-2

4362049450
ref: 20-2
43620-49451

BAR,REAR FOOTREST

€ 8.50

21

4361249400
ref: 21
43612-49402

RUBBER,REAR FOOTREST

€ 14.50

22

4363149400
ref: 22
43631-49401

WASHER,REAR FOOTREST RUBBER

€ 3.00

23

0920006010
ref: 23

PIN

€ 2.50

24

0411120208
ref: 24
04111-2020A

PIN 20X20

€ 1.50

25

0910610006
ref: 25
07130-10307

BOLT

€ 4.50

26

4357534500
ref: 26

CAP

€ 1.50

27

0831616108
ref: 27
08316-10107

NUT

€ 2.00
